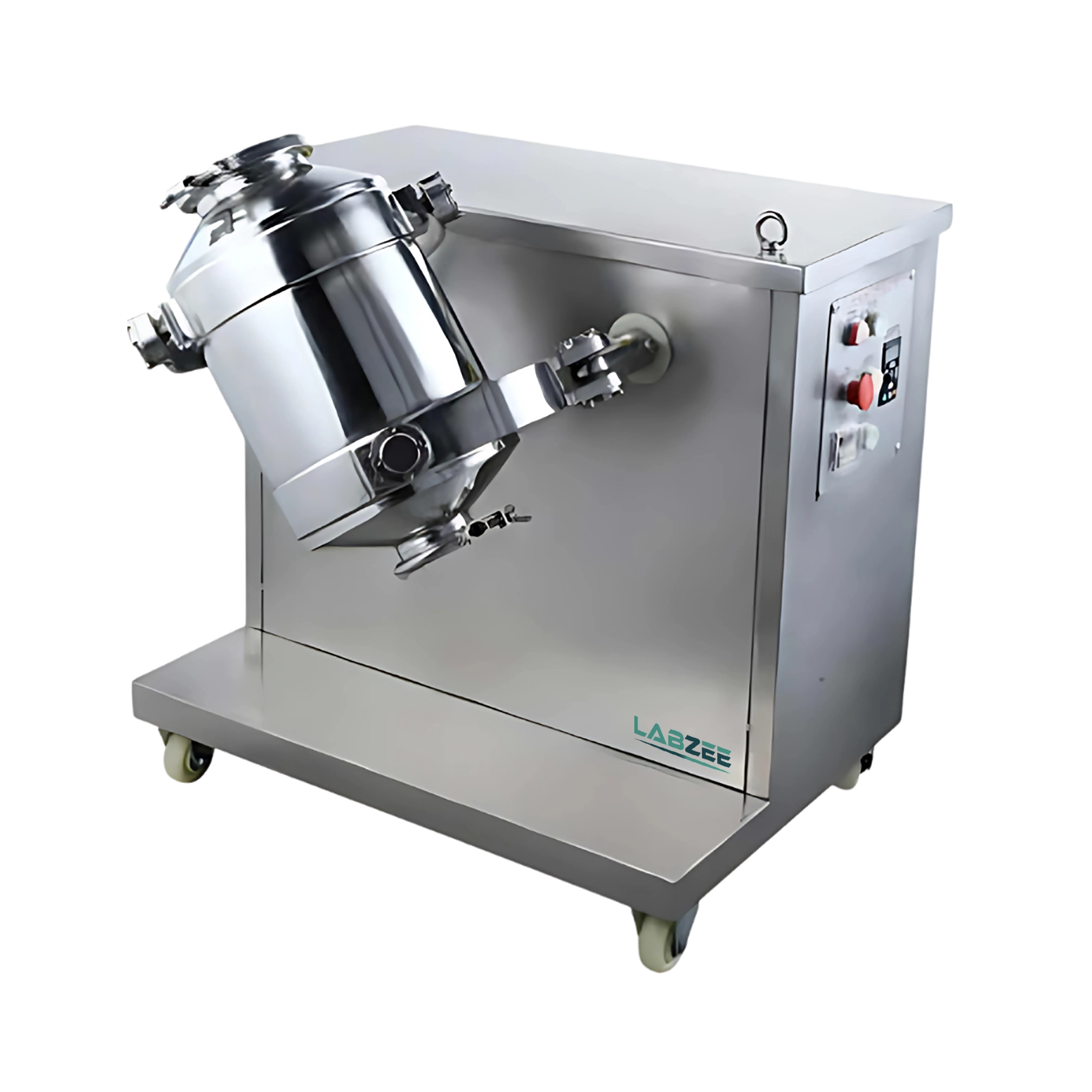

Labzee 3D Mixer BZDSM-502 operates at a main shaft speed of 13 rpm and offers a mixing time range of 0–99 hours, making it suitable for versatile applications. It features a 10 L capacity with an effective working volume of 50–70% of the grinding tank, ensuring optimal and efficient blending. The mixer is made of durable stainless steel and provides a hygienic washable surface for mass production. Its rotational design eliminates dead zones and minimizes energy consumption, ensuring uniform and consistent mixing. Our 3D Mixer BZDSM-502 is ideally suited for the reliable and efficient processing of powders and granules across pharmaceutical, chemical and industrial sectors.
| Capacity | 10 L |
| Available Capacity | 50 to 70% of Grinding Tank |
| Optimal Mixing Capacity | ≥10% of Grinding Tank |
| Main Shaft Speed | 13 rpm |
| Load Weight Limit | 20 Kg |
| Mixing Time Range | 0 to 99 hr |
| Tube Material | 304L Stainless Steel |
| Thickness Of Barrel | 2 mm |
| Thickness Of Seal Plate | 1.5 mm |
| Support Internal Motor Plate | 10 mm |
| Reduction Box | WPDA-70 |
| Electrical Protection Grade | Grade 3 |
| Bearing Type | UCP-35 Self-Aligning |
| Outlet Distance From Ground | 350 mm |
| Import/Export Port Size | 110 mm |
| Motor Power | 750 W |
| Power Supply | 220V / 50Hz |
| Power Consumption | 1000W |
| Product Dimension | 80 × 80 × 80cm |
| Package Dimension | 147 × 58 × 132cm |
| Net Weight | 130 Kg |
| Gross Weight | 170 kg |
Our 3D Mixer BZDSM-502 is ideal for efficient mixing of powdery and granular materials in pharmaceuticals, chemicals, food, light industry, electronics, machinery, mining, metallurgy, and scientific research, ensuring uniform, rapid, and high-quality blending.
Frequently Asked Questions
1: What is the capacity of the Labzee 3D Mixer BZDSM-502?
3D Mixer BZDSM-502 has a total capacity of 10 L, with an optimal working volume of 50–70% of the grinding tank for efficient mixing.
2: What is the mixing time and speed of the 3D mixer?
The main shaft operates at 13 rpm, and the mixing time can be set between 0–99 hours, allowing precise control for various applications.
3: What makes the BZDSM-502 energy-efficient?
Its 3D multi-directional mixing design minimizes dead zones and centrifugal force, reducing energy consumption while ensuring uniform blending.
4: What is the construction material of the mixer?
The mixer is made from high-quality 304L stainless steel, providing a hygienic, durable, and easy-to-clean surface ideal for mass production.
5: What is the maximum load capacity of the mixer?
The BZDSM-502 can handle up to 20 kg of material per batch.
6: How easy is it to clean and maintain?
Its precision-polished cylinder and stainless-steel construction allow quick cleaning, and all parts are designed to prevent dead zones, making maintenance simple.
7: What is a 3D Mixer used for?
A 3D Mixer helps you mix powders and granules uniformly. It rotates in multiple directions, ensuring no dead corners during blending.
8: Can you use a 3D Mixer for pharmaceutical applications?
Yes, it's ideal for pharmaceuticals. It gives you homogenous mixing without breaking particles or generating heat.
9: Is the 3D Mixer safe for food processing?
Yes, food-grade models are available. You can use them to mix powders like flour, cocoa, or protein supplements safely.
10: Does the 3D Mixer require manual mixing?
No, you don’t need to mix anything manually. It automatically rotates and tumbles your materials for even mixing.
11: Can you mix fine powders in a 3D Mixer?
Yes, it's excellent for fine powders. You get consistent distribution without clumping or layering.
