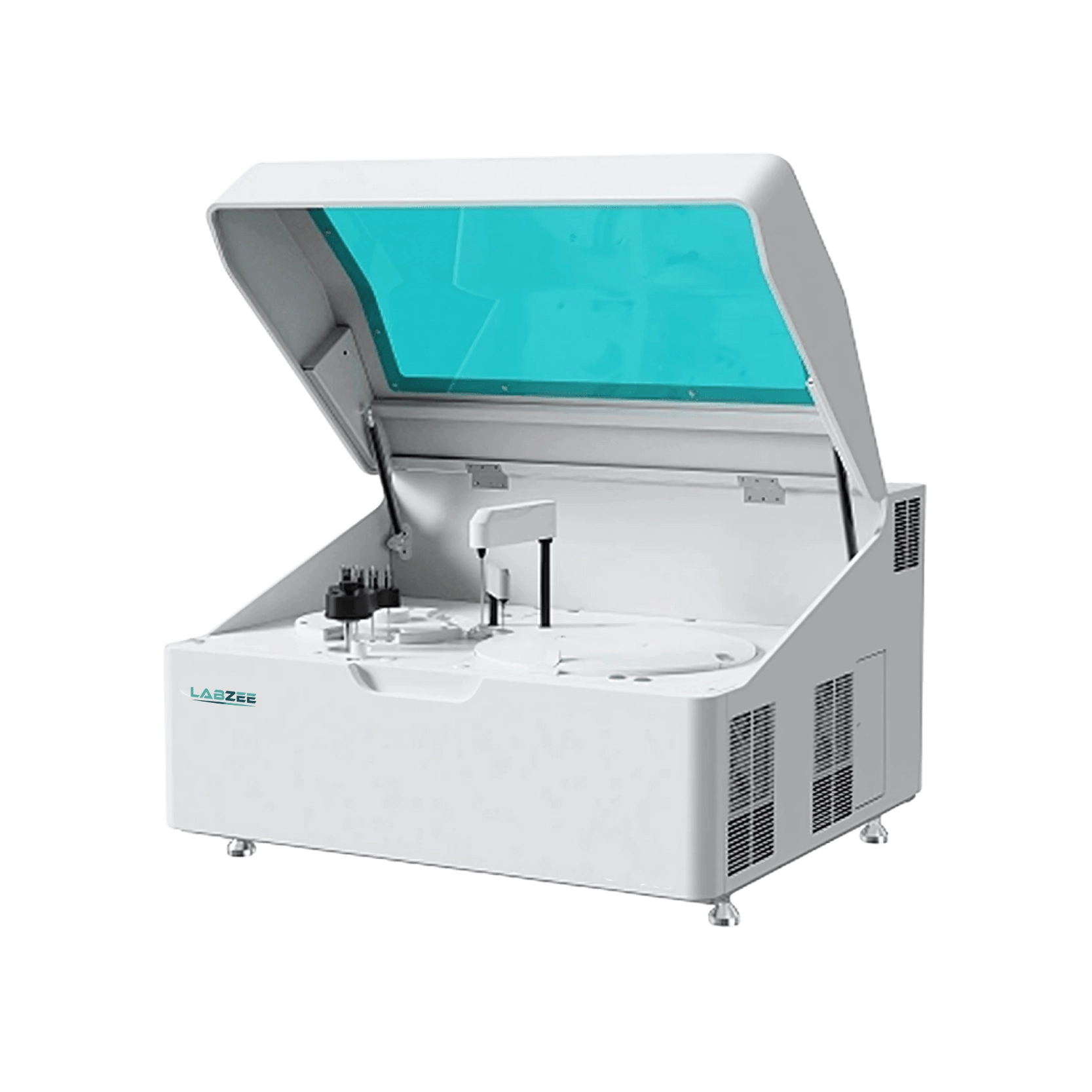

The Blood Culture System BZBCS-501 offers an efficient solution for blood culture testing. This Culture System includes 40 sample sites and accommodates sample volumes between 2 and 30 μL, ensuring precise results. It features advanced digital liquid level sensors that prevent collisions and ensure accurate reagent control. Its customizable storage temperatures and stable reaction environment guarantee reliable performance. Our Blood Culture System BZBCS-501 is perfect for diagnostic testing, clinical research, pathogen detection, quality control, and reagent preparation.
| Sample Sites | 40 (Regular, Emergency, Calibration, QC) |
| Sample Container | Φ13 Sample Tube, 2mL Standard Tube |
| Sample Volume | 2 - 30 μL, 0.1 μL per step |
| Liquid Level Sensor | Digital, Anti-Collision |
| Reagent Site | 80 |
| Reagent Volume | 10 - 30 μL, 0.5 μL per step |
| Reagent Bottle | 20 ml, 35 ml, 70 ml |
| Storage Temp | 2 - 12°C (Customizable) |
| Reaction Cuvette Sites | 56 |
| Reaction Temperature | 37°C |
| Temperature Accuracy | ±0.1°C |
| Reaction Volume | 100 - 360 μL |
| Wavelength Range | 340 - 800 nm |
| Cuvette Type | Quartz |
| Cuvette Light Path | 5 mm |
| Test Principle | Calorimetry |
| Interface | RJ45 Ethernet |
| Light Source | 20W/12V Halogen |
| Colling Method | Air Cooling |
| Absorbance Range | 0 - 3.6 Abs |
| Contamination Rate | <0.1% |
| Quality Control | Manual & Auto QC |
| Auto Flushing | Yes |
| Power Consumption | 500 W |
| Power Supply | AC 110/220V, 50/60Hz |
| Product Dimension | 820 × 716 × 506 mm |
| Net Weight | 100 Kg |
Our Blood Culture System BZBCS-501 is designed to enhance diagnostic accuracy in clinical laboratories. It supports pathogen detection, microbial research, and testing for infections, offering fast and reliable results. Its customizable settings also make it adaptable for a wide range of laboratory applications.
Frequently Asked Questions
1: What is a blood culture system?
A blood culture system is a laboratory device used to detect bacterial or fungal infections in a patient's bloodstream. It monitors blood samples for microbial growth automatically.
2: Why is a blood culture done?
A blood culture helps identify the cause of a bloodstream infection. It allows doctors to select the right antibiotic or antifungal treatment quickly.
3: How does a blood culture system work?
The system incubates blood samples and continuously checks for signs of microbial growth. If any organism grows, the system alerts the lab staff.
4: What samples are used in this system?
The system uses blood samples collected from patients. These samples are placed in special culture bottles and loaded into the machine.
5: How long does a blood culture take?
Preliminary results may be available within 24–48 hours. Final results, including organism identification and sensitivity, may take up to 5 days.
