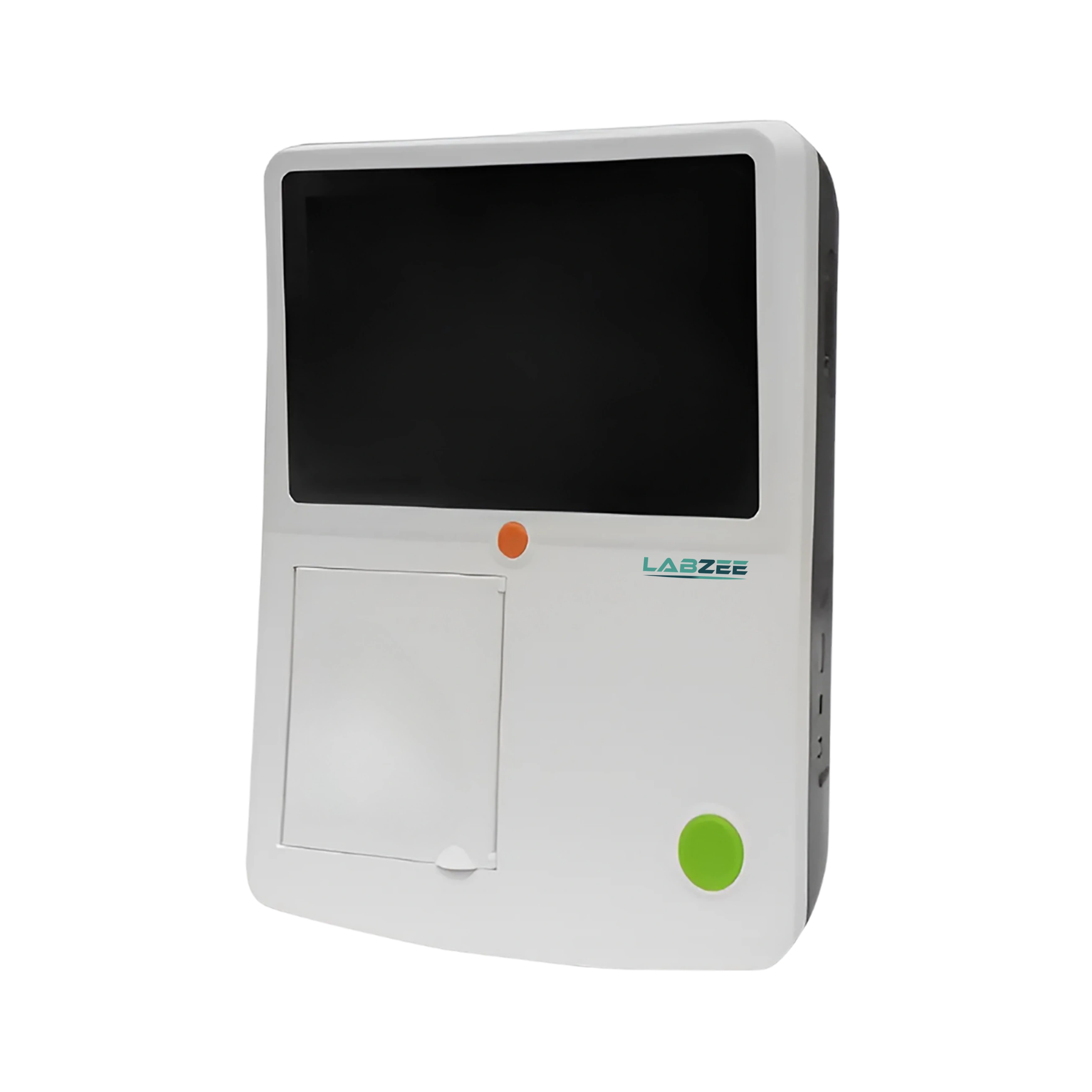

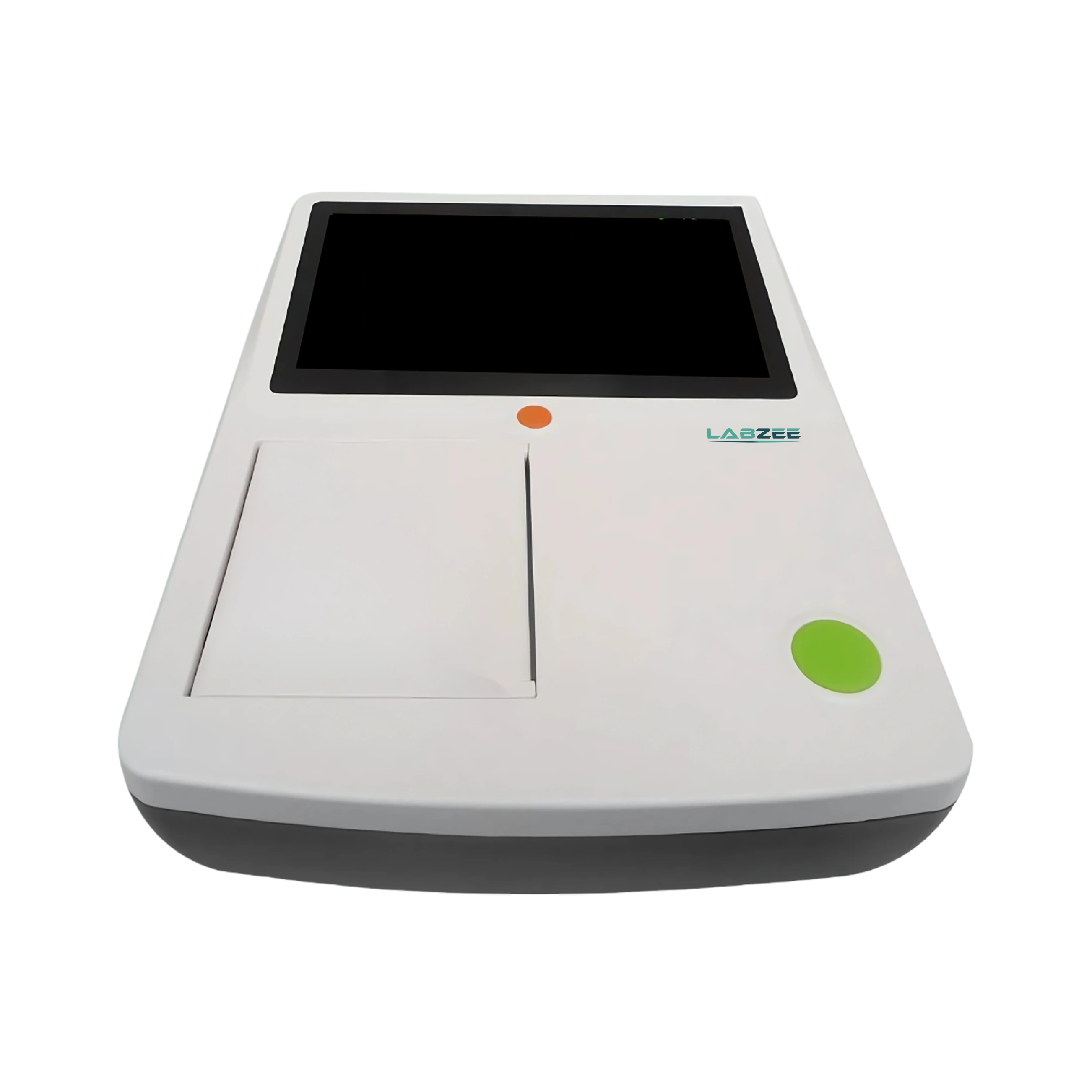

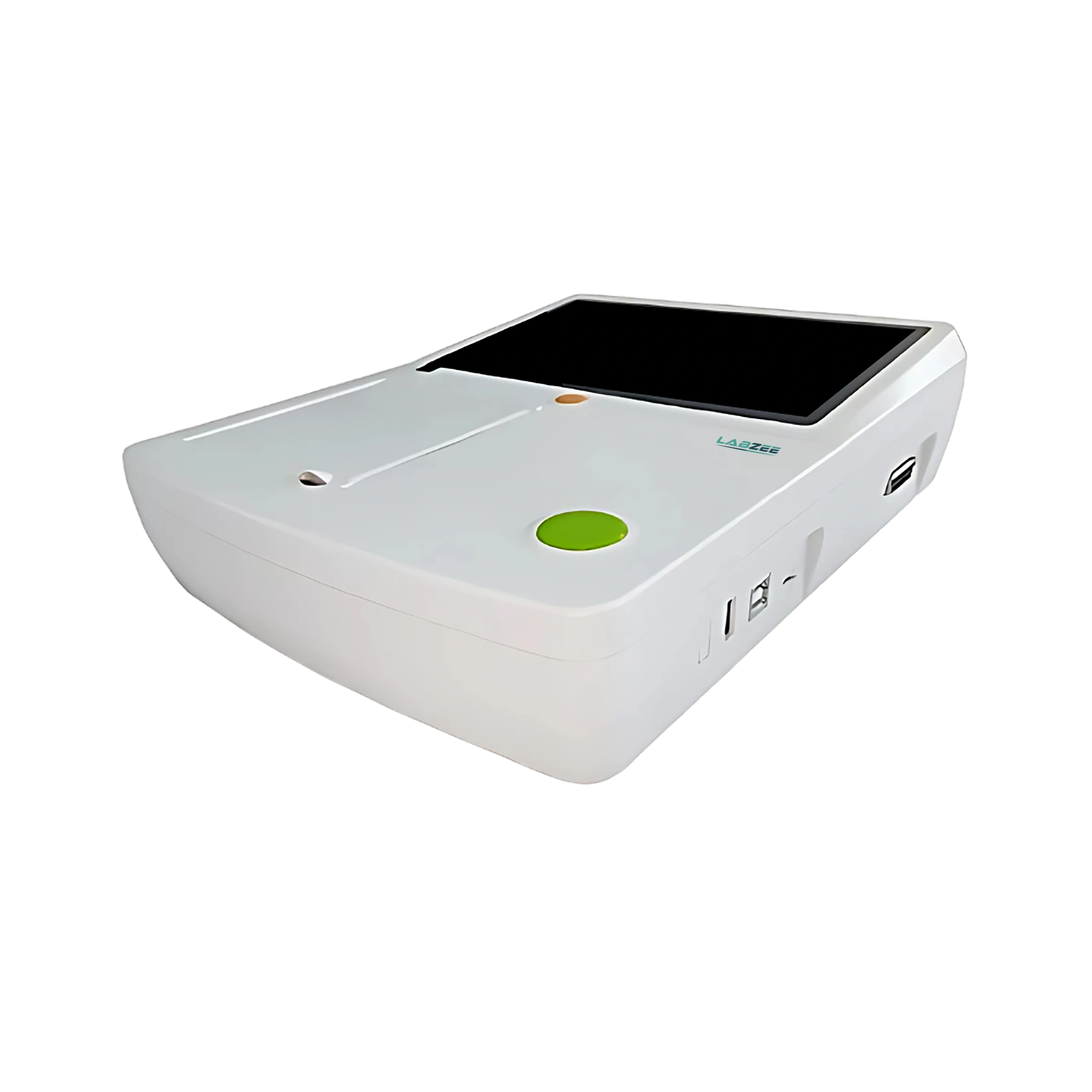

Labzee Channel ECG BZCE-502 is a three channel ECG system designed for efficient and detailed heart monitoring in hospitals, clinics and mobile healthcare environments. The 7-inch color touch screen provides clear multi-lead waveform display and intuitive operation. It supports comprehensive cardiac diagnostics with simultaneous three-lead acquisition, real-time monitoring and quick thermal printing. Our Channel ECG BZCE-502 is ideal for facilities requiring multi-lead capability and efficient heart monitoring.
| Common Mode Rejection Ratio | Greater Than or Equal To 100dB, with AC Filter |
| Input Circuit | Floating, Protection Against Defibrillator Effect |
| Input Circuit Current | Less Than 0.1 μA |
| Resolution | 12bit / 1000Hz |
| Operation Mode | Manual / Auto |
| Filter | AC, ECG Filter |
| Drift Filter | Anti-Drift System |
| Input Impedance | Greater Than 50MΩ |
| Patient Current Leakage | Less Than 10μA |
| Power Supply | AC 110V–230V 50Hz/60Hz |
| Recording Paper | 80mm Thermal Recording Paper |
| Calibrating Voltage | 1mV ± 3% |
| Voltage Tolerance | ± 500mV |
| Time Constant | Greater Than 3.2s |
| Frequent Response | 0.05Hz to 150Hz |
| Noise Level | Less Than or Equal To 15 μVp-p |
| Threshold | Less Than or Equal To 20μV |
| Paper Speed | 12.5mm/s, 25mm/s, 50mm/s (± 3%) |
| Sensitivity | 5, 10, 20mm/mV |
| Recorder | High Resolution Thermal Printer |
| Battery | Li-ion Battery (11.1V, 2200mAh) |
| Package Size (W×D×H) | 256mm × 204mm × 66mm |
Labzee Channel ECG BZCE-502 is perfect for clinics, emergency departments, rural health centers, and mobile healthcare setups where three-lead monitoring offers more diagnostic detail than single channel systems.
Frequently Asked Questions
1: What makes the Channel ECG BZCE-502 different from single channel models?
The Channel ECG BZCE-502 records three leads simultaneously, offering greater diagnostic detail than single channel ECG machines.
2: How portable is the Channel ECG BZCE-502?
The Channel ECG BZCE-502 is lightweight and compact, making it easy to carry between wards or use in mobile healthcare units.
3: Does the Channel ECG BZCE-502 have storage options?
Yes, the Channel ECG BZCE-502 supports USB and SD card storage for saving and reviewing patient reports.
4: What printing features does the Channel ECG BZCE-502 include?
The Channel ECG BZCE-502 features a high-resolution thermal printer that delivers synchronized three-lead ECG reports instantly.
5: Can the Channel ECG BZCE-502 be used in emergency settings?
Yes, the Channel ECG BZCE-502 is ideal for ambulances, field medical camps, and emergency rooms due to its portability and quick operation.
6: What kind of display does the Channel ECG BZCE-502 have?
The Channel ECG BZCE-502 comes with a 7-inch color touch screen that provides clear, real-time waveform visualization.
7: What is a Channel ECG Machine?
It is a device that records the electrical activity of the heart using multiple leads simultaneously, providing detailed diagnostic data.
8: How many channels do Labzee Channel ECG Machines support?
Labzee Channel ECG Machines are available in models with 1, 3, 6, and 12 channels to suit various diagnostic requirements.
9: What advanced features are included?
It includes defibrillation protection, pacemaker detection, noise filters, baseline adjustment, and automatic measurement/analysis.
10: Can the Channel ECG Machines connect to hospital networks?
Many models can connect via USB, RS232, or LAN for integration with hospital information systems.
11: Do Channel ECG Machines work in real time?
Yes, they display and record ECG waveforms in real time, allowing instant review and printing.
12: Are these devices portable?
Yes, most models have a built-in rechargeable battery and a portable design with a hidden handle for easy transport.
