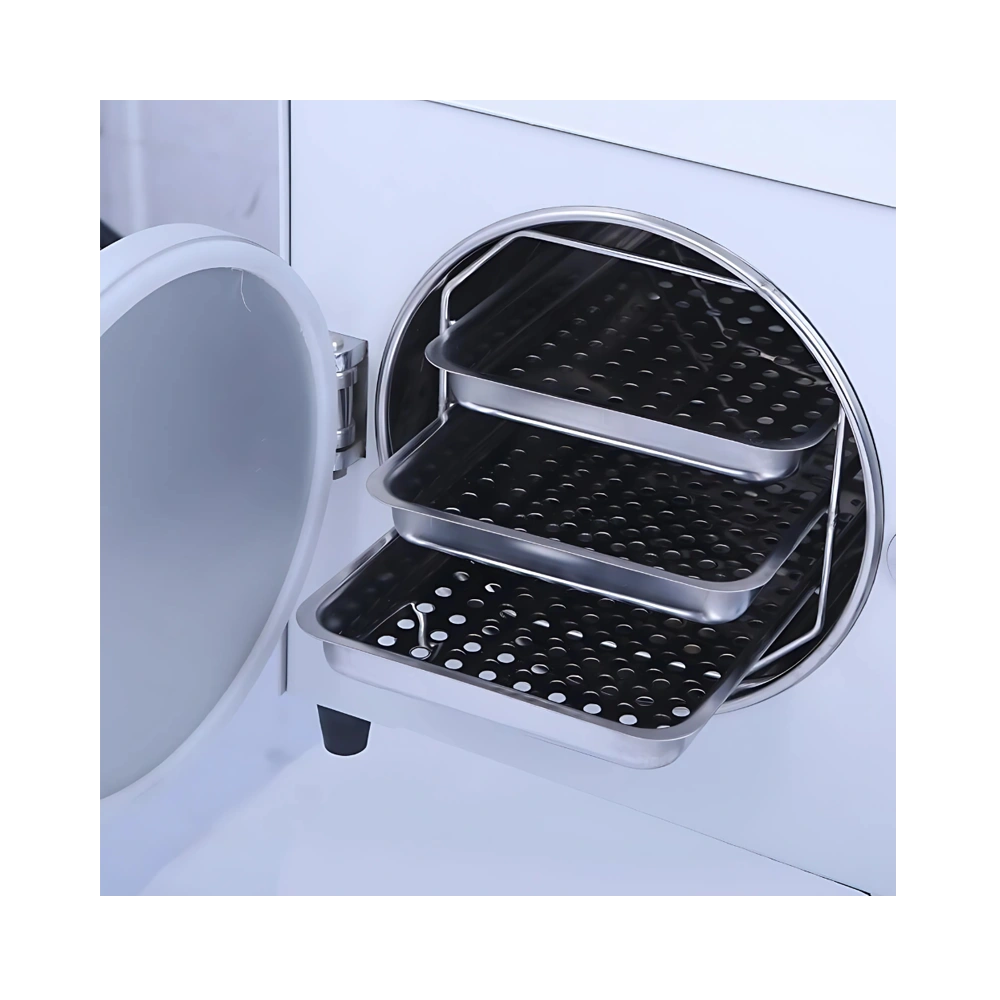

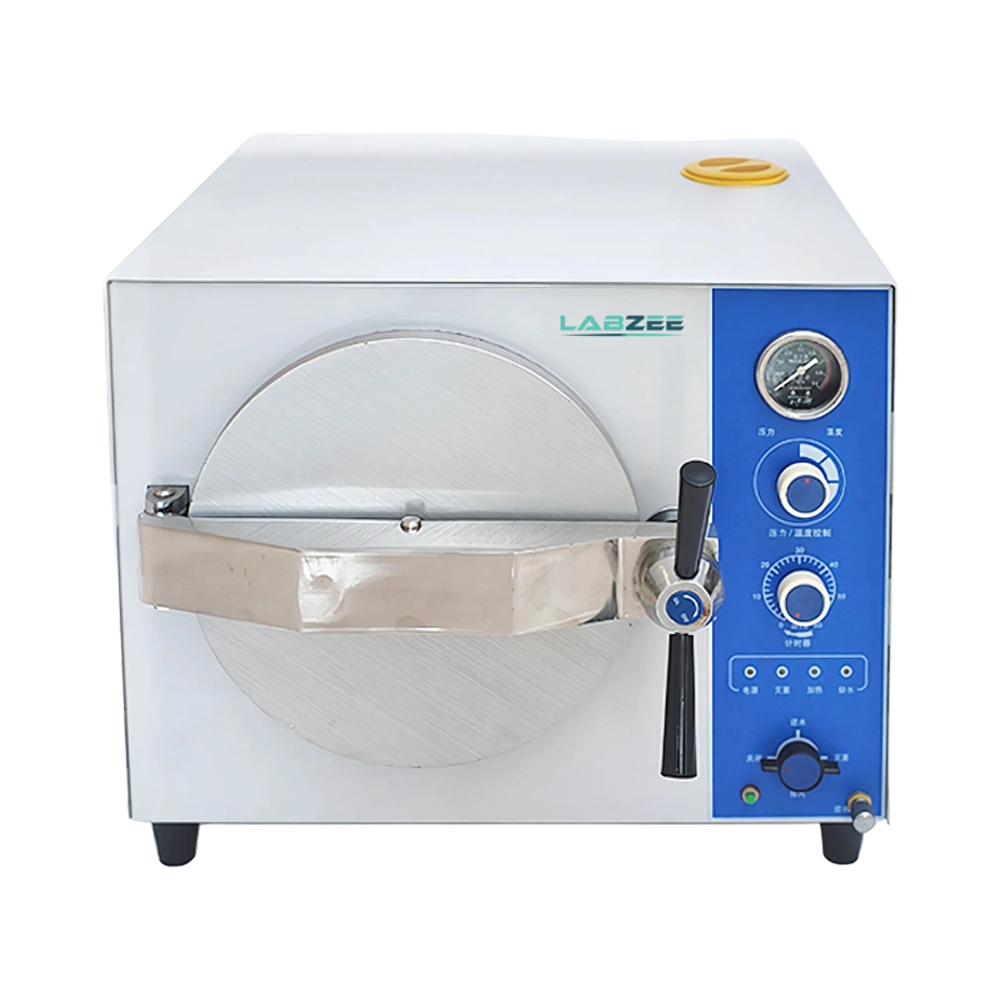

Dental Autoclave BZDA-504 features a spacious stainless steel chamber with multiple sterilizing plates, ensuring durability and ease of cleaning. It offers 24 L chamber capacity and rapid sterilization within minutes and includes essential safety functions such as auto-protection, along with water shortage protection for reliable operation. This device is equipped with a steam-water inner circulation system and prevents external steam release, maintaining a clean and dry environment. It supports sterilization temperatures from low to high range and allows users to preset both time and temperature for optimal performance. Our Dental Autoclave BZDA-504 is ideal for dental clinics and labs requiring safe and efficient instrument sterilization.
| Sterilizing Volume | 24 L, Ф 250 × 520 mm |
| Max. Working Pressure | 0.22 Mpa |
| Max. Working Temperature | 134℃ |
| Temperature Adjust Range | 105 to 134℃ |
| Heat Average | ≤ ± 1℃ |
| Time Range | 0 to 60 min |

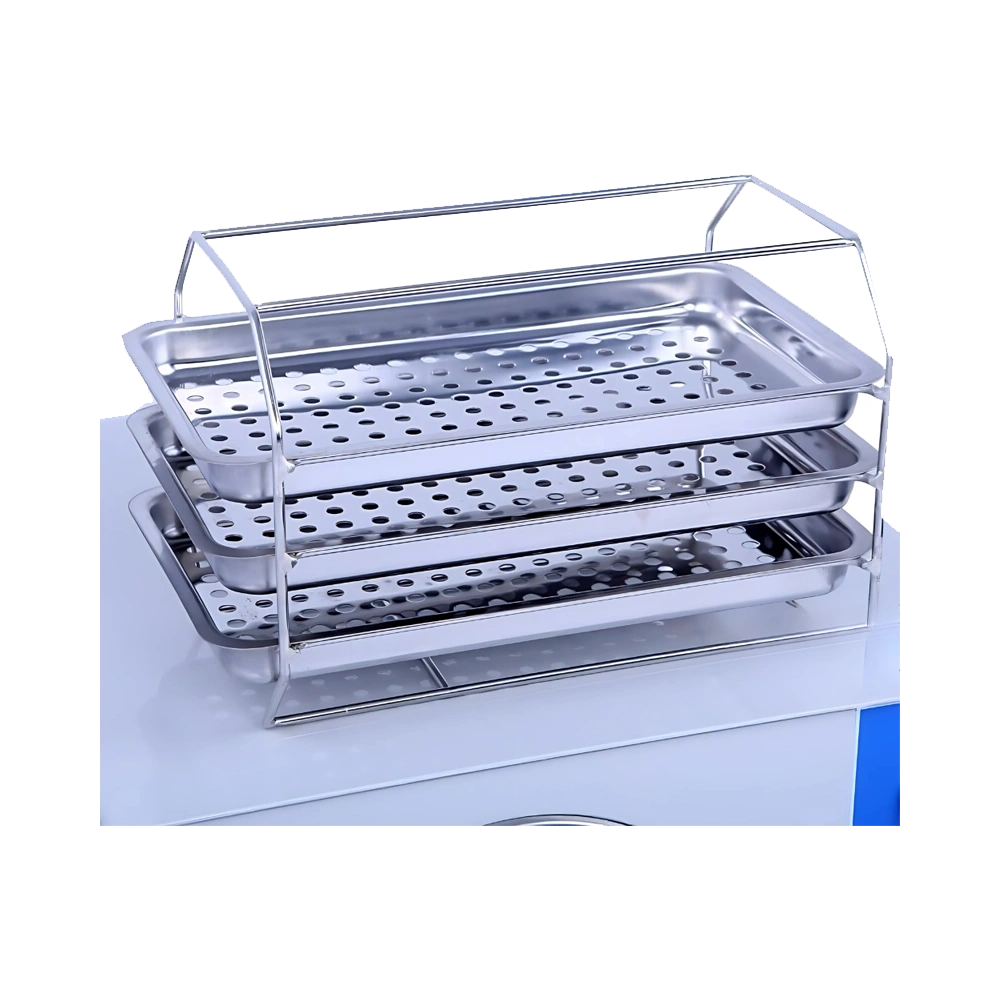

| Sterilizing Plate | 400 × 200 × 30 mm (3 pieces) |
| Power | 2 KW, AC 220 V, 50/60 HZ |
| Net Weight | 45 Kg |
| Gross Weight | 50 Kg |
| Product Dimension | 710 × 480 × 400 mm |
| Packaging Dimension | 800 × 580 × 500 mm |
Dental Autoclave BZDA-504 is ideal for use in dental clinics, hospitals, educational laboratories, research institutions, and diverse lab settings. It efficiently sterilizes surgical, dental, and ophthalmic instruments, along with glassware, pharmaceuticals, culture media, biological dressings, and food products.
Frequently Asked Questions
1: How long does the sterilization cycle take?
The unit BZDA-504 offers rapid sterilization within minutes, and the time can be preset from 0 to 60 minutes based on specific sterilization requirements.
2: Is the BZDA-504 safe to use?
Yes, the autoclave BZDA-504 includes multiple safety features such as over-temperature and over-pressure auto-protection, water shortage protection, and an auto shut-off function to ensure safe operation at all times.
3: How does BZDA-504 manage steam during sterilization?
The BZDA-504 uses a steam-water inner circulation system that eliminates the need for external steam discharge, maintaining a clean and dry sterilization environment.
4: What is the power requirement for this BZDA-504?
The BZDA-504 requires 2 KW power and operates on AC 220V, 50/60 Hz, with customization available for different power requirements upon request.
5: What features make the BZDA-504 a reliable choice?
Its robust construction, user-friendly operation, rapid sterilization, and advanced safety mechanisms make it a high-performance solution for professional sterilization needs.
6: What is a dental autoclave used for?
A dental autoclave is used to sterilize reusable dental instruments by applying high-pressure steam, ensuring complete disinfection and compliance with hygiene standards.
7: Can I connect the autoclave to a printer or USB?
Yes, selected models feature built-in printers and USB interfaces for easy data recording and cycle tracking.
8: What types of dental autoclaves are available?
Dental autoclaves are mainly available in Class B and Class N models. Class B uses vacuum sterilization for all instrument types, including wrapped and hollow tools, while Class N is suitable for unwrapped solid instruments only.
