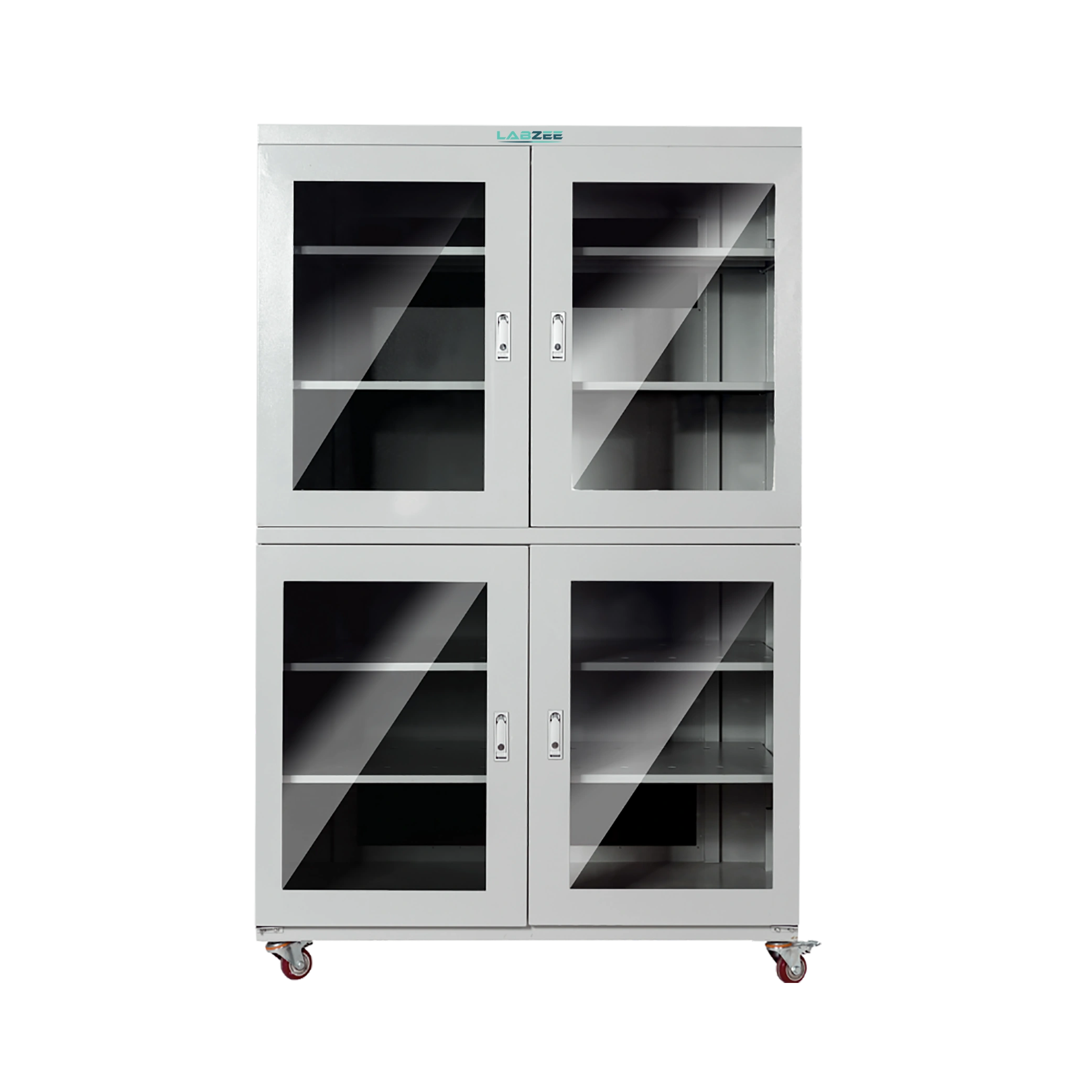

Dry Cabinet BZDC-504

Dry Cabinet BZDC-504 is a 10 to 20% relative humidity cabinet for storing humidity-sensitive products and materials. It has a 320-liter capacity. It is made of a high-grade 1 mm and 1.2 mm cold-rolled steel plate, reinforced, and has excellent load bearing and sealing performance. A zinc alloy lock with airtightness and an anti-theft function protects the contents.

Capacity 320 L
Relative Humidity 10% to 20%RH
Shelves 3pc
Power Supply AC power 85V to 265V 50/60Hz
Average Power 20 W
Inner Size 898×422×848 mm
Outer Size 900×450×1010 mm
Packing Size 990×550×1270mm
Gross Weight 79 Kg
  • Adoption by the Chamber Cold rolled steel plates of high grade 1mm and 1.2mm, reinforced structure design, excellent load-bearing and sealing performance
  • A Solutions sensor module powers the temperature and humidity independent display
  • Humidity can be set and has a memory function; however, in the occurrence of a power outage, humidity cannot be set
  • To protect the stored goods from pollution, static shock, and oxidation, they were treated with DuPont orange line baking varnish, which has a high corrosion resistance
  • 3.2 mm high-intensity toughened glass lock with zinc alloy lock that is an airtight and anti-theft function
  • Installed with casters with brakes and hold for easy movement
  • There are two types of surfaces: black (anti-static) and white (non-anti-static)

It is found in optical and electronic components, chemicals, printed circuit boards, optical film and lenses, LED, PCB boards, crystal, SCR, IC, BGA, and other advanced electronic devices.
