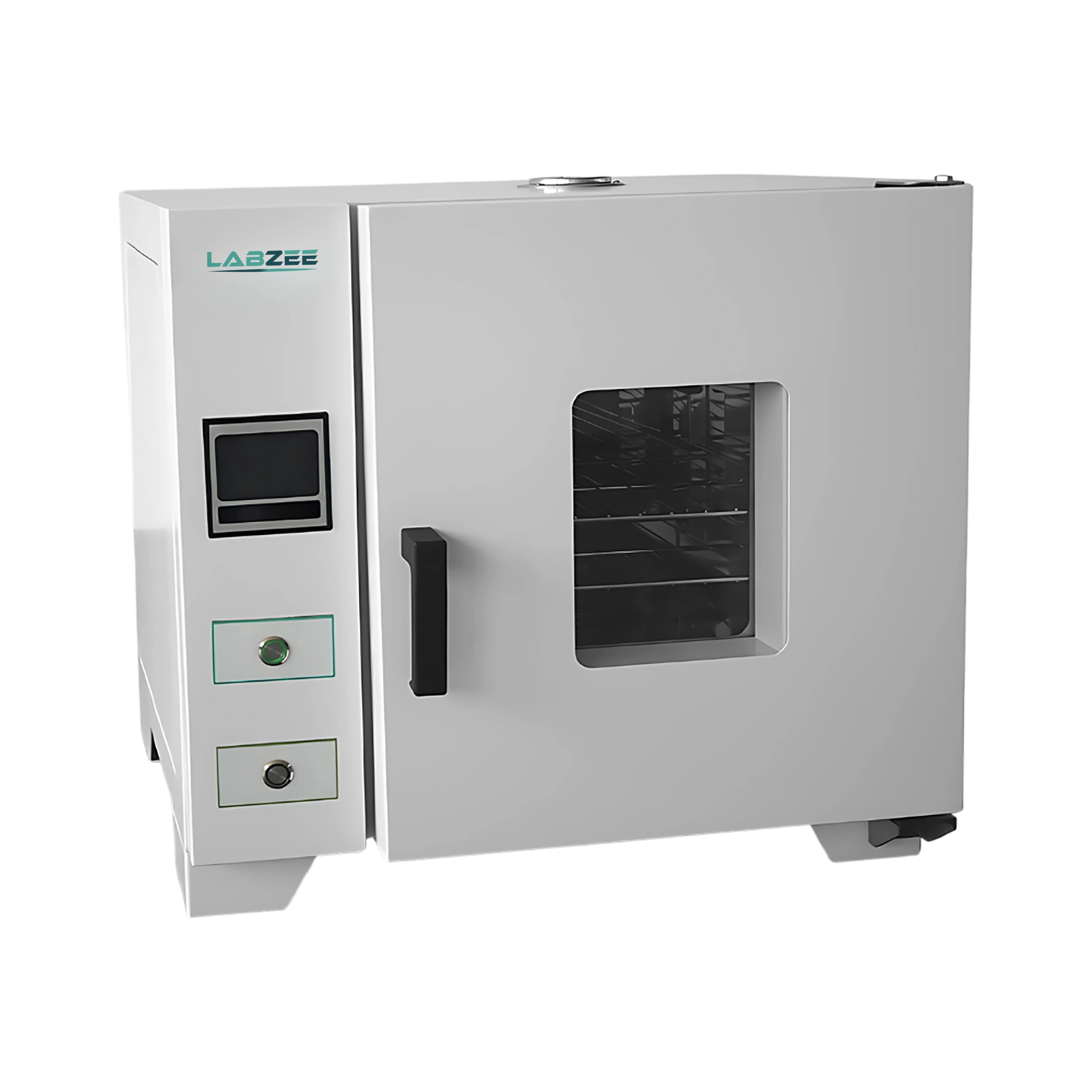

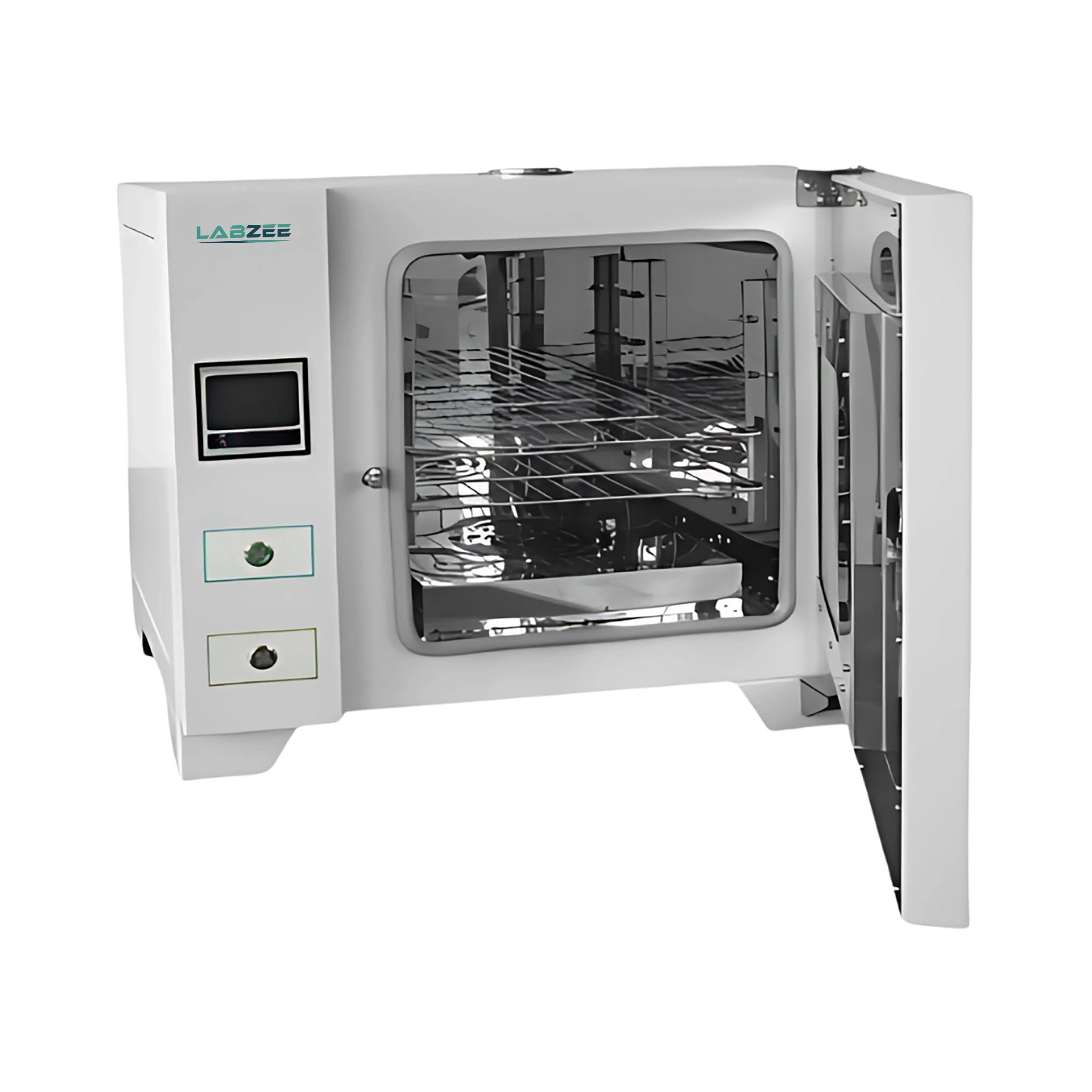

Labzee Far Infrared Drying Oven BZIO-503 features a 138 L stainless-steel chamber for rapid and precise thermal processing. It operates from RT+10 °C to 300 °C with ±1 °C fluctuation and 0.1 °C resolution, ensuring accurate and consistent temperature control. This oven is equipped with user friendly LCD and a microprocessor controller with programmable timing functions for precise operation. Its reinforced tempered glass window allows safe observation of samples. Our Labzee Far Infrared Drying Oven BZIO-503 is ideal for laboratory drying, heat treatment, material testing, and any application requiring precise temperature control.
| Chamber Volume | 138 L |
| Temperature Range | RT+10 to 300℃ |
| Temperature Fluctuation | ±1°C |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±3.5% within Max. Temp. |
| Sensor | PT100 |
| Display | High-Definition LCD |
| Circulation Mode | Natural Convection |
| Power Supply | AC 220V, 50Hz |
| Power Consumption | 2800 W |
| Chamber Size (W×D×H) | 50×50×55 cm |
| Exterior Size (W×D×H) | 78×69×80 cm |
| Package Dimension | 90×76×100 cm |
| Net Weight | 76 Kg |
| Gross Weight | 111 Kg |
2 Grid Racks
Labzee Far Infrared Drying Oven BZIO-503 is ideal for drying, heat treatment, material testing, laboratory research, industrial processing, and any application requiring uniform, controlled heating with rapid results.
Frequently Asked Questions
1: How does the BZIO-503 ensure precise temperature control?
Far Infrared Drying Oven BZIO-503 uses a PT100 sensor coupled with a microprocessor controller, temperature correction, and multi-stage heater sets to maintain precise temperature with minimal fluctuation throughout the chamber.
2: What makes the far-infrared heating system more effective than conventional heating?
Far-infrared radiation penetrates materials directly, providing faster and more uniform heating, reducing energy consumption and preventing surface overheating compared to traditional convection ovens.
3: Can the oven handle sensitive samples?
Yes, the combination of precise temperature control, natural convection airflow, and adjustable heating rates makes it suitable for temperature-sensitive materials without risk of degradation.
4: How flexible is Far Infrared Drying Oven BZIO-503 for complex laboratory protocols?
With multi-segment programmable control, users can define multiple temperature stages, durations, and ramps, enabling complex experimental or production cycles with repeatable results.
5: How does Far Infrared Drying Oven BZIO-503 maintain operational safety during extended use?
Safety is ensured through leakage protection, a backup mechanical thermostat, and an anti-heat handle, allowing uninterrupted operation even if the main controller malfunctions.
6: How is temperature uniformity verified in the chamber?
Far Infrared Drying Oven BZIO-503’s optimized duct design, switchable air inlet, and natural convection guarantee consistent airflow, maintaining uniform temperature distribution across all rack levels.
7: Does the oven support real-time monitoring during operation?
Yes, the high-definition LCD display provides continuous real-time monitoring of temperature, timing, and operational status for precise control and observation.
8: What is a Far Infrared Drying Oven?
Far Infrared Drying Oven is a laboratory and industrial heating device that uses far-infrared radiators to provide efficient, uniform heat transfer for drying, curing, and thermal applications.
9: What are the benefits of using a Far Infrared Drying Oven?
Labzee Far Infrared Drying Ovens offer fast heating, precise temperature control, uniform heat distribution, energy efficiency, and durable stainless-steel construction suitable for continuous laboratory or industrial use.
10: What capacities are available in Labzee Far Infrared Drying Ovens?
Labzee models are available in different chamber sizes ranging from 43 liters to 252 liters, meeting the needs of small laboratories to large-scale research and industrial facilities.
11: How do Far Infrared Drying Ovens ensure uniform temperature?
Labzee Far Infrared Drying Ovens are equipped with far-infrared radiators and advanced microprocessor controls that deliver consistent and evenly distributed heat throughout the chamber.
12: What materials are used in the construction of these ovens?
The inner chamber is made of high-quality stainless steel with removable and adjustable racks, while the exterior is built with durable coated steel for long-lasting use.
13: Do Labzee Far Infrared Drying Ovens have safety features?
Yes, they are designed with safety protections, microprocessor-based monitoring, and user-friendly controls to ensure secure and reliable operation.
