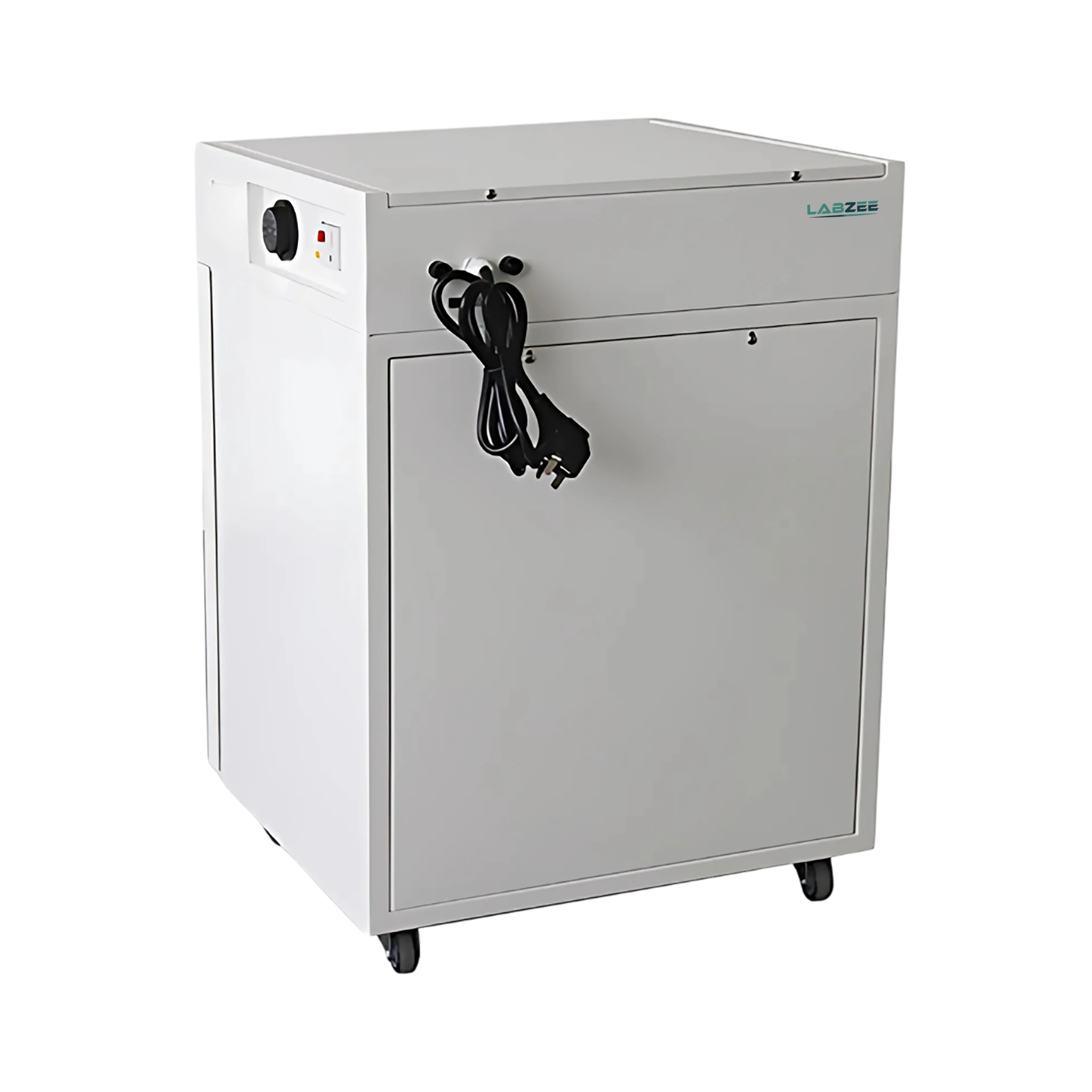

Labzee Floor-Standing Heating Incubator BZIN-505 is a high-precision 80L incubator designed to ensure stable and uniform temperature conditions. It offers a temperature range of RT+5°C to 66°C with ±1°C uniformity, ensuring consistent chamber performance. The LCD screen enables real-time monitoring and user-friendly operation. Its airtight silicone seal improves insulation and reduces heat loss. Our Floor-Standing Heating Incubator BZIN-505 is ideal for precise incubation of temperature-sensitive samples in research, clinical, and industrial laboratories.
| Chamber Volume | 80 L |
| Temperature Range | RT+5 to 66℃ |
| Temperature Fluctuation | ±0.5°C |
| Temperature Uniformity | ±1℃ |
| Temperature Resolution | 0.1℃ |
| Power Supply | AC 220V, 50Hz |
| Power Consumption | 300W |
| Chamber Size (W×D×H) | 40×40×50 cm |
| Exterior Size (W×D×H) | 53×50×83 cm |
| Package Dimension | 68×58×85 cm |
| Net Weight | 45 Kg |
| Gross Weight | 55 Kg |
2 Grid Racks (Expandable to 7)
Labzee Floor-Standing Heating Incubator BZIN-505 is ideal for controlled heating applications such as biological incubation, chemical processing and thermal analysis across research, industrial, and quality control laboratories.
Frequently Asked Questions
1: How does the air duct design contribute to thermal stability across multiple shelf levels?
Floor-Standing Heating Incubator BZIN-505 features a unique horizontal and vertical airflow duct system that ensures uniform heat distribution, minimizing temperature gradients across different shelf heights.
2: What type of temperature controller is integrated, and does it support PID tuning?
Yes, Floor-Standing Heating Incubator BZIN-505 utilizes a microprocessor-based PID controller with temperature correction functionality, allowing for precise tuning and responsive thermal management in dynamic lab environments.
3: Can the system maintain performance during brief power interruptions?
While not UPS-equipped, the BZIN-505 can be paired with optional data backup and restart features through programmable logic or external UPS systems to retain previous settings.
4: How does the built-in mechanical thermostat function as a redundancy safeguard?
The mechanical thermostat acts as a backup control mechanism, taking over to prevent overheating or cooling failure if the primary microcontroller malfunctions.
5: Is there sterilization available?
The optional UV sterilizer provides periodic chamber sterilization.
6: Does the display allow data export or graphing of historical conditions?
While the default LCD is primarily for real-time monitoring, pairing it with the built-in printer or RS485 interface enables time-stamped logging and condition tracking.
7: What are floor-standing heating incubators?
Floor-standing heating incubators are laboratory devices designed to maintain precise temperature conditions for incubation, drying, and other temperature-sensitive applications. They offer larger chamber capacities and are ideal for research, clinical, and industrial environments.
8: What are the advantages of floor-standing incubators over benchtop models?
Floor-standing incubators provide higher capacities, improved temperature uniformity, and better airflow circulation. They are suitable for large-scale experiments, high sample loads, and long-duration incubation processes.
9: What temperature range do floor-standing heating incubators support?
Our Floor-Standing Heating Incubators operate from ambient temperature +5°C up to 80°C, with microprocessor-based PID controls for accuracy and stability.
10: How does forced-air circulation improve performance in heating incubators?
The forced-air systems ensure uniform heat distribution throughout the chambers, eliminating hot or cold spots and providing consistent results.
11: What safety features are included in floor-standing heating incubators?
Safety features may include over-temperature protection, leakage protection, heat-resistant handles, mechanical backup thermostats, and durable stainless-steel chambers.
12: What sizes are available for floor-standing heating incubators?
Labzee offers a range of chamber capacities from 18L to 270L, allowing laboratories to choose based on workload and application needs.
13: How should floor-standing heating incubators be maintained and cleaned?
The stainless-steel interiors and removable shelves make cleaning easy. Regular maintenance includes checking airflow vents, ensuring door seals are intact, and calibrating temperature controls as per manufacturer guidelines.
