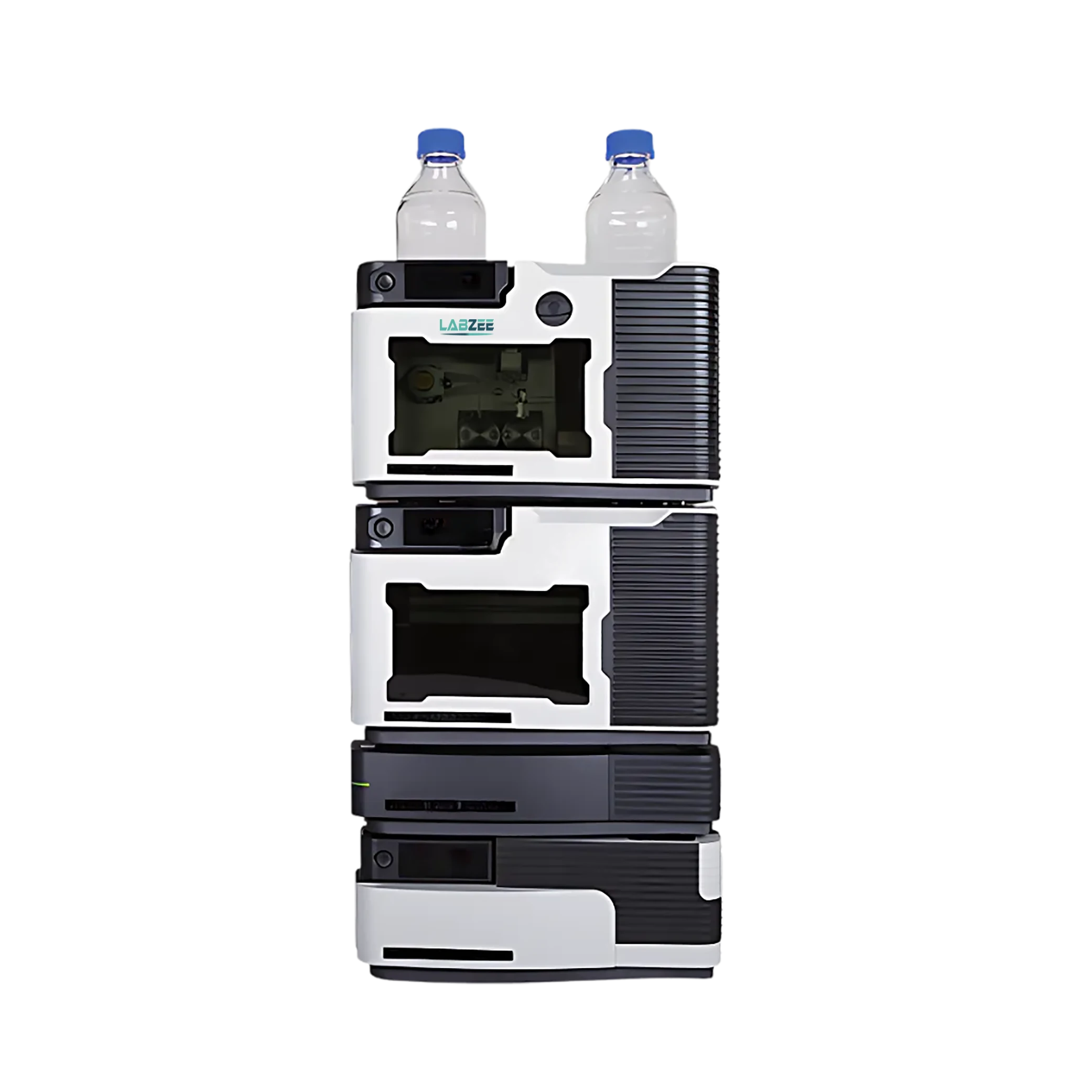

High Performance Liquid Chromatography BZHP-502 is designed for precise, reliable, and flexible chromatographic analysis. It features a quaternary pump with a wide flow rate range and high accuracy supporting a maximum pressure of 9000 psi. The integrated autosampler while temperature control ensures stable operation with ±1.0°C accuracy. This device includes Diode Array Detector which delivers accurate spectral data and excellent baseline stability. Our High-Performance Liquid Chromatography BZHP-502 is ideal for pharmaceutical, environmental, food safety and petrochemical industries.
| Pump Type | Quaternary Pump |
| Degasser | 4 – channel (480 µL / channel) |
| Flow Rate Accuracy | ± 0.2% |
| Flow Rate Range | 0.001 to 10,000 ml/min (increment 0.001 ml/min) |
| Max. Pressure | 9000 psi |
| Pressure Pulsation | ≤ 1% or < 10 psi |
| Sampling Mode | Full loop, partial loop or µL pick-up |
| Auto Sampler Volume | 100 µL |
| Temperature Range | RT + 5ºC to 70ºC |
| Temperature Accuracy | ± 1.0 ºC |
| Temperature Precision | ±0.1 ºC |
| Detector | Diode Array Detector |
| Diode Array | 1024 pixels |
| Wavelength | 190 to 640 nm |
| Light Source | Deuterium Lamp |
| Spectral Resolution | 0.6 nm / pixel |
| Spectral Width | 4.8 nm |
| Wavelength Accuracy | ± 1 nm |
| Wavelength Precision | 0.1 nm |
| Drift | 0.5 × 10-3 AU/Hour |
| Maximum Sampling Rate | 12 channels, 100 Hz, Full Spectrum |
| Flow Cell Pressure | 1200 psi |
| Flow Cell Light Path | 10 mm |
| Flow Cell Volume | 12 µL |
| Detection Limit | 2 × 10-8 g/ml (naphthalene) |
The High-Performance Liquid Chromatography BZHP-502 is ideal for precise analysis in pharmaceuticals, food safety, environmental testing, petrochemicals, and agriculture. It ensures accurate detection of compounds in complex samples for both research and quality control.
