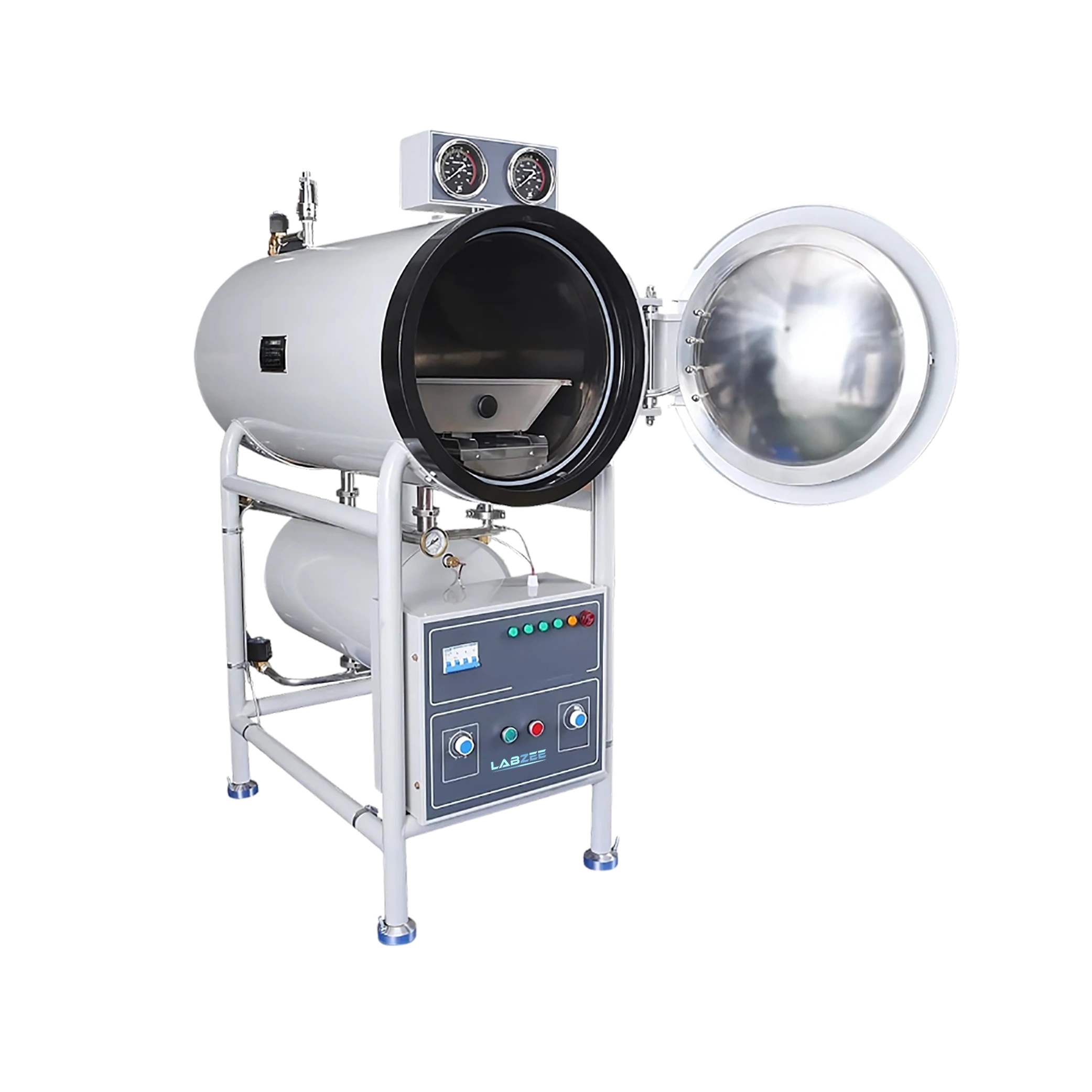

Horizontal Autoclave BZAH-505 ensures effective sterilization for instruments, textiles, culture media, and laboratory applications. It ensures protection with regulated steam, over-temperature and pressure safety features, and a reliable locking system. This unit features a corrosion-resistant stainless-steel chamber, drying function, and safety valve for dependable operation. It includes alarms and automatic shutdown for water shortage and power interruptions. Our Horizontal Autoclave BZAH-505 provides consistent performance and easy operation for hospitals, laboratories, and industrial use.
| Capacity | 400 L |
| Chamber Size | Φ 700 × 1100 mm |
| Working Pressure | 0.22 MPa |
| Working Temperature | 134℃ |
| Temperature Adjust Range | 40℃ to 134℃ |
| Time for Sterilizing | 0 to 60 min |
| Time for Drying | 0 to 60 min |
| Heat Average | ≤ ± 2℃ |
| Power | 18 KW / AC 380.50 Hz |
| Product Dimension | 1430 × 880 × 1830 mm |
| Packaging Dimension | 1600 × 1050 × 2050 mm |
| Net Weight | 456 Kg |
| Gross Weight | 530 Kg |
The Horizontal Autoclave BZAH-505 ensures thorough sterilization through efficient air removal and precise steam management. It is ideal for medical facilities, laboratories, and research institutes for sterilizing surgical instruments, textiles, glassware, culture media, and assisting in mushroom cultivation.
