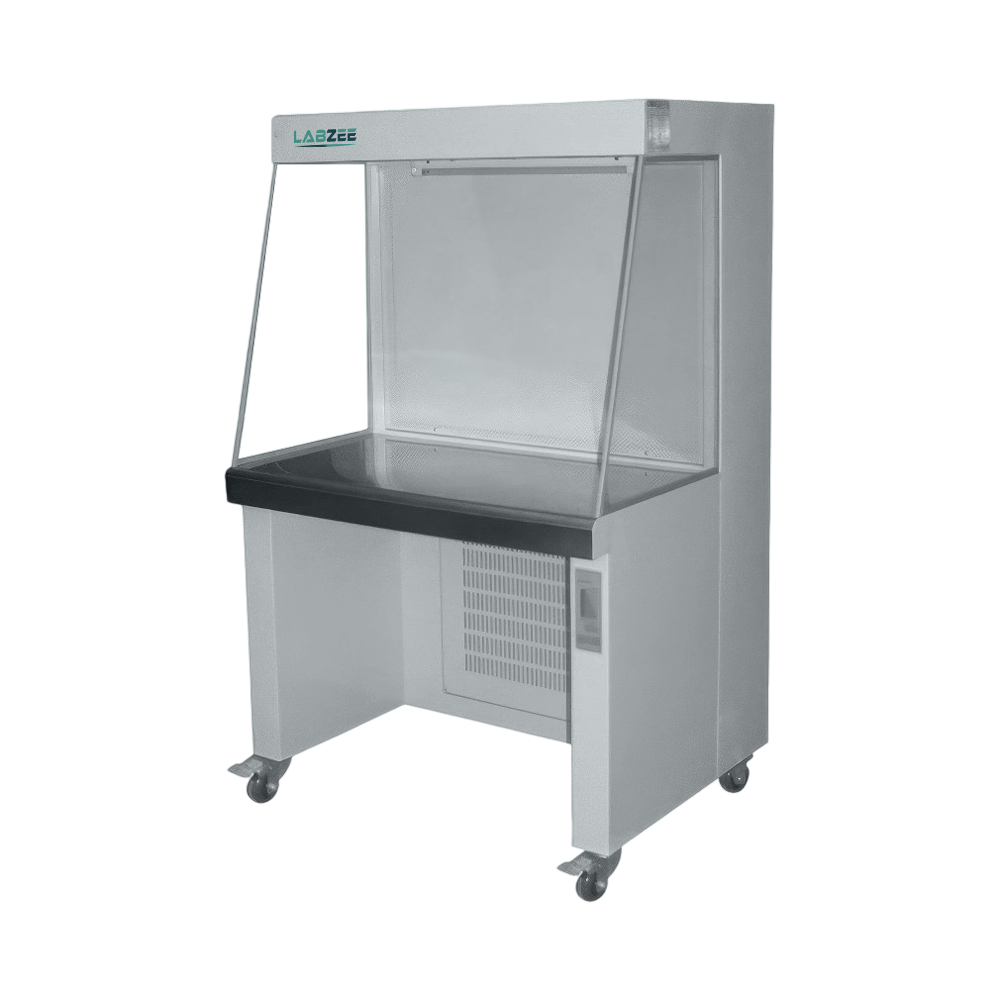

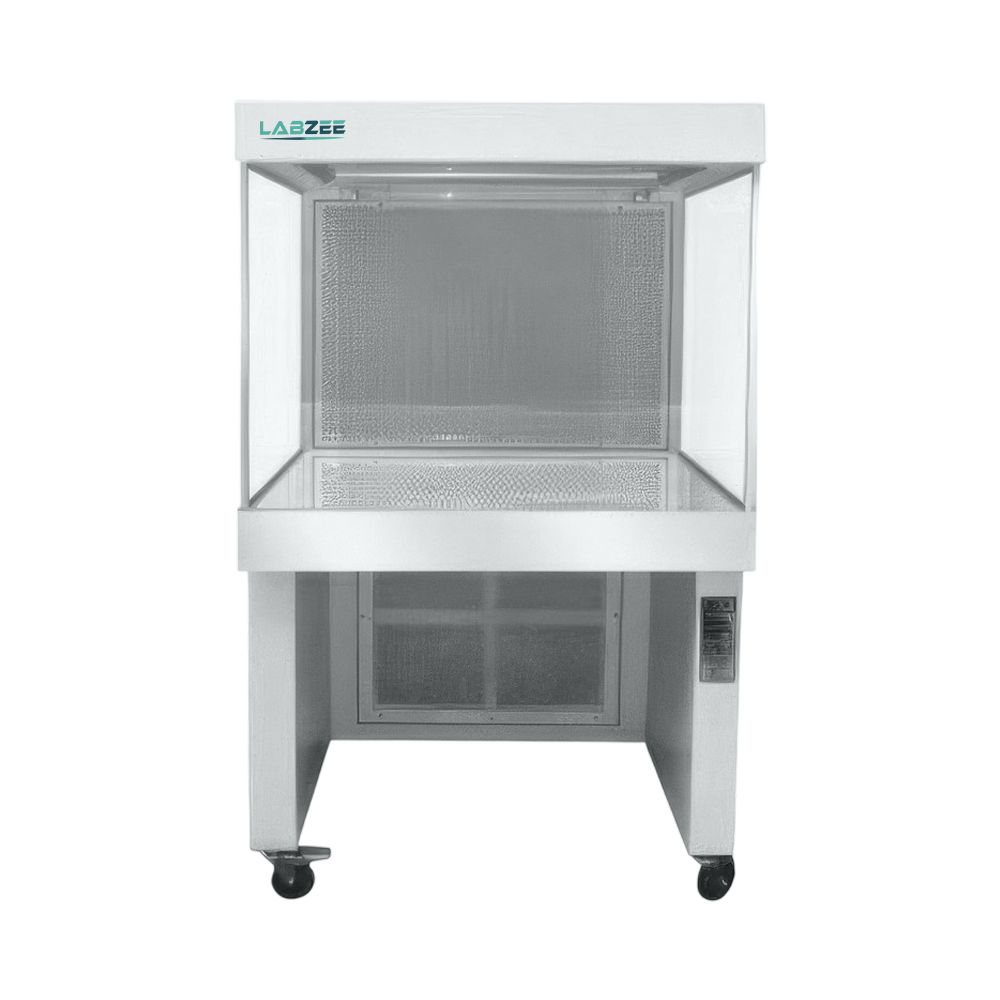

Labzee Horizontal Clean Bench BZZC-504 is a high-performance, dual-user workstation designed to provide a Class 100 clean air environment. Its horizontal laminar airflow system maintains a uniform air velocity between 0.32 and 0.66 m/s, ensuring effective particulate control. The integrated digital LCD interface enables real-time monitoring of airflow velocity, operating status, pressure differential, and system alerts. Its ironclad centrifugal fan ensures quiet, stable airflow, while the HEPA filter effectively removes airborne particles. Our Horizontal Clean Bench BZZC-504 is ideal for microbiology, biotechnology, and pharmaceutical applications that demand high air cleanliness and operational reliability.
| Clean Level | Class 100 (U.S. Federal 209E） |
| Wind Speed | 0.32 to 0.66m/s |
| Noise Level | Less Than 65dB |
| Vibration Semi-Peak Value | Less Than 4um |
| Illumination Intensity | More Than 300Lx |
| Airflow Direction | Horizontal Laminar Flow |
| Applicable Station | Two people One Side |
| HEPA Filter | 610×610×50 cm |
| Power Supply | AC 220V, 50Hz |
| Power Consumption | 800 W |
| Interior Size (W×D×H) | 118×65×57 cm |
| Exterior Size (W×D×H) | 130×82×143 cm |
| Package Dimension (W×D×H) | 144×94×160 cm |
| Net Weight | 130 Kg |
| Gross Weight | 210 Kg |
Labzee Horizontal Clean Bench BZZC-504 is ideal for use in laboratories, cleanrooms, and production areas across pharmaceutical, biotech, medical, and research industries where contamination control and sterile working conditions are critical.
Frequently Asked Questions
1: Can the front sash be adjusted to different positions?
Yes, Horizontal Clean Bench BZZC-504 is equipped with a spring-type sliding door that can be freely positioned within a defined range for flexible access and user comfort.
2: Does the clean bench control vibration for sensitive operations?
Yes, Horizontal Clean Bench BZZC-504 maintains a vibration semi-peak value of less than 4 µm, ensuring stability for sensitive applications such as microbiological work or electronics assembly.
3: Is there illumination inside the work area?
Yes, Horizontal Clean Bench BZZC-504 provides illumination intensity greater than 300 Lux to ensure excellent visibility during operations.
4: What filtration system does the clean bench use?
Horizontal Clean Bench BZZC-504 is equipped with a high-efficiency HEPA filter capable of removing 99.99% of airborne particles down to 0.3 microns.
5: Is the airflow unidirectional across the entire work area?
Yes, the horizontal laminar airflow provides a unidirectional flow from the HEPA filter across the entire work surface, ensuring consistent protection from contaminants.
6: What material is used for the external body of the clean bench?
The outer housing is typically constructed of powder-coated steel, offering durability, chemical resistance, and corrosion protection.
7: What is a Horizontal Clean Bench?
A Horizontal Clean Bench is a laminar airflow workstation designed to provide a particle-free, sterile environment for sensitive processes in labs, pharmaceuticals, and electronics. It uses HEPA/ULPA filters to deliver ISO Class 5 air horizontally, protecting samples from contamination.
8: How Does a Horizontal Clean Bench Work?
Air is drawn through a HEPA/ULPA filter and blown horizontally across the work surface, creating a laminar flow that minimizes turbulence. This ensures a contamination-free zone for tasks like sample preparation, electronics assembly, or sterile compounding.
9: What does Class 100 (US Federal 209E) mean?
Class 100 means the clean bench maintains less than 100 particles (more than 0.5 micrometer) per cubic foot, equivalent to ISO Class 5 standards - ideal for sensitive laboratory work.
10: Is the 0.32-0.66m/s wind speed adjustable?
Yes, our clean bench offers adjustable airflow within this range to accommodate different applications while maintaining laminar flow integrity.
11: What is the typical internal chamber volume?
Labzee models offer internal volumes ranging from approximately 236 to 437 liters, depending on the specific model.
12: Do Labzee benches include UV sterilization?
Yes, Labzee Horizontal Clean Benches come with built-in UV sterilization systems to disinfect the workspace before and after use.
