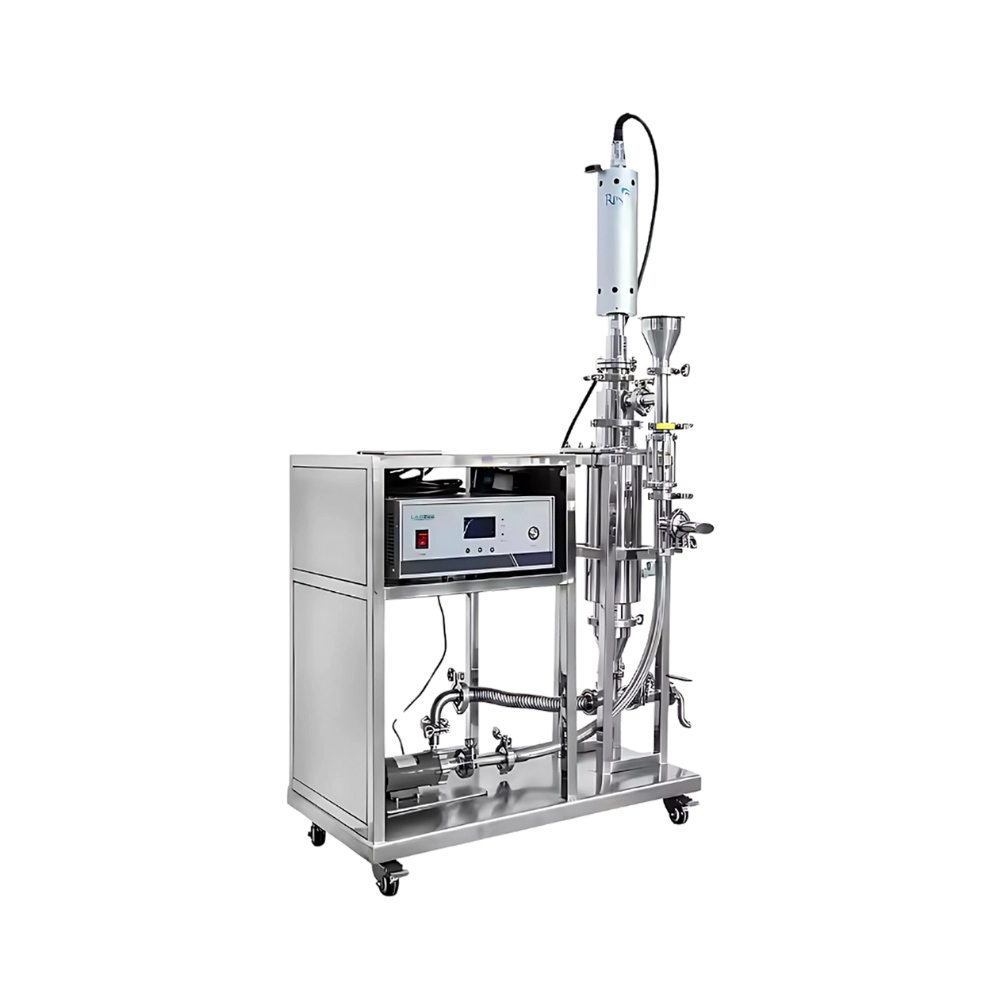

Industrial Ultrasonic Homogenizer BZIH-502 operates at 20 kHz frequency with a maximum capacity of 20 L/min, ensuring fast and accurate results. It is constructed with 1 to 3 layers of durable stainless steel for enhanced strength, corrosion resistance, and thermal efficiency. This homogenizer offers adjustable power settings, providing customizable control for various processing needs. Our Industrial Ultrasonic Homogenizer BZIH-502 is an ideal energy-efficient homogenizer offering reliable performance for continuous, large-scale industrial applications.
| Maximum Capacity | 20 L/Min |
| Frequency | 20 kHz |
| Maximum Temperature | 300°C |
| Horn Diameter | 35 to 50 mm |
| Horn Length | 420 mm |
| Horn Material | Titanium Alloy |
| Tank Layer | 1 to 3 |
| Tank Material | Stainless steel (SS304) |
| Pressure | 35 MPa |
| Adjust Power | 10% to 99% |
| Power Consumption | 3000 W |
| Power Supply | 220V (50/60Hz) |
| Packaging Dimension | 48×30×30 cm |
| Package Gross Weight | 15 Kg |
Ultrasonic Generator × 1 Piece
Ultrasonic Transducer × 1 Piece
Ultrasonic Horn × 1 Piece
Flange × 1 Piece
Connection Cable × 1 Piece
Power Cable × 1 Piece
Our Industrial Ultrasonic Homogenizer BZIH-502 is an ideal homogenizer for high-efficiency applications, including nano-material processing, bioactive compound extraction, emulsification, degassing, and large-scale dispersions.
