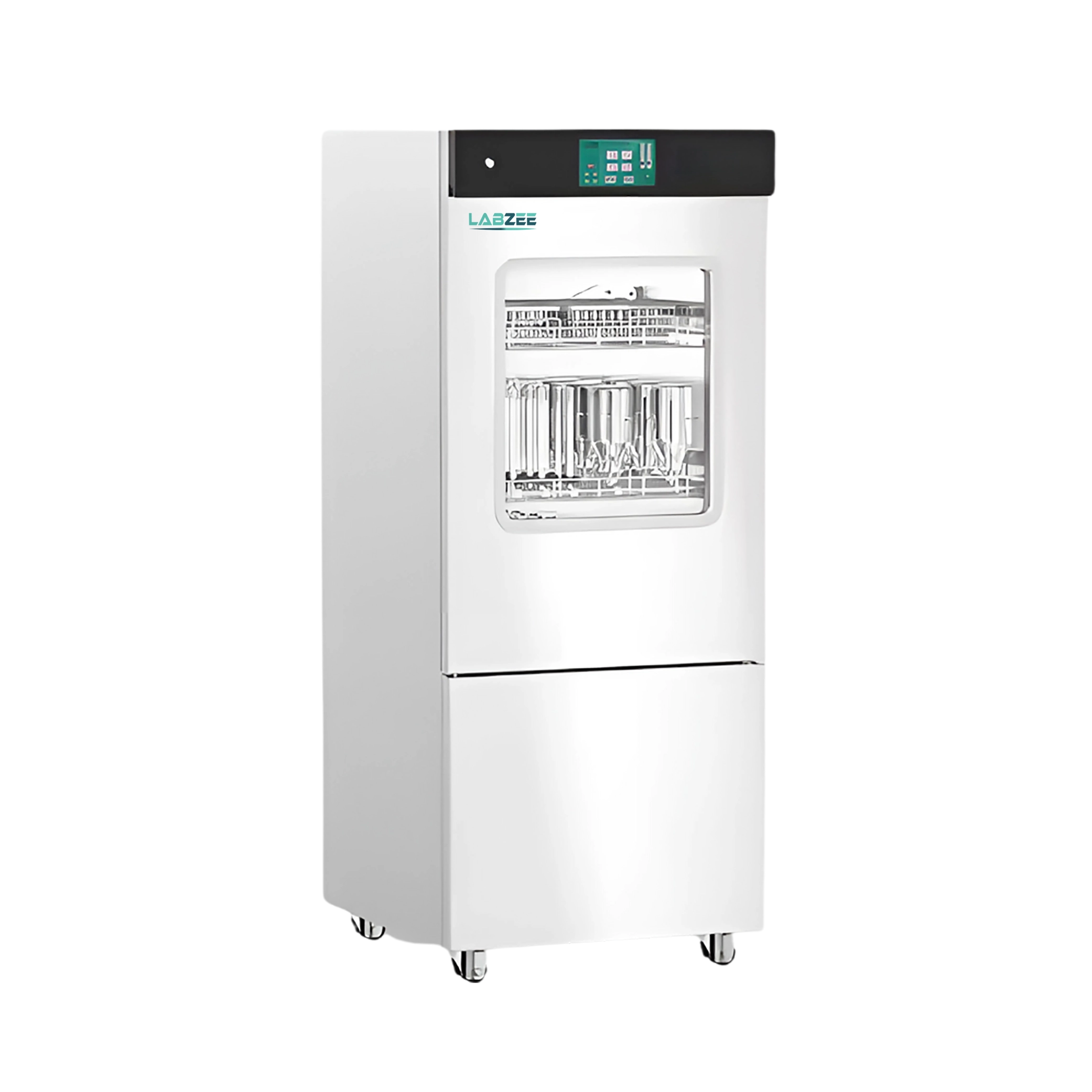

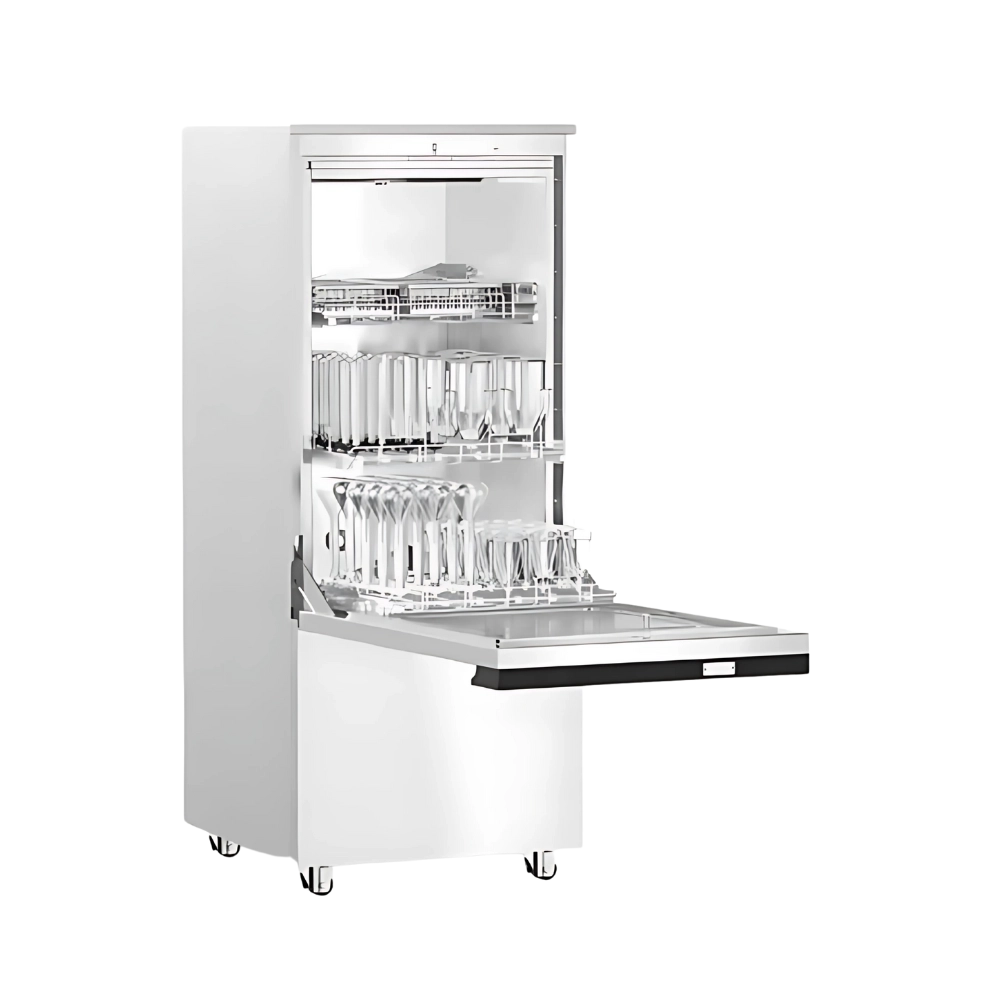

Laboratory Glassware Washer BZGW-507 utilizes microcomputer chip control technology with a 7-inch full-color OLED touch screen for seamless operation. It offers standard cleaning programs and customizable programs, allowing users to adjust various parameters. This device includes variable frequency double circulation pump that ensures controlled water pressure to prevent glassware damage. It includes dual backwater supply system that maintains uniform pressure across cleaning baskets. Our Laboratory Glassware Washer BZGW-507 features HEPA drying, multi-layer filtration, and multiple safety protections, ensuring high-performance cleaning and long-term durability.
| Chamber Material | 316 stainless steel |
| Shell Material | 304 stainless steel |
| Pipe Material | 316 stainless steel + pharmaceutical silicone |
| Chamber Volume | 317L |
| Screen Size | 7 Inch |
| Heating Power | 9 kW |
| Standard Program | 30 |
| Self-Defined Program | 120 |
| Pump Flow | 0-800L/Min. |
| Peristaltic Pump | 1 |
| Air Volume | 220m3/h |
| Drying System | Injection drying |
| Air Heating Power | 4 kW |
| Black Box System | Yes |
| Basket Design | FL-EXCH module |
| Cleaning Basket Layer | 3 layers |
| Intelligent Switch Door | Yes |
| 3 Level Permission | Yes |
| Pipeline Pressure Monitoring | Yes |
| Fingerprint Identification system | Yes |
| SD Card Store System | Yes |
| Printer | RS232 interface |
| Power Supply | 380V, 50Hz |
| Internal Dimension | 546 × 572 × 716 mm |
| External Dimension | 670 × 757 × 1650 mm |
• Upper Cleaning Basket, Without Spray Arm
• Upper Cleaning Basket, With Spray Arm
• Lower Cleaning Basket, Without Spray Arm
• Upper/Middle Cleaning Basket, With Spray Arm
• Lower Cleaning Basket, With Spray Arm
• Upper Cleaning Basket, With Spray Arm, Place K-03 Module
• Lower Cleaning Basket, Without Spray Arm, Place K-03 Module
• Spray Basket 8 for 250 to 2000ml Bottles & Flasks
• Spray Basket 21 for 50 to 250ml Bottles & Flasks
• Spray Basket 32 for 50 to 250ml Bottles & Flasks
• Spray Basket 50 for 10 to 100ml Bottles & Flasks
• Spray Basket 66 for 10 to 50ml Bottles & Flasks
• Sample Bottle Basket 25 for 500ml Bottles
• Sample Bottle Basket 20 for 1000ml Bottles
• Sample Bottle Basket 18 for 50 to 250ml Flasks
• Sample Bottle Basket 32 for 50 to 250ml Flasks
• Sample Bottle Basket 66 for 10 to 50ml Flasks
• Spray Bottle Module Basket 66 for 10 to 20ml Test Tubes
• Spray Bottle Module Basket 66 for 10 to 50ml Pipettes
• Sample Bottle Basket 50 for 10 to 100ml Flasks
• Spray Bottle Module Basket 150 for 2ml Chromatographic Injection Bottles
• Spray Bottle Module Basket 102 for Chromatographic Injection Bottles
• Spray Bottle Module Basket 102 for Test Tubes & Centrifuge Tubes
• Spray Bottle Module Basket 102 for Pipettes & Graduated Pipettes
• Hybrid Module 102 for 78 Injection Bottles & 24 Pipettes
• Hybrid Module 102 for Injection Bottles & Pipettes (0.1 to 50ml)
• Hybrid Module 102 for 54 Injection Bottles & 48 Pipettes (0.1 to 50ml)
• Hybrid Module 102 for 54 Injection Bottles & 48 Test Tubes (0.1 to 50ml)
• Hybrid Module 102 for 78 Test Tubes & 24 Pipettes (0.1 to 50ml)
• Hybrid Module 102 for 54 Test Tubes & 48 Pipettes (0.1 to 50ml)
• Hybrid Module 102 for 54 Injection Bottles & 48 Pipettes (0.1 to 50ml)
• Hybrid Module 102 for 54 Injection Bottles & 48 Test Tubes (0.1 to 50ml)
• Hybrid Module 102 for 78 Test Tubes & 24 Pipettes (0.1 to 50ml)
• Hybrid Module 102 for 54 Test Tubes & 48 Pipettes (0.1 to 50ml)
• Hybrid Module 48 for 24 Pipettes & 24 Volumetric Flasks (0.1 to 100ml)
• Hybrid Module 48 for 24 Injection Bottles & 24 Volumetric Flasks (0.1 to 100ml)
• Hybrid Module 74 for 50 Injection Bottles & 24 Volumetric Flasks (2 to 100ml)
• Hybrid Module 74 for 50 Pipettes & 24 Volumetric Flasks (2 to 100ml)
• 1/2 Cleaning Frame Module for Jars, Glass Rods & Bottle Caps (10 to 2000ml)
• 1/4 Fan-Shaped Cleaning Module for Test Tubes (10 to 20ml)
• 1/4 Fan-Shaped Cleaning Module for Test & Centrifuge Tubes (10 to 20ml)
• Cleaning Frame Module for Jars, Glass Rods & Bottle Caps (10 to 2000ml)
• 1/2 Cleaning Frame Module 30 for Petri Dishes (60 to 150mm)
• Water inlet pipes × 2 Pieces
• Drainpipe × 1 Piece
• Spare parts (sealing strips, peristaltic pump pipes)
The Laboratory Glassware Washer BZGW-507 can be used in pharmaceutical, biotechnology, and analytical labs for precise cleaning of glassware in research and quality control. It is essential in clinical, medical, and food testing laboratories to ensure contamination-free sterilization.
