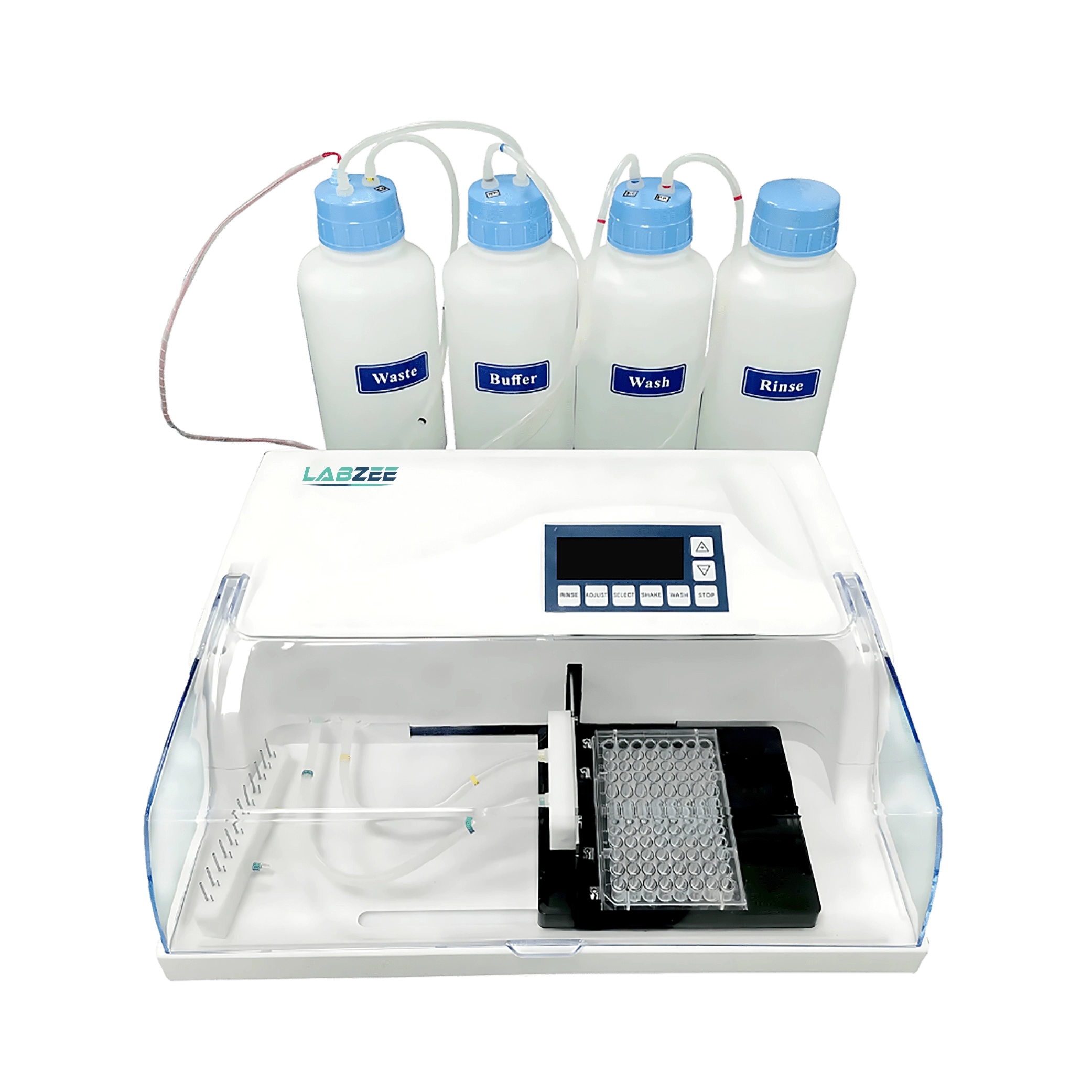

Microplate Washer BZMW-502 features an intuitive 8-key membrane keyboard and a high-brightness LCD display for user-friendly operation. It supports both strip and plate wash modes with adjustable settings for various plate types including flat, V-bottom, and U-bottom. This device offers customizable options such as dipping, shaking, and aspiration to ensure thorough and flexible cleaning. It includes a waste liquid overflow alarm and minimal residual volume that enhances safety and efficiency. Our Microplate Washer BZMW-502 with a powerful Astin pump and large memory for user-defined protocols, is well-suited for precise and adaptable lab applications.

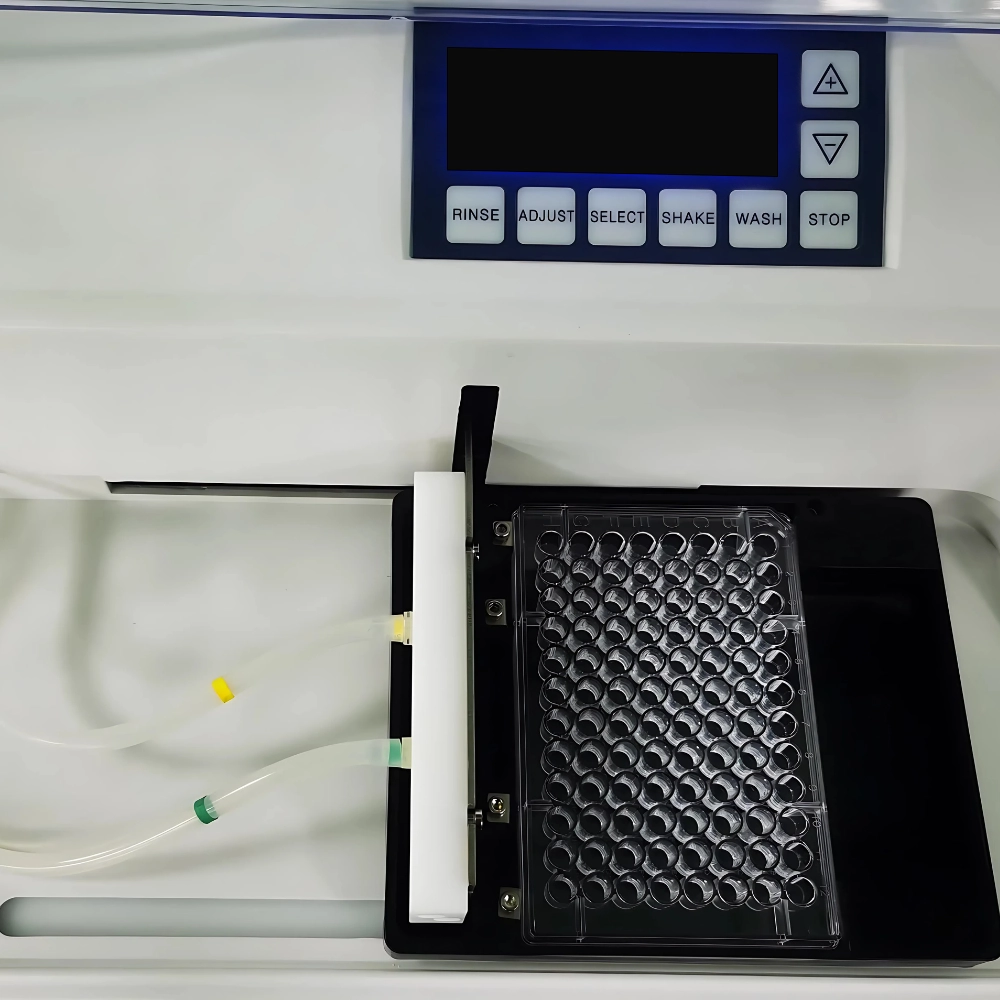

| Input | 8 key membrane keyboard |
| Display | High brightness LCD display screen |
| Manifold | 8 pins and 12 pins |
| Operating Temperature | 5°C to 40°C |
| Maximum Humidity | 80% |
| Wash Mode | Strip mode and plate mode |
| Wash Strips | 1 to 12 strip adjustable |
| Wash Cycle | 1 to 99 times |
| Applicable Well | Flat, V-bottom or U-bottom |
| Washing Times | 0 to 99 times adjustable |
| Dipping Time | 0 to 3600 s adjustable |
| Shaking Time | 0 to 600 s adjustable |
| Residual Volume | ≤ 1µL/well |
| Liquid Volume | 50 to 3000 µL/well |
| Aspiration Time | 0.1 to 9.9 sec. |
| Storage Capacity | More than 120 user defined wash |
| Power Supply | 100 to 240V, 50 to 60Hz |
| Net Weight | 8 Kg |
| Dimension | 448 × 382 × 163 mm |
The Microplate Washer BZMW-502 is ideal for ELISA, cell-based assays, and immunoassays requiring precise and repeatable washing. It supports various microplate formats used in clinical diagnostics, pharmaceutical research, and biotechnology labs. Its programmable features and reliable performance make it suitable for high-throughput screening and routine.
Frequently Asked Questions
1: What are the washing modes supported by this BZMW-502?
The BZMW-502 offers both strip mode and whole plate mode, allowing users to wash from 1 to 12 strips or an entire plate depending on their workflow needs.
2: Can the BZMW-502 help reduce reagent wastage?
Absolutely. BZMW-502 has residual volume ? 1 µL/well, minimizing waste and saving costs on expensive reagents over time.
3: Is BZMW-502 suitable for high-throughput or time-sensitive environments?
Yes, thanks to its flexible strip/plate wash modes, fast aspiration (as low as 0.1 seconds), and programmable cycles, BZMW-502 adapts well to both low- and high-throughput needs.
4: Will the BZMW-502 work well with both ELISA and non-ELISA plate-based assays?
Yes. Its programmable parameters and flexible plate compatibility makes BZMW-502 suitable not just for ELISA but also for a wide range of plate-based immunoassays and enzyme reactions.
5: What types of labs is this washer ideal for?
It’s ideal for clinical diagnostics labs, academic research labs, food safety testing labs, and biotech QA/QC setups that require custom wash routines and dependable performance.
6: Can I program custom wash protocols?
Yes, most advanced microplate washers allow users to create and save custom protocols, including wash cycles, volume settings, soak time, and aspiration parameters.
7: How do I choose the right microplate washer for my lab needs?
Consider your application type (ELISA, cell assays, bead-based assays), throughput (96- vs. 384-well plates), available lab space, automation compatibility, and budget. Also, check for flexible programming options and ease of maintenance.
8: Can I use one washer for both protein and nucleic acid assays?
Yes, but ensure the washer has programmable features to adjust flow rate, aspiration depth, and soak time. Cross-assay use requires easy cleaning protocols or separate fluid lines to avoid contamination.
