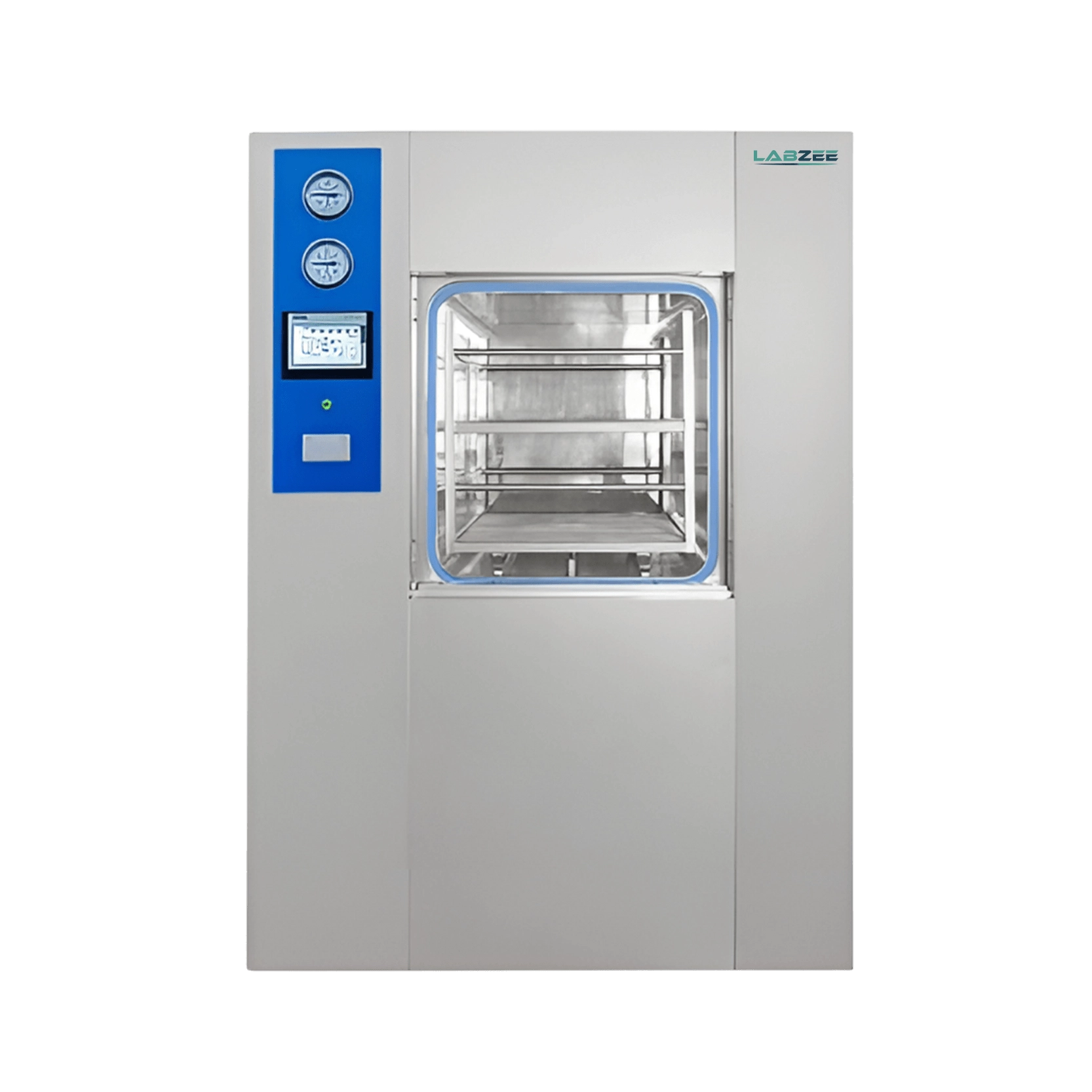

Pulse Vacuum Autoclave BZPV-508 delivers precise sterilization with a 360 L capacity and a consistent temperature of 134℃. This test chamber offers reliable performance, ensuring thorough sterilization in every cycle. It operates efficiently, maintaining pressure stability and effective sterilization. The durable design enhances long-term reliability and easy maintenance. Our Pulse Vacuum Autoclave BZPV-508 is ideal for medical, pharmaceutical, and laboratory applications.
| Capacity | 360 L |
| Sterilizing Temperature | 134℃ |
| Sterilizing Time | 30 Minutes |
| Max Water Consumption | 250 Kg/cycle |
| Max Steam Consumption | 25 Kg/cycle |
| Rated Pressure | 0.21 MPa |
| Steam Source Pressure | 0.3–0.5 MPa |
| Water Pressure | 0.15–0.3 MPa |
| Compressed Air Source Pressure | 0.5–0.7 MPa |
| Chamber Volume | 0.36 mm/m³ |
| Power Consumption | 11 Kw, (AC 220V, 50Hz) |
| Power Supply | 1.45 × 2 Kw, (AC 380V, 50Hz) |
| Chamber Size | 600 × 600 × 1000 mm |
| Product Dimension | 1306 × 1235 × 1780 mm (Single), 1306 × 1235 × 1910 mm (Double) |
| Packaging Dimension | 1800 × 1400 × 2000 mm |
| Net Weight | 800 Kg |
| Gross Weight | 980 Kg |
Heating Element × 1 Piece
Door Gasket × 2 Pieces
Printer Paper × 20 Rolls
Safety Valve × 2 Pieces
Air Filter × 2 Pieces
Strainer × 2 Pieces
Printer Ribbon × 2 Pieces
Chamber Pressure Gauge × 2 Pieces
Jacket Pressure Gauge × 2 Pieces
Our Pulse Vacuum Autoclave BZPV-508 ensures reliable and efficient sterilization for large loads with an advanced vacuum system and precise temperature control, making it ideal for medical, laboratory, and pharmaceutical applications.
