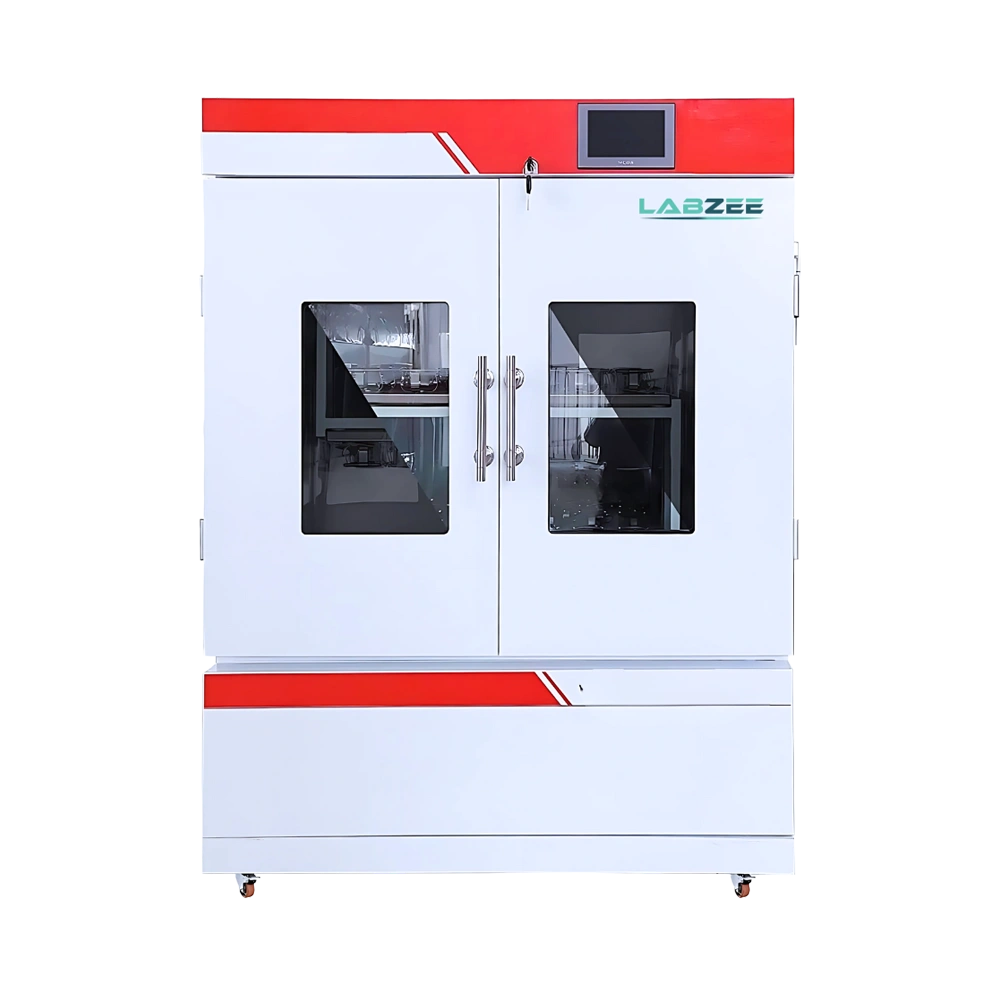

Vertical Incubator Shaker BZVIS-510 provides precise temperature and humidity control for a wide range of laboratory applications. It features an intelligent operating system that automatically adjusts parameters based on environmental changes. This device includes a touchscreen interface with real-time monitoring, programmable settings, and comprehensive data logging with USB export. It includes a high-quality compressor, DC motor, and tempered glass doors with mechanical locks. Our Vertical Incubator Shaker BZVIS-510 spacious interior accommodates multiple tray and flask configurations, making it ideal for high-capacity incubation and shaking tasks.
| Volume | 400 L |
| Temperature Range | 4 to 60°C |
| Temperature Resolution | 0.1°C |
| Temperature Fluctuation at 37°C | ±0.3 |
| Temperature Uniformity at 37°C | ±1 |
| Humidity Range | 50 to 90% RH |
| Humidity Fluctuation | ±3 % |
| Rotation Rate | 30 to 300 rpm |
| Rotation Accuracy | ±1 rpm |
| Vibration Amplitude | Ø26 mm |
| Number of Trays | 2 pieces |
| Tray Size | 755 × 478 mm |
| Timer Range | 0 to 9999 hours |
| Standard Configuration | 250 × 52 (ml × pieces) |
| Full Load Configuration | 50 × 104 or 100 × 104 or 250 × 66 or 500 × 50 or 750 × 36 or 1000 × 26 (ml × pieces) |
| Power | 2600 W |
| Power Supply | 220 V, 50/60 Hz |
| Net Weight | 348 Kg |
| Gross Weight | 428 Kg |
| Package Size | 1350 × 910 × 1730 mm |
| Internal Dimension | 860 × 580 × 800 mm |
| Housing Dimension | 1200 × 740 × 1500 mm |
The Vertical Incubator Shaker BZVIS-510 is extensively used in germ culture, fermentation, hybridization, and various biochemical research applications. It offers precise control over temperature and shaking parameters, making it well-suited for enzyme activity analysis, as well as cellular and tissue culture. It ensures high accuracy and consistent agitation required for demanding experimental protocols.
Frequently Asked Questions
1: How does the intelligent operating system of BZVIS-510 work?
The vertical incubator shaker BZVIS-510 uses the BRIGHT I intelligent operating system, which automatically adjusts control parameters based on real-time environmental conditions, ensuring consistent performance without manual recalibration.
2: Can I program complex incubation cycles in BZVIS-510?
Yes, BZVIS-510 supports advanced multi-segment programming, allowing up to 30 different segments and 999 repeat cycles for complex incubation protocols.
3: Can the device BZVIS-510 be used in environments with changing conditions?
Yes, the BZVIS-510 adapts automatically to environmental changes, making it suitable for use in laboratories with varying ambient conditions.
4: Can I customize the interior layout of BZVIS-510?
Yes, the interior of BZVIS-510 is modular, so you can adjust shelf height, remove trays, or install different flask clamps to match your experimental setup.
5: Can I use BZVIS-510 for both shaking and static incubation?
Yes, you can turn the shaker off completely if you only need incubation. This dual-use feature makes BZVIS-510 versatile for many types of experiments.
6: Can you explain what a Vertical Incubator Shaker is used for?
A Vertical Incubator Shaker is used to culture microorganisms, cells, or tissues under controlled temperature and shaking conditions. It’s essential in biological, microbiological, and biochemical labs where consistent agitation and incubation are required for growth and reactions.
7: How does the vertical design benefit the Incubator Shaker's performance?
The vertical structure allows for better space utilization and efficient airflow within the chamber. It also supports stacking multiple flasks or culture vessels, making it ideal for labs with limited bench space or high-volume sample processing needs.
8: What types of applications are suited for a Vertical Incubator Shaker?
Applications include microbial culture, fermentation, enzyme reactions, and cell cultivation. It’s especially useful in research, quality control, and production labs in the biotech and pharmaceutical industries.
9: Can you use different sizes of flasks in the Vertical Incubator Shaker?
Yes, most models are designed with adjustable platforms and holders that can accommodate various flask sizes. This flexibility allows users to run different batch volumes in a single cycle without equipment changeovers.
