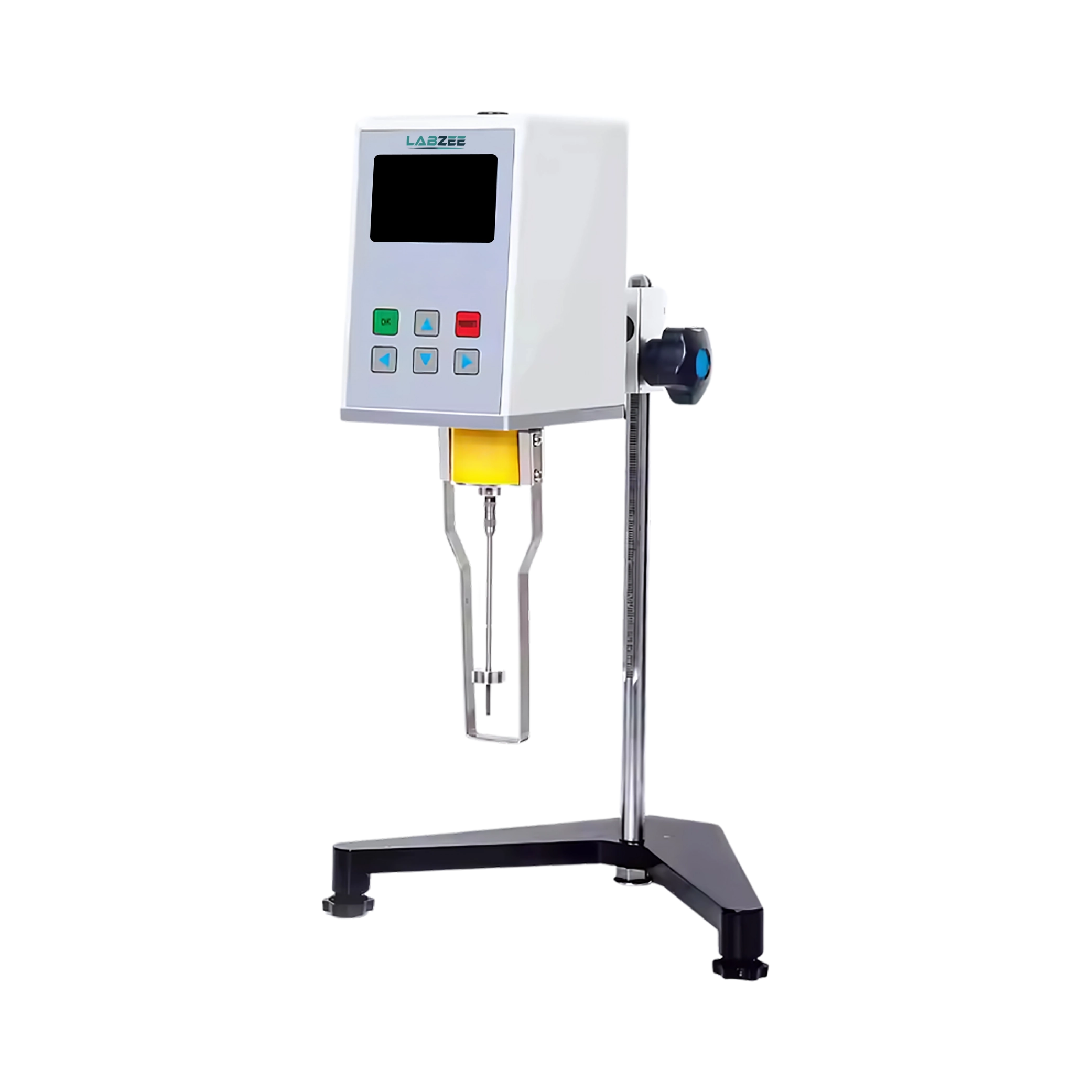

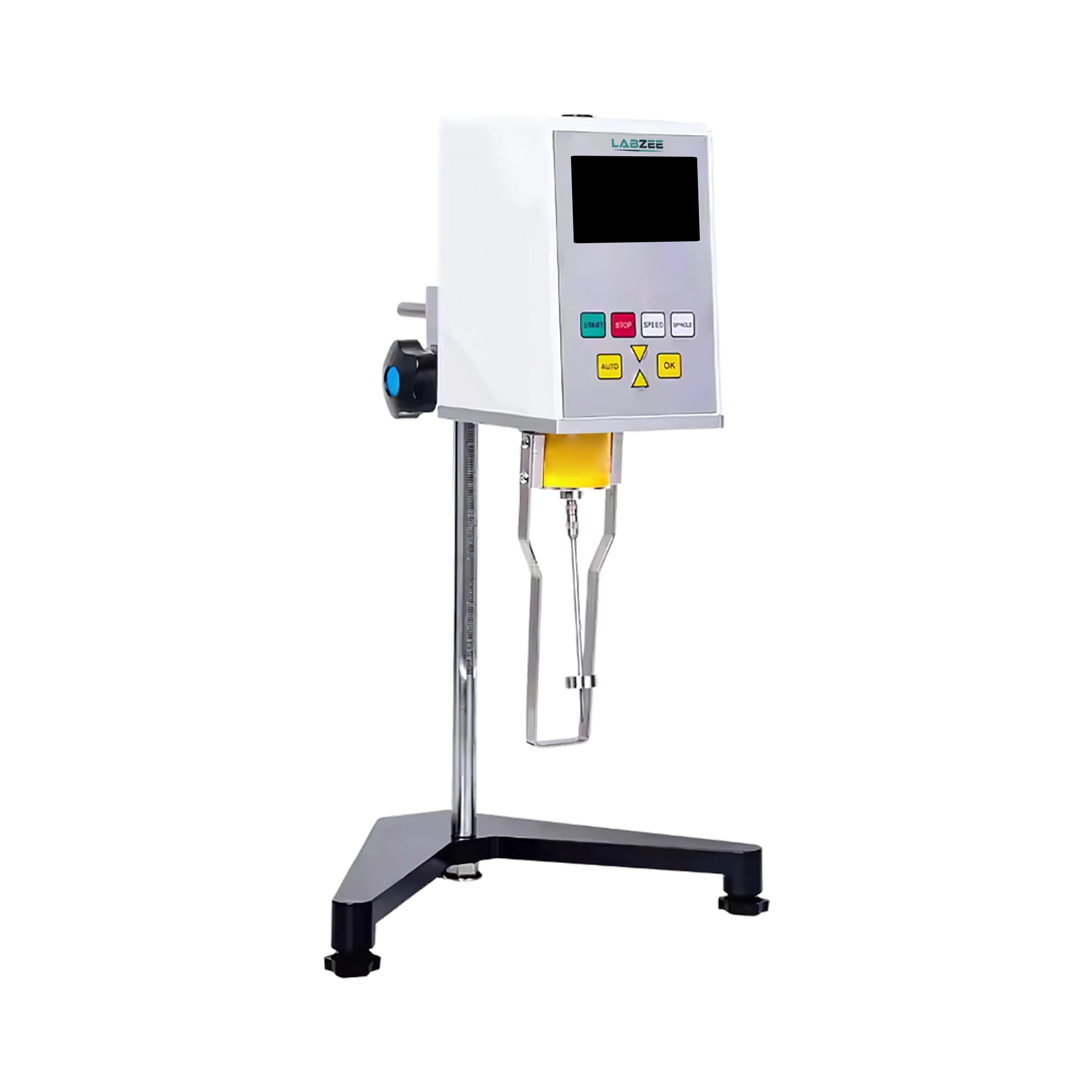

The Labzee Viscosity Tester BZVT-506 is high-performance instruments with a wide measurement range of 1 to 600,000 mPa.s. It offers multiple rotational speeds (0.1, 0.3, 0.6, 1.5, 3, 6, 12, 30,60rpm/min) and versatile spindle system for different fluid types. Its user-friendly LCD display offers clear real-time readings, ensuring ease of operation. Our Viscosity Tester BZVT-506 with its high accuracy and durable design, is ideal for industries such as pharmaceuticals, food, beverage and coatings.
| Measurement Range | 1 to 600,000 mPa.s |
| Rotor Speed | 0.1, 0.3, 0.6, 1.5, 3, 6, 12, 30,60rpm/min |
| Spindles | No.1, 2, 3, 4 |
| Error | 2% |
| Measurement Accuracy | 2% |
| Working Condition | 5 to 40° Temperature |
| Display | LCD |
| Communication Interface | RS232 |
| Power consumption | 12W |
| Power Supply | 110V - 220V |
| Package Dimension | 53×30×46 |
| Net Weight | 15Kg |
| Gross Weight | 20 Kg |
Software
Temperature Sensor
Spindle No.0
Adaptor
Pillar
User Manual
Spindle No.1
Spindle No.2
Spindle No.3
Spindle No.4
Spindle Shield
Our Viscosity Tester BZVT-506 is ideal for the oils and fats, paints and coatings, food, pharmaceutical, cosmetics, textile, and chemical industries, accurately measuring and controlling fluid viscosity.
