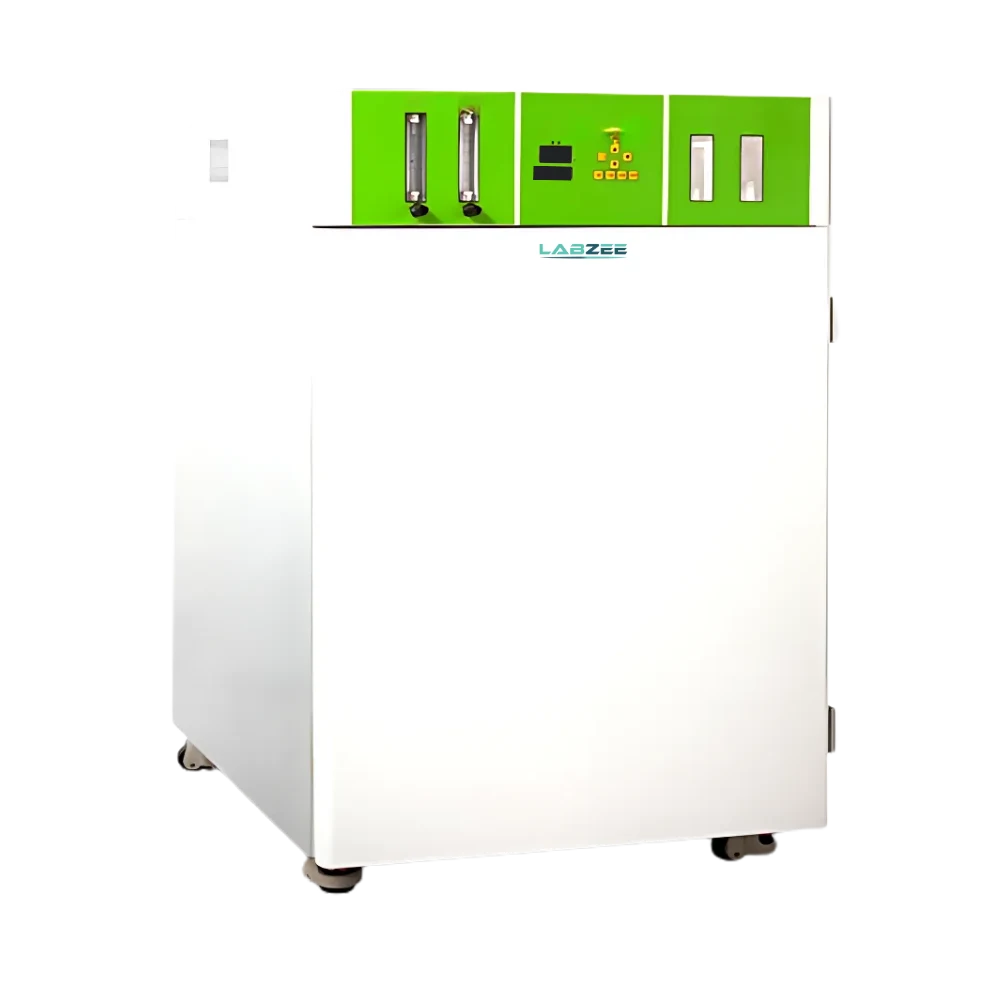

Labzee Air Jacket CO2 Incubator BZJI-502 features a spacious 160L chamber, designed for the reliable cultivation of delicate biological samples. It delivers uniform heat distribution with ±0.2°C accuracy, enhanced by fan-forced convection to ensure a stable temperature environment. The stainless-steel interior, combined with air ducting, vapor humidification, and UV light, helps maintain a sterile and controlled atmosphere. Its direct-reading flow meter allows precise CO2 regulation, while the PID microprocessor ensures consistent multi-zone temperature control. Our Air Jacket CO2 Incubator BZJI-502 is ideal for high-throughput laboratories that require dependable, contamination-free incubation.
| Chamber Volume | 160L |
| CO2 Range | 0 to 20% |
| Operating Temperature | +18°C ~ 30°C |
| Temperature Range | RT +3°C to 60°C |
| Temperature Stability | Less than ±0.2°C |
| Temperature Uniformity | Less than ±0.3°C |
| Humidity Method | Natural Vaporization |
| Timing Range | 1 to 9999 minutes / No timing |
| Power Supply | AC 220V, 50Hz |
| Power Consumption | 900W |
| Chamber Size (W×D×H) | 50×50×65cm |
| Exterior Size (W×D×H) | 69×69×103 |
| Package Dimension | 70×78×118 |
| Net Weight | 75 Kg |
| Gross Weight | 110 Kg |
3 Perforated Shelves (Expandable to 13)
Labzee Air Jacket CO2 Incubator BZJI-502 is ideal for cell culture, microbial growth, pharmaceutical testing, clinical diagnostics, and tissue engineering where precise CO2 and temperature control are critical.
Frequently Asked Questions
1: Is the chamber material of the Air Jacket CO2 Incubator BZJI-502 suitable for sterile environments?
Yes, the Air Jacket CO2 Incubator BZJI-502 features a polished stainless-steel inner chamber that is corrosion-resistant and easy to disinfect. This makes it ideal for maintaining sterility in microbiology, tissue culture, and pharmaceutical applications.
2: How does the fan-assisted convection system work in the BZJI-502?
The Air Jacket CO2 Incubator BZJI-502 is equipped with a fan-assisted convection system that circulates heated air uniformly throughout the chamber. This design eliminates temperature gradients and ensures even CO2 distribution, preserving consistent environmental conditions for sensitive cultures.
3: What parameters can be controlled or monitored on the BZJI-502?
The BZJI-502 offers a digital control panel that allows users to set and monitor key parameters such as chamber temperature and CO2 concentration. It also features LED indicators to display operational statuses and system alerts, ensuring accurate and real-time monitoring.
4: Is the humidification system in the BZJI-502 automated?
The Air Jacket CO2 Incubator BZJI-502 uses a passive vapor-based humidification system. A built-in water tray allows for natural evaporation, maintaining optimal humidity without the need for mechanical pumps—helping to prevent sample dehydration.
5: How does the UV sterilization system in the BZJI-502 help maintain cleanliness?
The BZJI-502 features an integrated UV-C sterilization lamp that disinfects the internal chamber air and surfaces. This built-in system helps reduce microbial contamination between uses, promoting aseptic conditions with less manual intervention.
6: What alarms or safety features are included in the BZJI-502?
The Air Jacket CO2 Incubator BZJI-502 is equipped with multiple safety features, including audio-visual alarms for over-temperature, low CO2 supply, water shortage, and system malfunctions. These safeguards are designed to protect valuable samples and maintain uninterrupted operation.
7: What are CO2 incubators used for?
Labzee Air Jacket CO2 Incubators maintain optimal environmental conditions—temperature, humidity, and CO2 concentration—for the cultivation of cell cultures. They are widely used in microbiology, IVF, biotechnology, and pharmaceutical research labs.
8: What materials are used in the internal chamber constructions?
The inner chambers of Labzee Air Jacket CO2 Incubators are made of corrosion-resistant stainless steel, offering durability, easy disinfection, and suitability for sterile laboratory environments.
9: How are CO2 concentrations monitored and controlled?
Labzee Air Jacket CO2 Incubators use high-precision NDIR (non-dispersive infrared) CO2 sensors and PID control systems to maintain stable CO2 levels with ±0.1% accuracy across all models.
10: What safety features do Air Jacket CO2 Incubators include?
These incubators include over-temperature protection, CO2 deviation alarms, door-open alerts, and automatic recovery features to protect samples and ensure uninterrupted operation.
11: How does the fan-assisted airflow system work?
Labzee Air Jacket CO2 Incubators feature built-in fans that circulate heated air uniformly throughout the chambers. This ensures consistent temperature and CO2 distribution, promotes stable culture environments, and enables rapid recovery after door openings.
