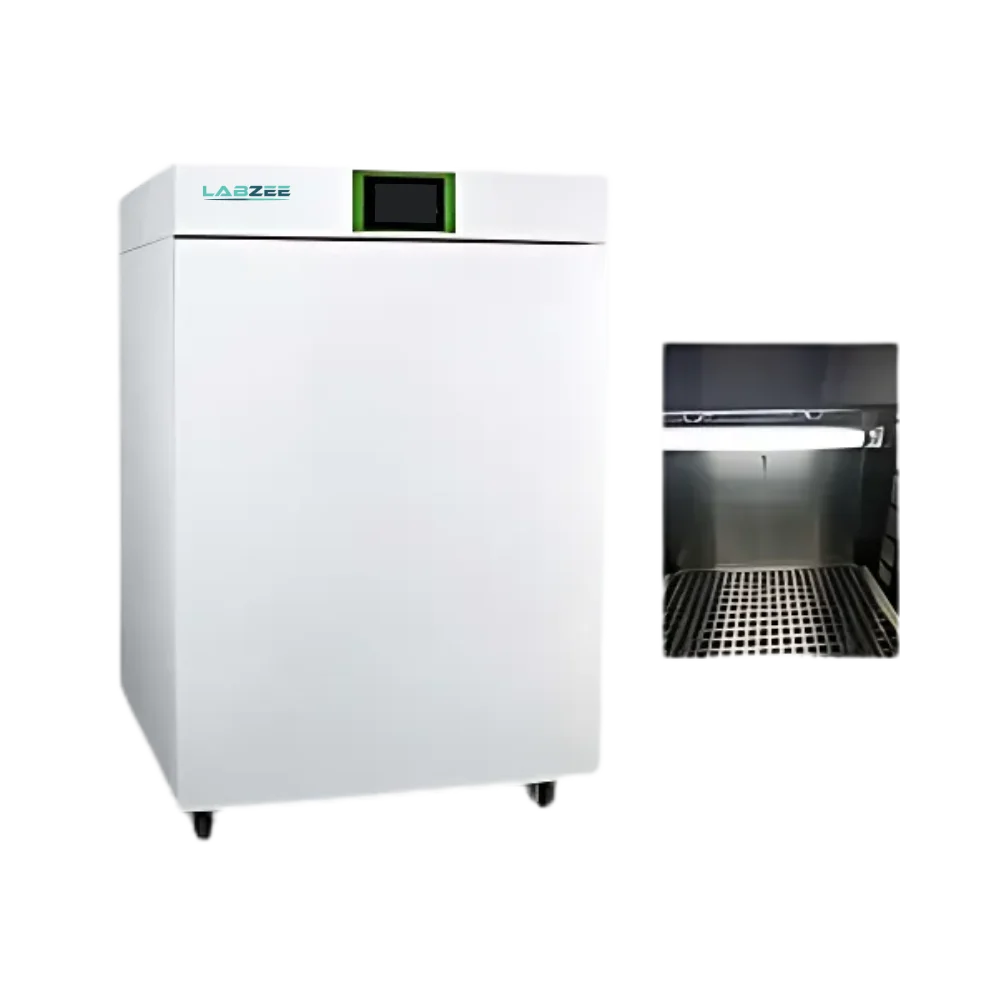

Labzee Air Jacket CO2 Incubator BZJI-505 offers touchscreen microcomputer control for precise, high-performance incubation. It maintains CO2 levels from 0 to 20% with ±0.1% accuracy using a reliable NDIR infrared sensor and gold-plated probes. The stainless-steel interior and powder-coated steel exterior ensure durability and corrosion resistance for long-term laboratory use. It also includes automatic shutoff of the fan and CO2 valve during door openings to reduce contamination risk. Our Air Jacket CO2 Incubator BZJI-505 is ideal for research labs requiring precise environmental control and advanced contamination protection.
| Chamber Volume | 80L |
| CO2 Range | 0 to 20% |
| CO2 Control Accuracy | ±0.1% |
| Operating Temperature | +18°C ~ 30°C |
| Temperature Range | RT +5°C to 60°C |
| Temperature Stability | Less than ±0.2°C |
| Temperature Uniformity | Less than ±0.3°C |
| Humidity Method | Natural Vaporization |
| Convection | Forced Air Convection |
| Testing Hole on Inner Door (Diameter) | 16mm |
| Power Supply | AC 220V, 50Hz |
| Power Consumption | 600W |
| Chamber Size (W×D×H) | 41×44×51cm |
| Exterior Size (W×D×H) | 56×64×90cm |
| Net Weight | 55 Kg |
| Gross Weight | 85 Kg |
2 Perforated Shelves (Expandable to 10)
Labzee Air Jacket CO2 Incubator BZJI-505 is ideally suited for applications in medicine, biology, chemistry, and agricultural science, supporting the cultivation of cells, tissues, and bacteria.
Frequently Asked Questions
1: What is the chamber capacity of Air Jacket CO2 Incubator BZJI-505?
The Air Jacket CO2 Incubator BZJI-505 offers an 80-liter chamber, providing ample space for cell cultures and biological samples in various laboratory settings.
2: What is the CO2 concentration range and control accuracy?
Air Jacket CO2 Incubator BZJI-505 supports a CO2 concentration range from 0 to 20%, with a high control accuracy of ±0.1%, ensuring stable and precise culture conditions.
3: What temperature range does Air Jacket CO2 Incubator BZJI-505 support?
The temperature range is from ambient temperature +5°C up to 60°C, with excellent thermal stability of less than ±0.2°C and uniformity better than ±0.3°C.
4: What type of temperature control system is used?
The Air Jacket CO2 Incubator BZJI-505 employs a microprocessor-based PID control system, which allows precise and responsive temperature and CO2 adjustments to maintain stable internal conditions.
5: How does the air jacket structure benefit temperature uniformity?
The air jacket design, paired with forced air convection, provides consistent heat distribution throughout the chamber, reducing temperature fluctuations and improving uniformity (±0.3°C).
6: Can the incubator be used in environments with varying room temperatures?
Yes, Air Jacket CO2 Incubator BZJI-505 operates efficiently in ambient conditions ranging from +18°C to 30°C, making it suitable for most standard laboratory environments.
7: What safety features are included?
The incubator includes safeguards such as automatic shutdown of the fan and CO2 intake during door opening, along with alarms for over-temperature, power failure, and gas regulation issues (in some models).
8: What makes Air Jacket CO2 Incubator BZJI-505 suitable for sensitive cultures?
Its precise CO2 and temperature control, humidity stability via natural vaporization, and contamination-reducing mechanisms (like fan shutoff) make it ideal for culturing sensitive cells and tissues.
9: What are CO2 incubators used for?
Labzee Air Jacket CO2 Incubators maintain optimal environmental conditions—temperature, humidity, and CO2 concentration—for the cultivation of cell cultures. They are widely used in microbiology, IVF, biotechnology, and pharmaceutical research labs.
10: What materials are used in the internal chamber constructions?
The inner chambers of Labzee Air Jacket CO2 Incubators are made of corrosion-resistant stainless steel, offering durability, easy disinfection, and suitability for sterile laboratory environments.
11: How are CO2 concentrations monitored and controlled?
Labzee Air Jacket CO2 Incubators use high-precision NDIR (non-dispersive infrared) CO2 sensors and PID control systems to maintain stable CO2 levels with ±0.1% accuracy across all models.
12: What safety features do Air Jacket CO2 Incubators include?
These incubators include over-temperature protection, CO2 deviation alarms, door-open alerts, and automatic recovery features to protect samples and ensure uninterrupted operation.
13: How does the fan-assisted airflow system work?
Labzee Air Jacket CO2 Incubators feature built-in fans that circulate heated air uniformly throughout the chambers. This ensures consistent temperature and CO2 distribution, promotes stable culture environments, and enables rapid recovery after door openings.
