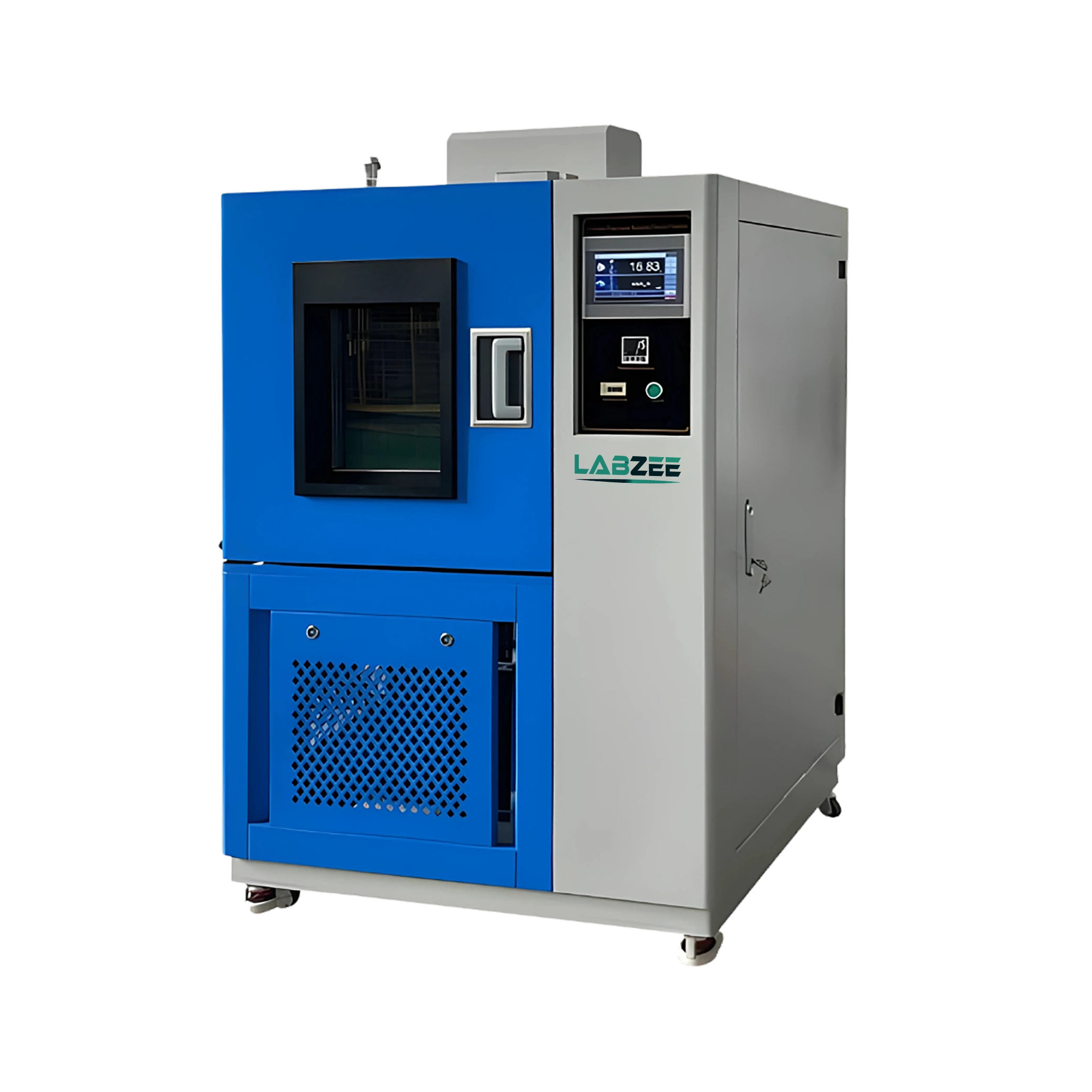

High Low-Temperature Alternating Climatic Chamber BZAC-501 tests the performance of materials under fluctuating temperature and humidity conditions. It offers a wide temperature range from -70°C to +150°C and humidity levels from 20% to 98% R.H. The chamber has a durable steel exterior with electrostatic coating and fiberglass-polyurethane insulation for thermal efficiency. It is designed to prevent leaks, power outages, and blown fuses, ensuring consistent and reliable testing in harsh conditions. Our High Low-Temperature Alternating Climatic Chamber BZAC-501 is ideal for testing products under extreme temperature and humidity, ensuring performance and reliability.
| Capacity | 50 L |
| Temperature Range | -70°C to +150°C |
| Humidity Range | 20% to 98% R.H |
| Humidity Bias | +2 to 3 % R.H |
| Temperature Fluctuation | ≤±0.5°C |
| Temperature Uniformity | ≤2°C |
| Heating Rate | 2 to 3°C/min |
| Cooling Rate | 0.7 to 1°C/min |
| Timing | 1 sec to 9999 Hour |
| Power Supply | AC220V·50HZ / 380V·50HZ |
| External Materials | A3 Steel Plate, Surface Electrostatic Spraying |
| Internal Materials | High Quality SUS304 Stainless Steel Plate |
| Insulation Materials | Superfine Fiberglass Wool or Polyurethane Foam |
| Controller | TEM1880 Programmable Touch Screen |
| Humidification Mode | Shallow Slot Humidification, Electric Heating Steam Humidification Mode |
| Dehumidification Mode | Refrigeration Dehumidification Mode |
| Refrigerant | R404A / R23 |
| Cooler | Copper Tube Aluminum Fin Cooler |
| Internal Dimension W×D×H (mm) | 350×320×450 |
| External Dimension W×D×H (mm) | 950×950×1400 |
| Net Weight | 250 Kg |
| Gross Weight | 300 Kg |
The High Low-Temperature Alternating Climatic Chamber BZAC-501 simulates varying temperature and humidity conditions to test the performance of materials and products. It is widely used in electronics, automotive, aerospace, telecommunications, pharmaceuticals, and scientific research.
