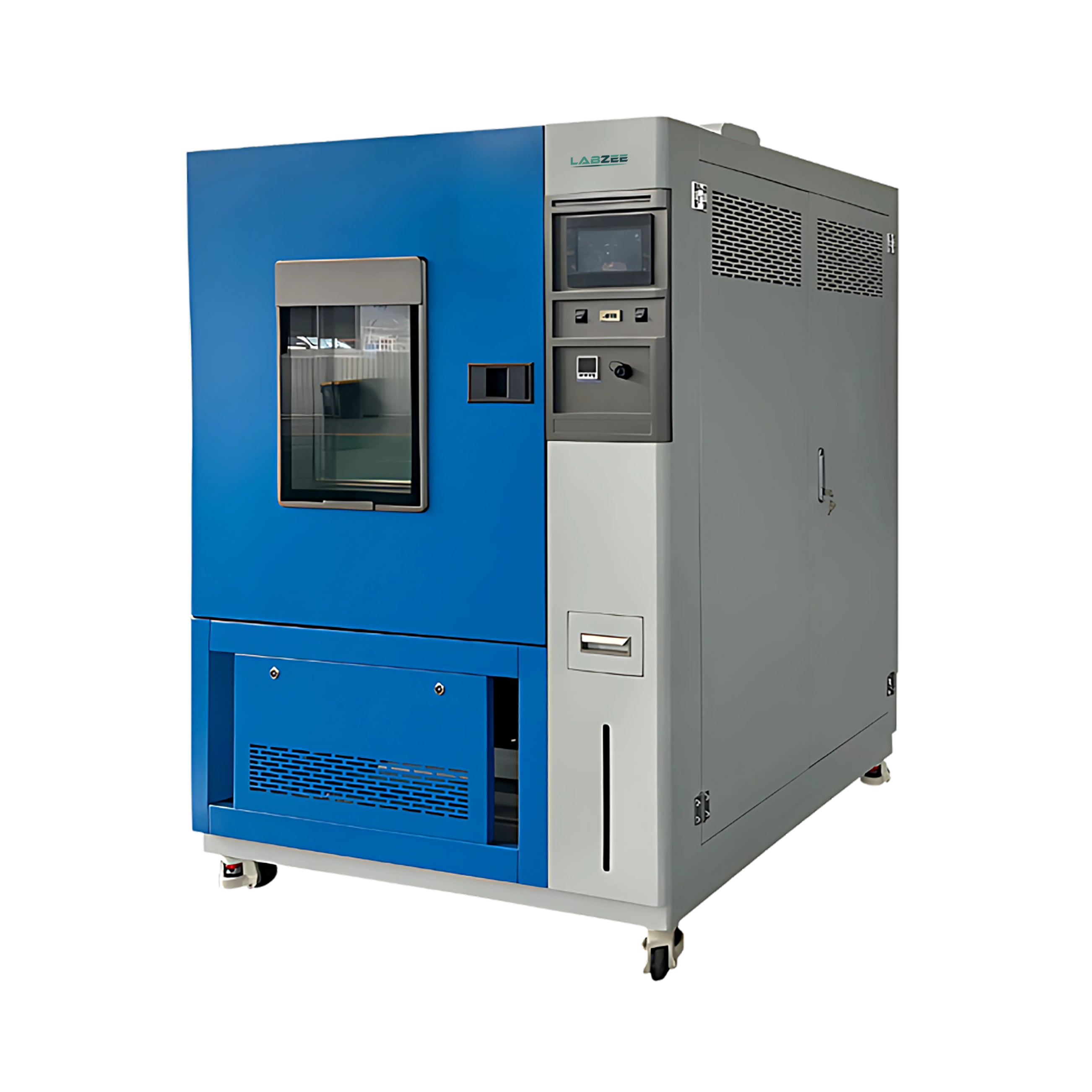

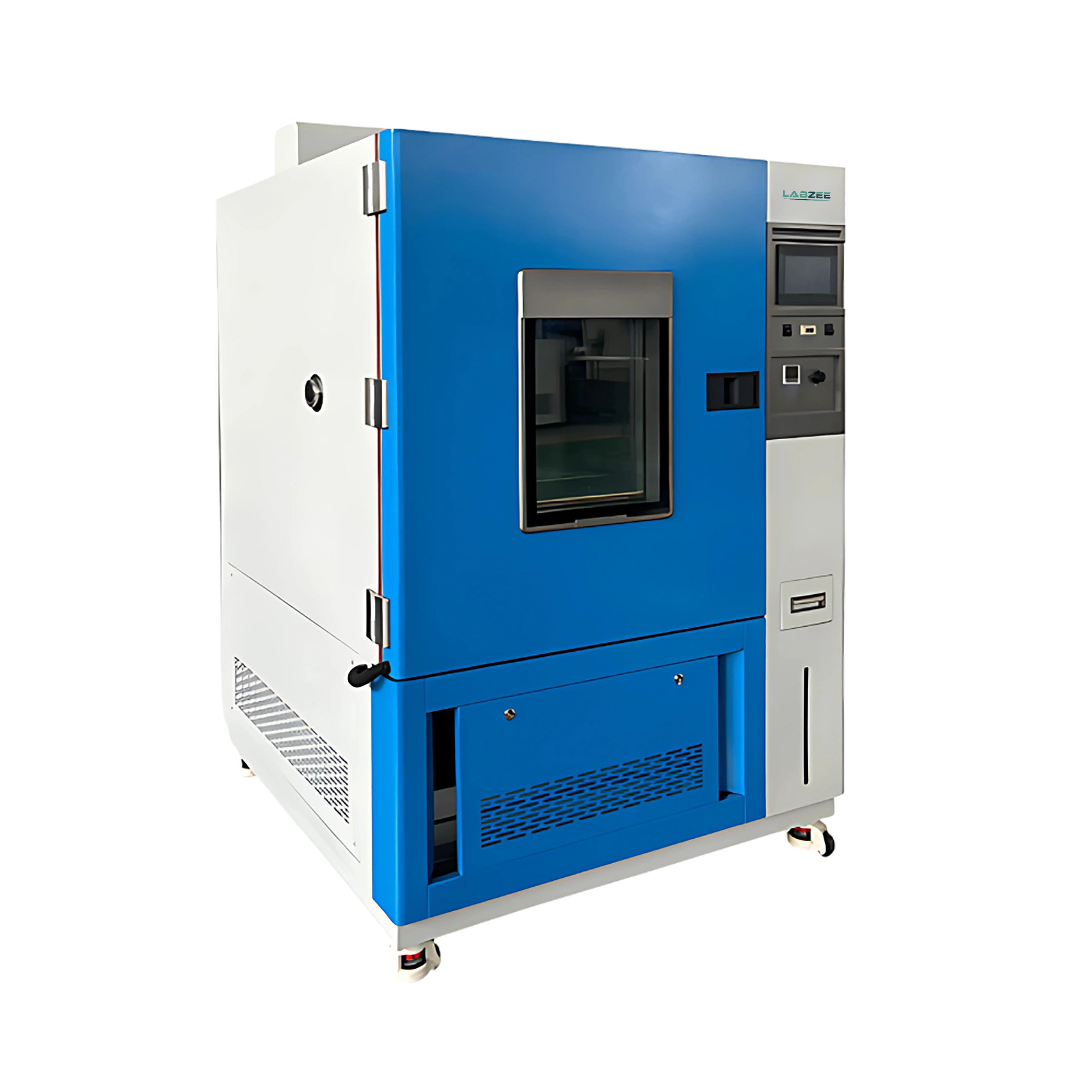

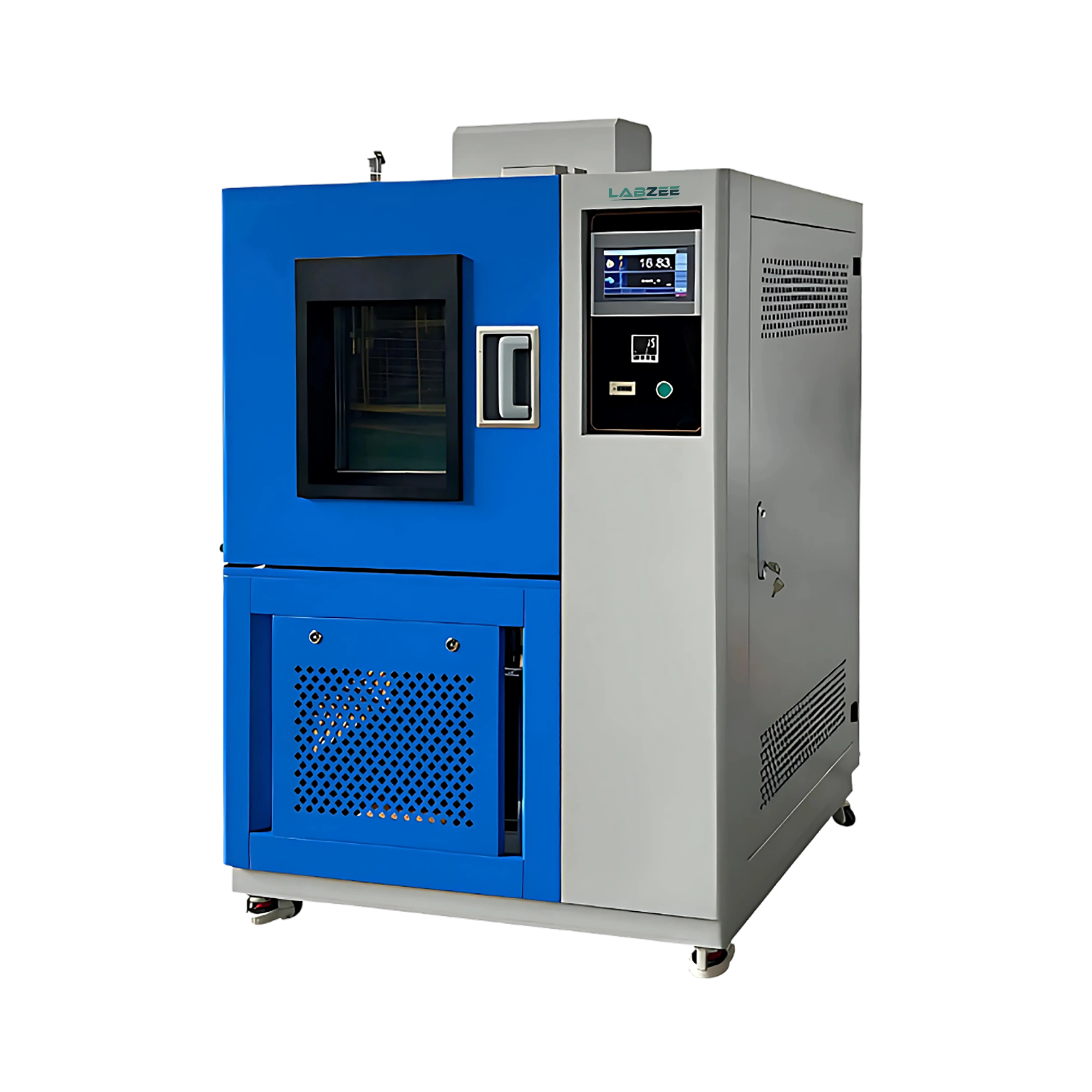

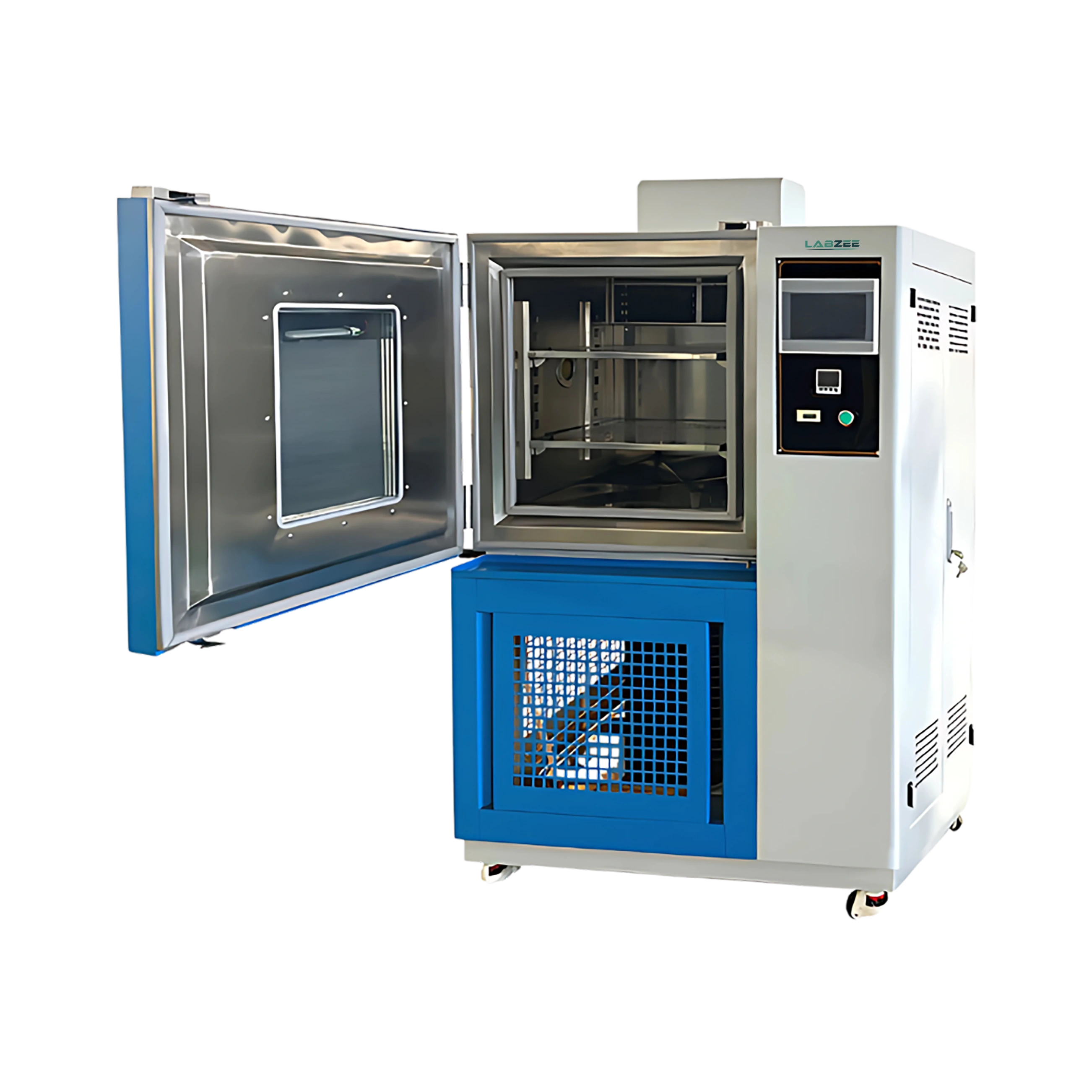

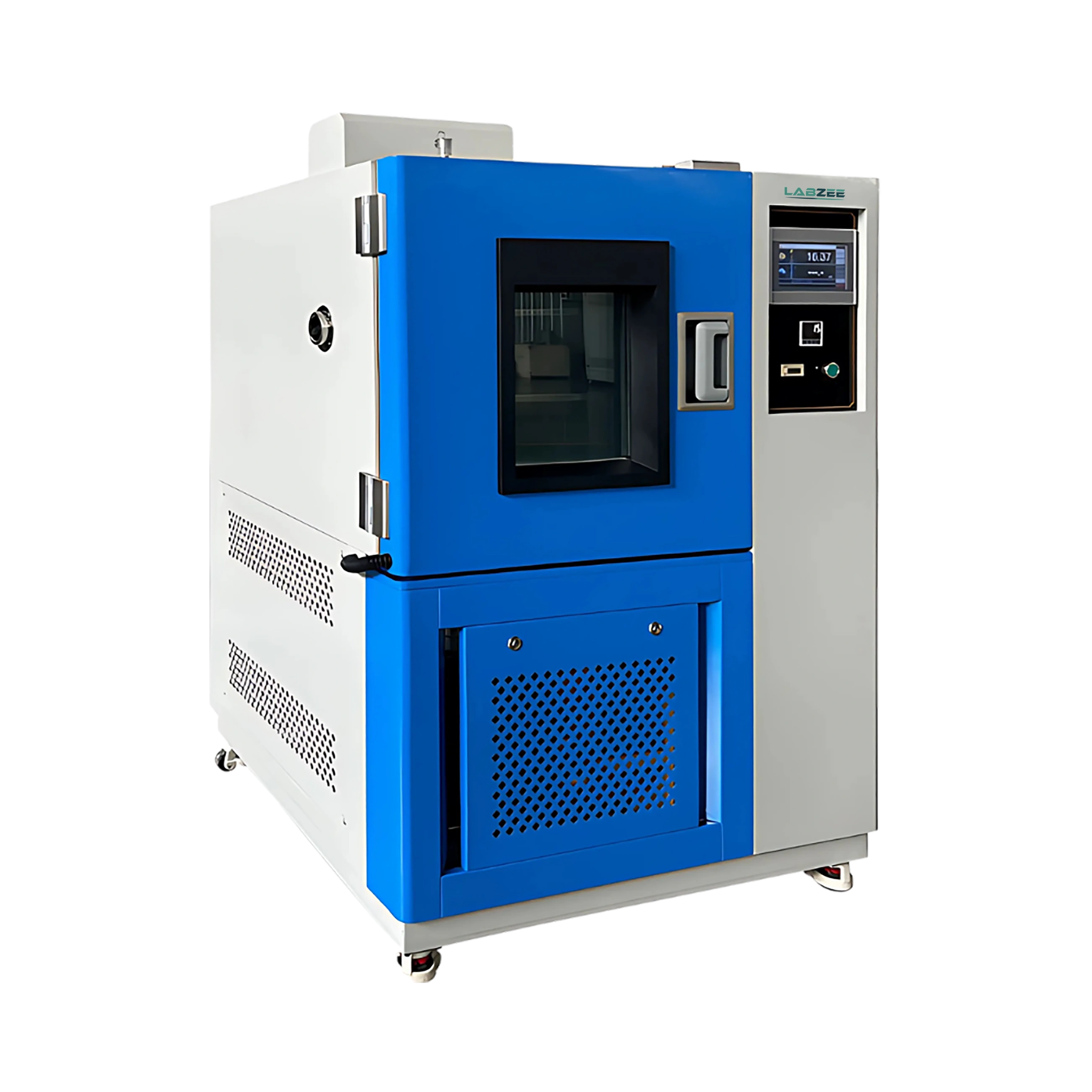

Constant Temperature Humidity Climatic Chamber BZHT-502 is designed for precise environmental testing of materials. It features a 100L capacity with a temperature range of 0°C to 100°C. This device is constructed with a durable steel exterior and insulated with fiberglass wool and polyurethane foam. It has casters for easy movement and a silicone-coated door seal for enhanced durability. Our Constant Temperature Humidity Climatic Chamber BZHT-502 delivers reliable performance in both high and low-temperature testing environments.
| Capacity | 100 L |
| Temperature Range | 0°C to +100°C |
| Humidity Range | 30% to 98% R.H |
| Humidity Bias | +2 to 3 % R.H |
| Temperature Fluctuation | ≤±0.5°C |
| Temperature Uniformity | ≤2°C |
| Timing | 1S to 9999H |
| Power Supply | AC220V·50HZ/380V·50HZ |
| External Material | A3 Steel Plate, Surface Electrostatic Spraying |
| Internal Material | High Quality SUS304 Stainless Steel Plate |
| Insulation Materials | Superfine Fiberglass Wool / Polyurethane Foam |
| Controller | TEM1880 Programmable Touch Screen |
| Humidification Mode | Shallow Slot Humidification, Electric Heating Steam Humidification Mode |
| Dehumidification Mode | Refrigeration Dehumidification Mode |
| Refrigerant | R404A / R23 |
| Cooler | Copper Tube Aluminum Fin Cooler |
| Internal Dimension W×D×H (mm) | 500 × 400 × 500 |
| External Dimension W×D×H (mm) | 1050 × 1030 × 1750 |
| Net Weight | 300 kg |
| Gross Weight | 350 kg |
The Constant Temperature Humidity Climatic Chamber BZHT-502 is used to test material and product performance under controlled temperature and humidity conditions. It is ideal for use in electronics, pharmaceuticals, automotive, and research labs.
