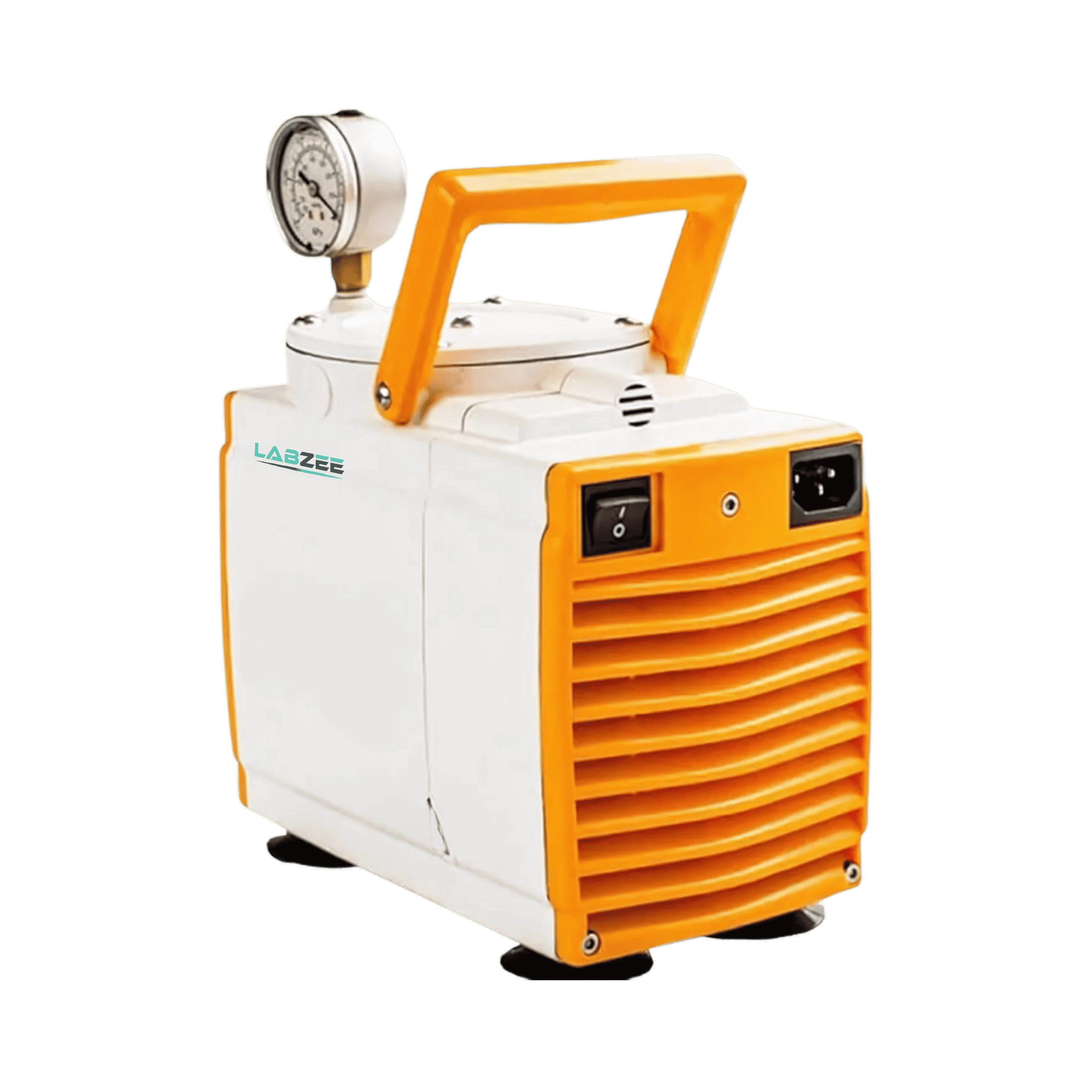

Labzee Diaphragm Vacuum Pump BZDP-501 offers high efficiency with a flow rate of 20 L/min and an ultimate vacuum of 200 mbar. It features a single pump head and operates at a noise level below 60 DB, ensuring quiet performance. The frictionless membrane design operates without heat or friction, ensuring smooth and efficient performance. Its PTFE diaphragm and NBR valves provide excellent durability and corrosion resistance. Our Diaphragm Vacuum Pump BZDP-501 is portable and compact, ideal for applications like filtration, drying, degassing, and suction.
| Speed (L/Min) | 20 (L/Min) |
| Ultimate Vacuum | 200mbar |
| Ultimate Pressure | 0.08 MPa |
| Pump Head | 1 |
| Noise Level | Less than 60 DB |
| Ambient Temperature | 7 to 40°C |
| Body Temperature | Less than 55 |
| Diaphragm Material | PTFE |
| Valves Material | NBR |
| Motor Power | 160W |
| Power Supply | 220V AC, 50Hz |
| Package Dimension | 42×26 × 38 cm |
| Gross Weight | 8.000 Kg |
Closure Bottle
Power Cord
Manual Instruction
Vacuum Tube
Certificate
Our Diaphragm Vacuum Pump BZDP-501 is ideal for applications such as filtration, drying, degassing, and suction in laboratories, medical, pharmaceutical, food, and research industries.
