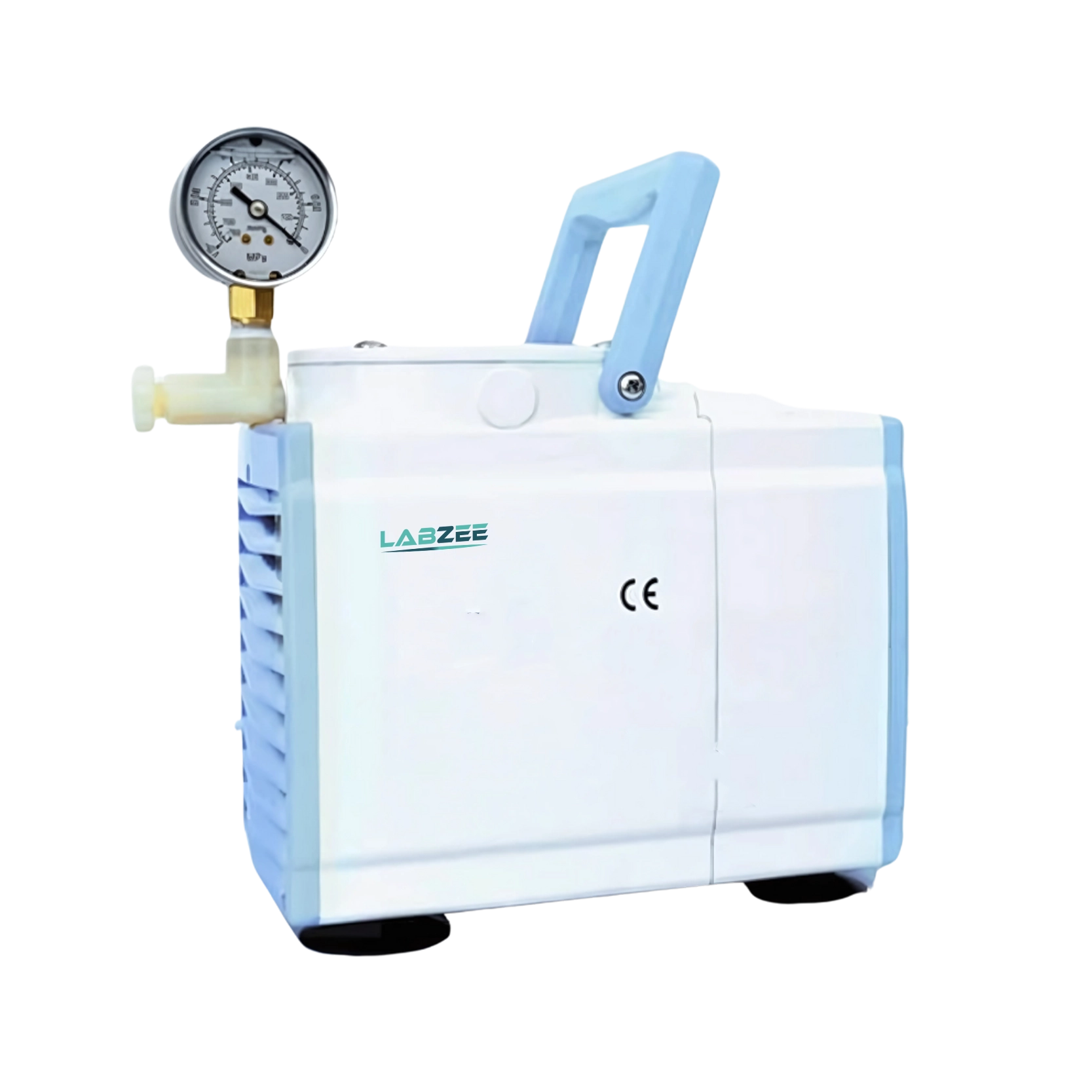

Labzee Diaphragm Vacuum Pump BZDP-510 is a reliable pump with a flow rate of 20 L/min and an ultimate vacuum of 200mbar. It offers single-head efficiency with ultimate pressure of 0.08 MPa and quiet <60 dB operation. The pump is built with NBR diaphragm and valves to ensure resistance to wear and chemicals. Its pressure-adjustable design provides precise control. Our Diaphragm Vacuum Pump BZDP-510 is portable and eco-friendly, ideal for medical, industrial and laboratory applications.
| Speed (L/Min) | 20 (L/Min) |
| Ultimate Vacuum | 200mbar |
| Ultimate Pressure | 0.08Mpa |
| Pump Head | 1 |
| Inlet Diameter | 6mm |
| Outlet | Inner silencer |
| Noise Level | Less than 60 DB |
| Ambient Temperature | 7 to 40°C |
| Body Temperature | Less than 55 |
| Diaphragm Material | NBR |
| Valves Material | NBR |
| Motor Power | 160W |
| Power Supply | 220V AC, 50Hz |
| Product Dimension | 21.5 ×12× 23.5cm |
| Gross Weight | 7.5Kg |
Closure Bottle
Power Cord
Manual Instruction
Vacuum Tube
Certificate
Our Diaphragm Vacuum Pump BZDP-510 is perfect for medical devices, lab equipment, industrial automation, food processing, electronics manufacturing, HVAC systems, and packaging machinery.
