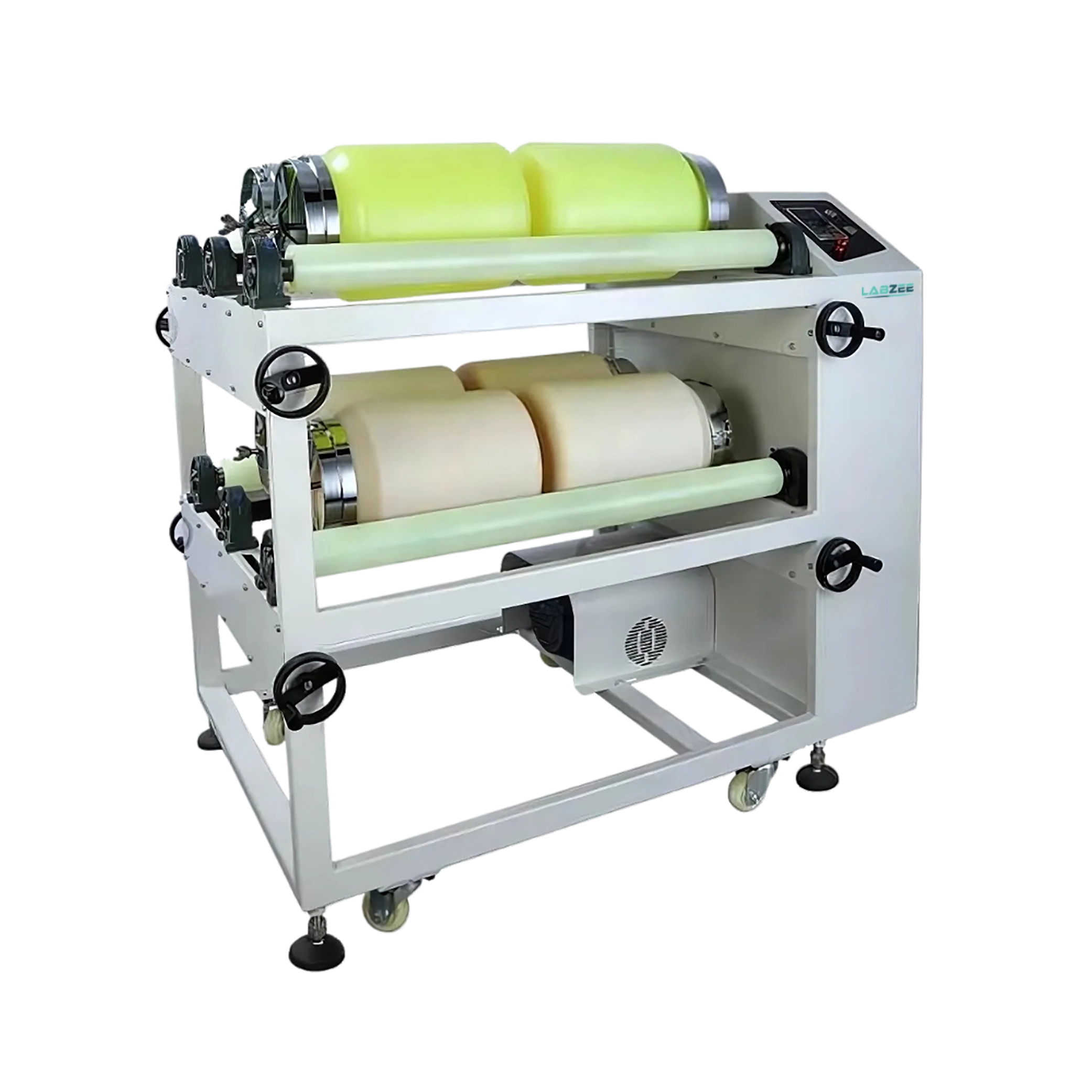

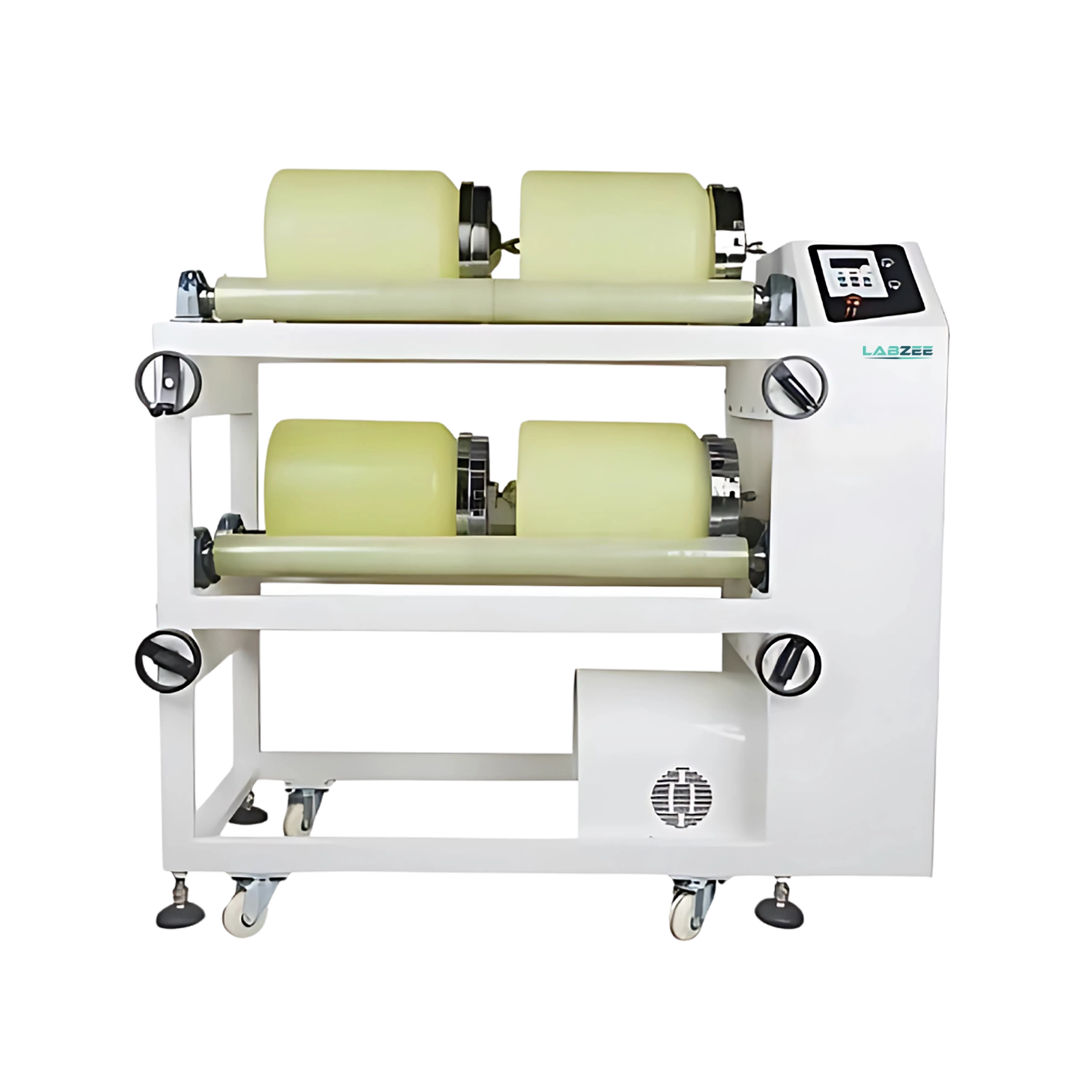

Eight Station Roller Ball Mill BZEBM-501 is designed for efficient and high-throughput milling of a wide range of materials. The ball mill has customizable roller spacing, adjustable by hand, enables flexibility in accommodating different jar sizes. It accommodates jar capacities ranging from 500 ml to 3L, ensuring versatility for various sample sizes. Its six rollers work seamlessly with a belt transmission system for smooth and consistent rotation, allowing for even grinding. Our Eight Station Roller Ball Mill BZEBM-501 is perfect for laboratories and research facilities, offering precise milling and mixing for both small-scale and large-scale applications.
| Jar Capacity | 500ml-3L |
| Diameter of Jar | φ70-φ200 mm |
| No. of Stations | 2/8 Stations |
| Roller Speed | 5-720 rpm |
| Roller Dimension | φ58 × (250 × 2) mm |
| No. of Rollers | 6 |
| Transmission Mode | Belt |
| Adjustable Space by Hand | 76-230 mm |
| Power Consumption | 1.1 kW |
| Power Supply | 220V / 50Hz |
| Product Dimension | 106 × 78 × 110 cm |
| Gross Weight | 250 Kg |
Our Eight Station Roller Ball Mill BZEBM-501 is ideal for use in research and development laboratories requiring high-volume sample preparation. It is commonly used for mixing materials, grinding, and particle size reduction in industries such as ceramics, metallurgy, and pharmaceuticals.
Frequently Asked Questions
1: What is the benefit of having eight stations?
You can grind multiple samples at once, which saves you time and allows better comparison between different materials.
2: Can you use different jars on each station?
Yes, you can use different jars as long as they fit the size and weight limits of the mill.
3: Is this mill suitable for continuous operation?
Yes, you can run it continuously for extended periods, depending on your grinding requirements.
4: How do you set the grinding time?
Most models come with a digital timer, so you can easily set the grinding duration for your process.
5: Can you use this mill for metal powders?
Yes, you can grind metal powders safely using the proper jars and safety precautions.
6: What is an Eight Station Roller Ball Mill used for?
You can use it to grind and mix materials in multiple containers at the same time, making it ideal for labs handling different samples simultaneously.
7: How many samples can you process at once?
You can process up to eight different samples in one go, which helps you save time and improve productivity in batch operations.
8: Is it suitable for both wet and dry grinding?
Yes, you can use it for both wet and dry grinding depending on the material and your experiment requirements.
9: Can you control the speed on this mill?
Yes, most models let you adjust the speed so you can fine-tune the grinding process based on your material type.
10: Is it easy to maintain?
You’ll find it easy to maintain with minimal cleaning and straightforward access to components for regular checks.
