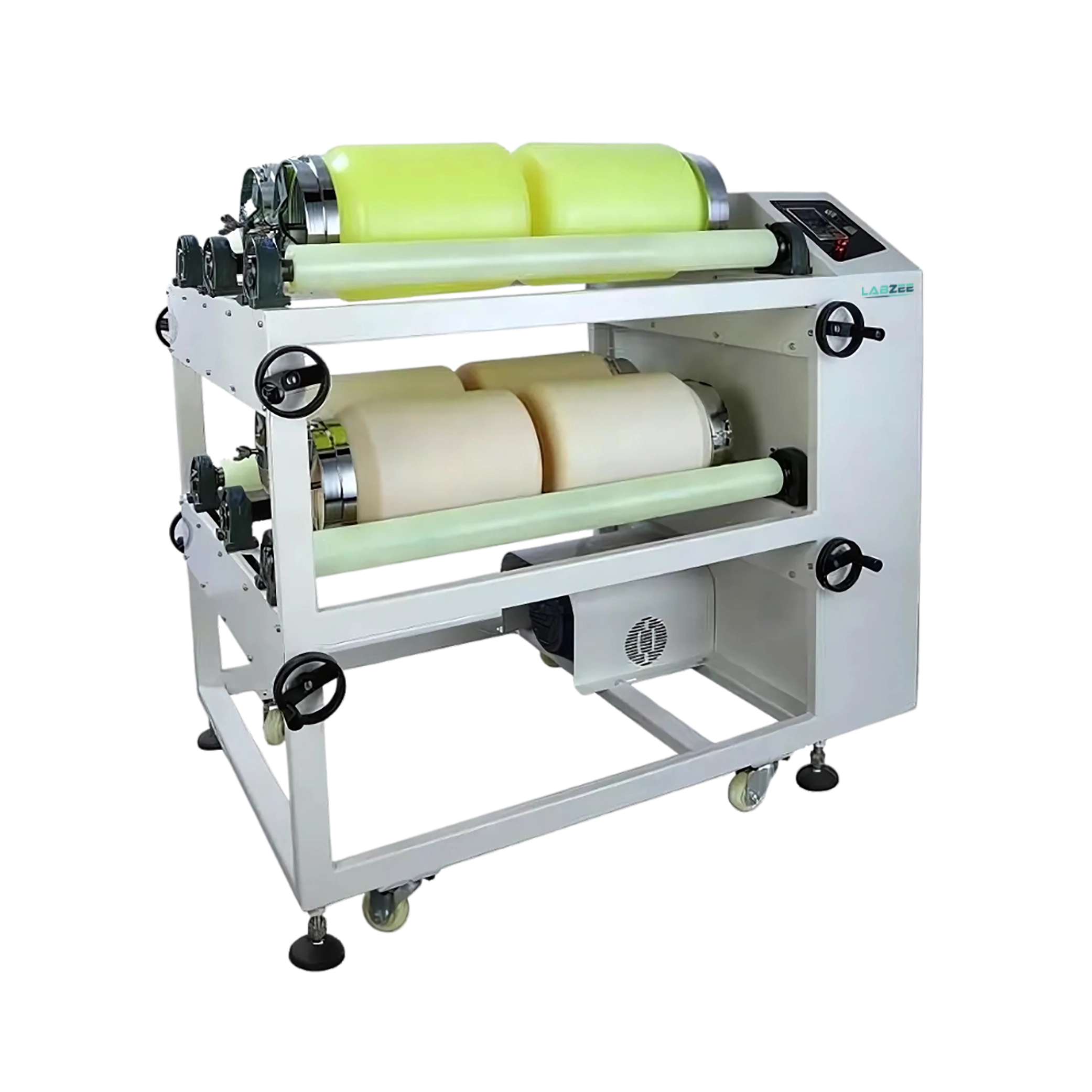

Eight Station Roller Ball Mill BZEBM-503 is a highly efficient laboratory ball mill, designed for high-performance grinding. This ball mill supports jar capacities ranging from 500 ml to 10L, offering flexibility in sample processing. It operates with six rollers and is powered through a belt transmission system, ensuring smooth and reliable operation. Its adjustable spacing feature allows for easy modification, accommodating a range of materials. Our Eight Station Roller Ball Mill BZEBM-503 is perfect for labs requiring versatility and consistent results in sample grinding.
| Jar Capacity | 500ml-10L |
| Diameter of Jar | Φ60-φ280 mm |
| No. of Stations | 2/8 Stations |
| Roller Speed | 5-720 rpm |
| Roller Dimension | Φ68 × (349 × 2) mm |
| No. of Rollers | 6 |
| Transmission Mode | Belt |
| Adjustable Space by Hand | 67-302 mm |
| Power Consumption | 3.0 kW |
| Power Supply | 380V / 50Hz |
| Product Dimension | 130 × 94 × 133 cm |
| Gross Weight | 429 Kg |
Our Eight Station Roller Ball Mill BZEBM-503 is ideal for use in material research and small-scale production, particularly in industries like ceramics, pharmaceuticals, and nanotechnology. Its ability to handle both large and small batches makes it perfect for labs working with diverse materials and requiring fine grinding. The mill is particularly effective in the preparation of raw materials, pigments, and powder composites, enhancing research in new material development.
Frequently Asked Questions
1: What is the ideal jar material?
You can use stainless steel, agate, zirconia, or tungsten carbide based on your sample type.
2: How long does grinding usually take?
Grinding time depends on your material but typically ranges from a few minutes to several hours.
3: Do you need to balance all stations?
Yes, you should balance the weight across stations for smooth and safe operation.
4: Can beginners use it easily?
Yes, the controls are user-friendly and suitable for both beginners and experienced users.
5: Does it require frequent lubrication?
Not frequently. Periodic maintenance with proper lubrication will keep it running smoothly.
6: What is an Eight Station Roller Ball Mill used for?
You can use it to grind and mix materials in multiple containers at the same time, making it ideal for labs handling different samples simultaneously.
7: How many samples can you process at once?
You can process up to eight different samples in one go, which helps you save time and improve productivity in batch operations.
8: Is it suitable for both wet and dry grinding?
Yes, you can use it for both wet and dry grinding depending on the material and your experiment requirements.
9: Can you control the speed on this mill?
Yes, most models let you adjust the speed so you can fine-tune the grinding process based on your material type.
10: Is it easy to maintain?
You’ll find it easy to maintain with minimal cleaning and straightforward access to components for regular checks.
