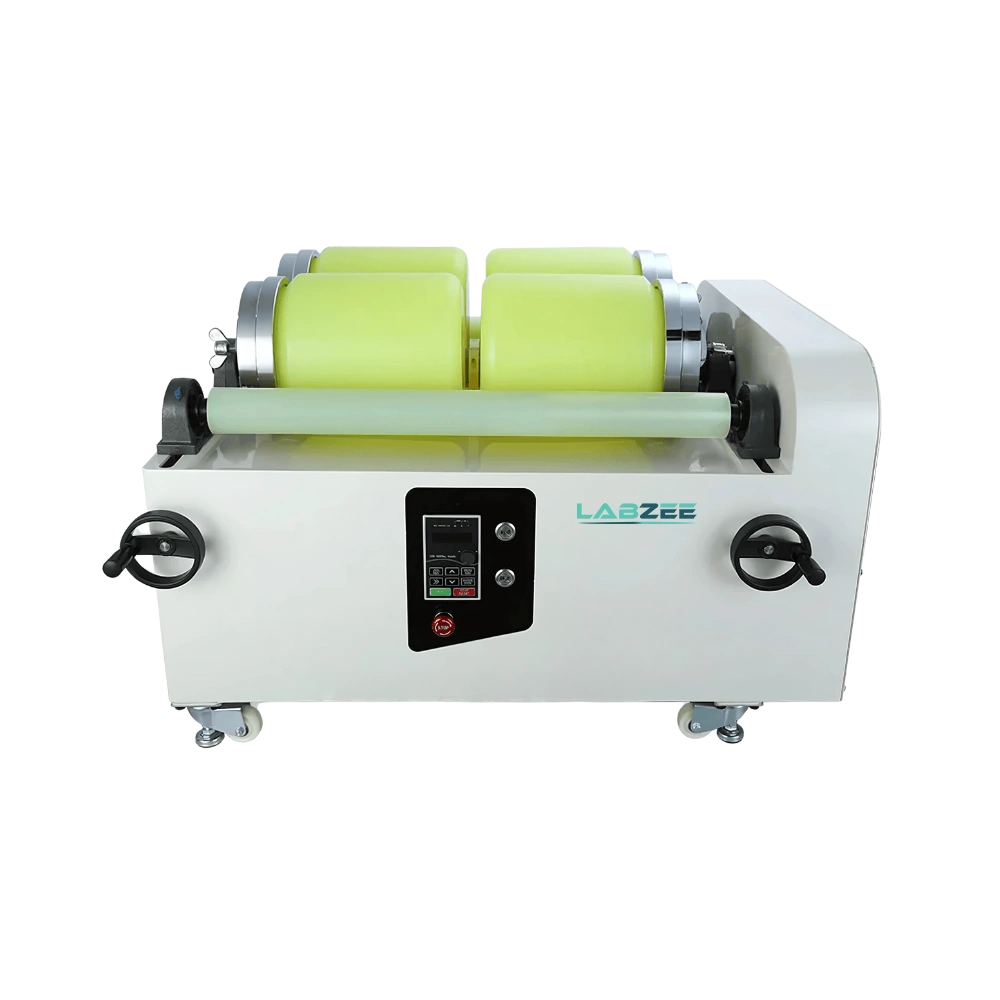

Four Station Roller Ball Mill BZBMM-505 is engineered for efficient and uniform processing of large-volume powder samples in demanding laboratory and pilot-scale environments. This Mill accommodates a Jar Capacity of 0.5-10 L and delivers adjustable roller speeds ranging from 5-720 rpm for precision control over diverse materials. It is equipped with four stable rollers, a belt-driven system, and flexible jar spacing to handle varied jar sizes and ensure smooth operation. Its sturdy construction and enhanced roller configuration provide high-performance output for extended usage. Our Four Station Roller Ball Mill BZBMM-505 is well-suited for ceramic processing, pharmaceutical formulation, composite powder research, metallurgy analysis, and material testing labs.
| Jar Capacity | 0.5-10 L |
| Jar Diameter | φ60-φ280 mm |
| No. of Stations | 1/4 Stations |
| Roller Speed | 5-720 rpm |
| Roller Dimension | φ68 × (349 × 2) mm |
| No. of Rollers | 4 |
| Transmission Mode | Belt |
| Adjustable Space by Hand | 67-230 mm |
| Power Consumption | 1500 W |
| Power Supply | 380V / 50Hz |
| Product Dimension | 108 × 64 × 128 cm |
| Net Weight | 162 Kg |
| Gross Weight | 208 Kg |
Our Four Station Roller Ball Mill BZBMM-505 offers stable, large-capacity grinding support across complex lab operations. It is ideal for use in advanced ceramic studies, solid dispersion development, composite reinforcement blending, battery material synthesis, and powder metallurgy.
Frequently Asked Questions
1: What kind of container should I use for milling?
ou can use high-quality jars made of materials like stainless steel, ceramic, or plastic. Choose containers that are durable and compatible with your sample.
2: How long does the milling process take?
The milling time can vary depending on the material and desired particle size but typically ranges from 30 minutes to several hours.
3: Is this machine suitable for high-energy milling?
Yes, the Four Station Roller Ball Mill is designed for high-energy milling, enabling efficient breakdown of hard materials into fine powders.
4: Can you use it to grind metallic ores?
Yes, the mill can grind metallic ores. However, for very hard materials, consider using tougher grinding balls like tungsten carbide.
5: Does the machine come with a warranty?
Yes, the Four Station Roller Ball Mill typically comes with a standard warranty, which covers defects in materials or manufacturing for a specified period.
6: What is a Four Station Roller Ball Mill used for?
A Four Station Roller Ball Mill is designed for grinding or mixing four samples at once. It is ideal for high-throughput laboratory applications, allowing simultaneous processing of multiple materials with consistent results.
7: Can different materials be processed at the same time in a Four Station Roller Ball Mill?
Yes, each station operates independently, so different materials can be milled simultaneously without cross-contamination, provided separate jars and media are used for each station.
8: Is the Four Station Roller Ball Mill suitable for continuous use?
Yes, it is built for durability and consistent operation. However, it’s essential to follow duty cycle recommendations, ensure proper ventilation, and conduct regular maintenance for safe, continuous performance.
9: What are the key advantages of using a Four Station Roller Ball Mill?
Its main advantages include increased sample throughput, space efficiency, and the ability to process multiple samples with different parameters at once. This makes it highly effective for research labs and small-scale production environments.
