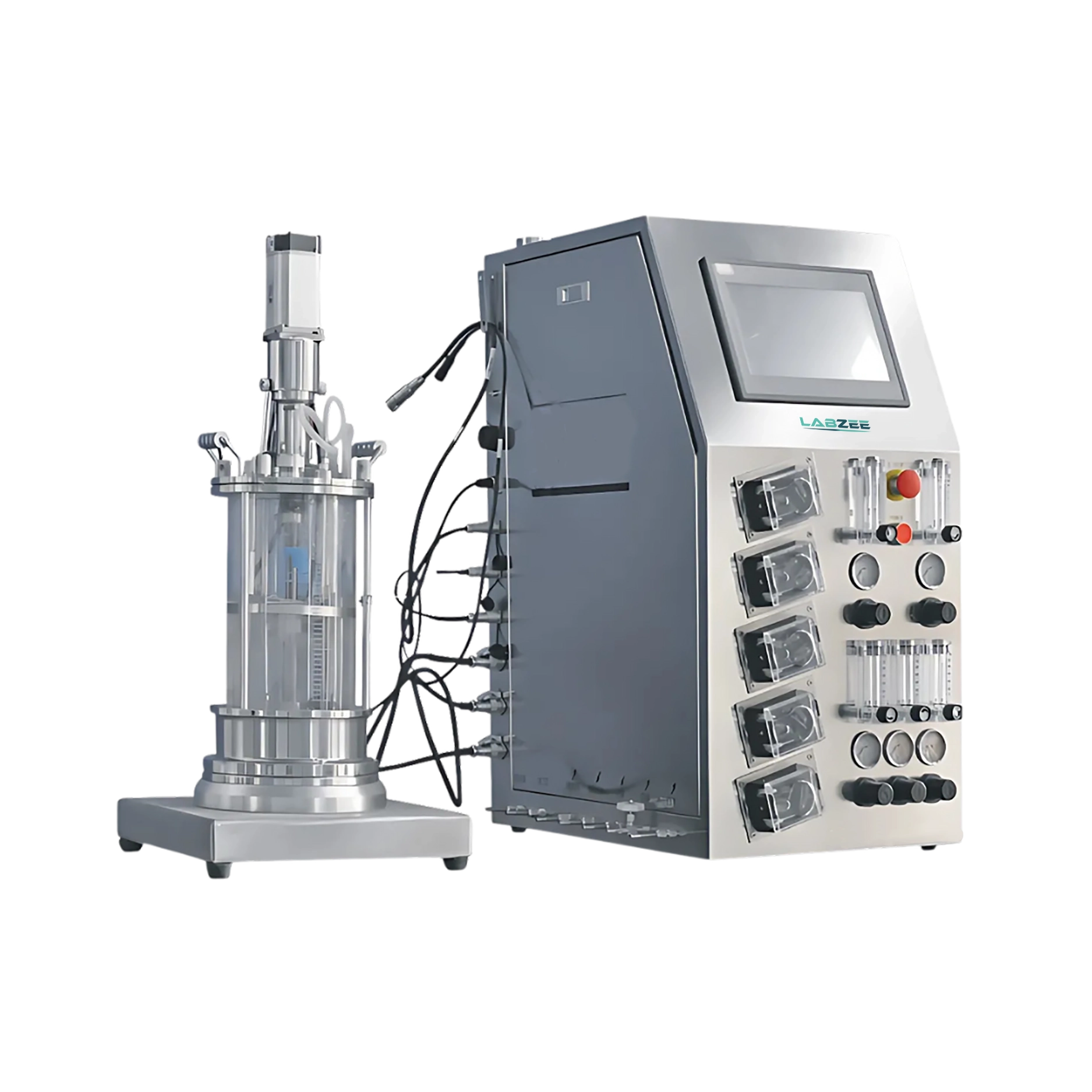

Labzee Glass Bioreactor BZGB-503 is an 8L system built for reliable small-to-mid scale cultivation of microbial and animal cells. Its modular controls and 10" touchscreen offer intuitive management of process parameters. The system includes dual stirring agitation, advanced sensors, and a real-time monitoring interface. Our Glass Bioreactor BZGB-503 is ideal for scalable lab studies and mid-range bioprocess research.
| Volume | 8L |
| Stir Speed | 50 to 500rpm |
| Stirring Mechanism | Pitched Blade + Fixed-Bed Paddle |
| PH Range | 2.00 to 12.00 ±0.1 |
| DO Range | 0 to 150% ±3% |
| Power Supply | AC 220V, 50Hz |
| Package Size (W×D×H) | 95cm × 70 cm × 115 cm |
| Net Weight | 105 Kg |
| Gross Weight | 135 Kg |
Remote Control PC With Software
Auto Gas Inlet System
Weight System
Manual Gas Control System
Agitation Control System
Ph Sensor
DO Sensor
Temperature Sensor
Foam Sensor
Peristaltic Pumps × 4 Pieces
Labzee Glass Bioreactor BZGB-503 is ideal for real-time visual monitoring, manual process control and small-to-mid scale cell culture applications in academic, research and biotech labs.
Frequently Asked Questions
1: What type of cultures are supported in the Glass Bioreactor BZGB-503?
The Glass Bioreactor BZGB-503 supports microbial, plant and animal cell cultures.
2: What sensors are included in the Glass Bioreactor BZGB-503?
It includes sensors for pH, DO, temperature and foam.
3: Is the touchscreen programmable on the Glass Bioreactor BZGB-503?
Yes, the 10" display allows user-defined parameter settings.
4: Can I upgrade the gas system in the Glass Bioreactor BZGB-503?
Yes, automatic gas inlet control is available as an optional feature.
5: Does the Glass Bioreactor BZGB-503 support continuous operation?
Yes, both continuous and batch modes are supported.
6: What applications suit the Glass Bioreactor BZGB-503 best?
It is best for process optimization, small pilot runs and medium-volume experiments.
7: What is the volume capacity of the Labzee Glass Bioreactors?
Labzee offers Glass Bioreactors in capacities 1L to 40L.
8: What control features are included with the Glass Bioreactor?
It includes manual gas control, agitation system, pH, DO, temperature and foam sensors, all monitored via a 10" touchscreen interface.
9: Can this system be integrated with external software?
Yes, with the optional Remote PC Control and software package, the system supports real-time remote monitoring and data management.
10: What are the optional accessories available for the Glass Bioreactor?
Optional accessories include: • Remote Control PC With Software (USD 5,250) • Auto Gas Inlet System (USD 6,750) • Weight System (Ohaus) (USD 5,250)
11: What industries typically use Glass Bioreactors?
Our Glass Bioreactors are popular in academia, pharmaceuticals, and biotech labs, especially for research, strain development and pilot studies.
12: Is the system suitable for anaerobic fermentation?
Yes, with proper gas inlet management, the Glass Bioreactor can support anaerobic fermentation setups.
