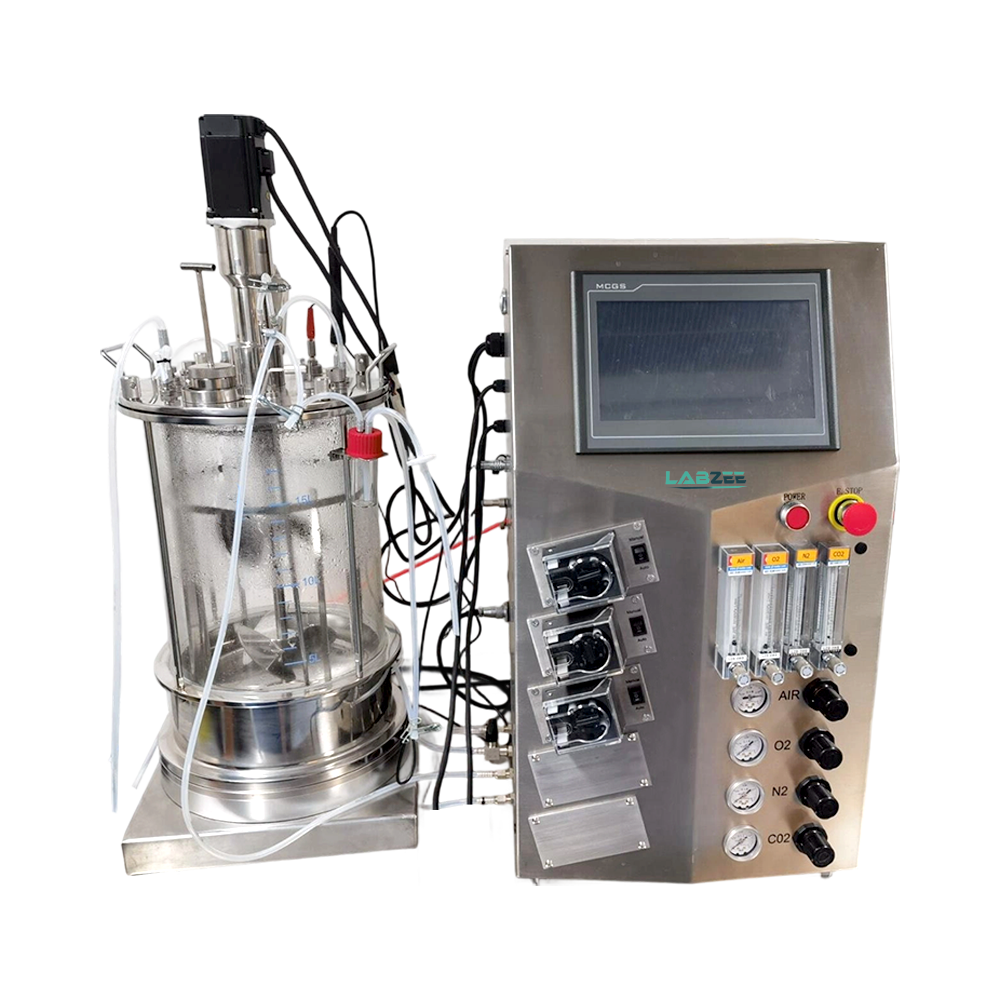

Labzee Glass Bioreactor BZGB-509 is a 22L transparent vessel system built for demanding cell culture and bioprocess development tasks. The modular system enables real-time parameter control with high clarity for visual monitoring. Its touchscreen interface and sensor suite ensure responsive and accurate process management. Our Glass Bioreactor BZGB-509 is ideal for scale-up experiments, high-throughput optimization, and technical R&D.
| Volume | 22L |
| Stir Speed | 50 to 500rpm |
| Stirring Mechanism | Pitched Blade + Fixed-Bed Paddle |
| PH Range | 2.00 to 12.00 ±0.1 |
| DO Range | 0 to 150% ±3% |
| Power Supply | AC 220V, 50Hz |
| Package Size (W×D×H) | 115cm × 105 cm × 135 cm |
| Net Weight | 150 Kg |
| Gross Weight | 180 Kg |
Remote Control PC With Software
Auto Gas Inlet System
Weight System
Manual Gas Control System
Agitation Control System
Ph Sensor
DO Sensor
Temperature Sensor
Foam Sensor
Peristaltic Pumps × 4 Pieces
Labzee Glass Bioreactor BZGB-509 is ideal for real-time visual monitoring, manual process control and small-to-mid scale cell culture applications in academic, research and biotech labs.
Frequently Asked Questions
1: What is the working volume of the Glass Bioreactor BZGB-509?
The Glass Bioreactor BZGB-509 has a 22L working capacity.
2: Is the touchscreen responsive for all adjustments?
Yes, the 10" display supports full interactive control.
3: What cultures can the Glass Bioreactor BZGB-509 support?
It supports bacterial, plant, yeast, insect and mammalian cells.
4: Is continuous culture possible in the Glass Bioreactor BZGB-509?
Yes, both batch and continuous modes are fully supported.
5: Can I upgrade to automated gas inlet?
Yes, automation modules are available as optional add-ons.
6: What applications benefit from the Glass Bioreactor BZGB-509?
It is ideal for process development, optimization trials and scale-up projects.

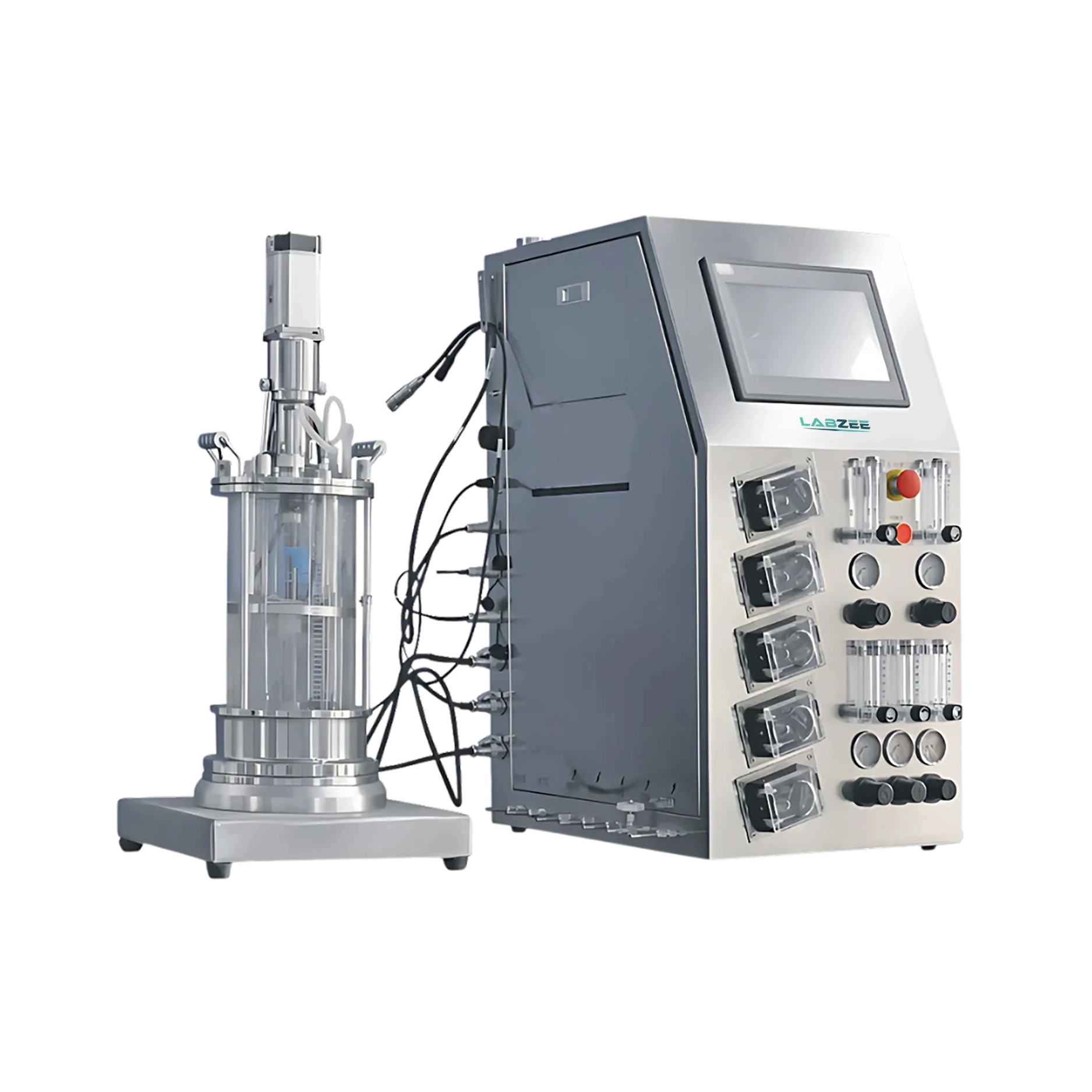

7: What is the volume capacity of the Labzee Glass Bioreactors?
Labzee offers Glass Bioreactors in capacities 1L to 40L.
8: What control features are included with the Glass Bioreactor?
It includes manual gas control, agitation system, pH, DO, temperature and foam sensors, all monitored via a 10" touchscreen interface.
9: Can this system be integrated with external software?
Yes, with the optional Remote PC Control and software package, the system supports real-time remote monitoring and data management.
10: What are the optional accessories available for the Glass Bioreactor?
Optional accessories include: • Remote Control PC With Software (USD 5,250) • Auto Gas Inlet System (USD 6,750) • Weight System (Ohaus) (USD 5,250)
11: What industries typically use Glass Bioreactors?
Our Glass Bioreactors are popular in academia, pharmaceuticals, and biotech labs, especially for research, strain development and pilot studies.
12: Is the system suitable for anaerobic fermentation?
Yes, with proper gas inlet management, the Glass Bioreactor can support anaerobic fermentation setups.
