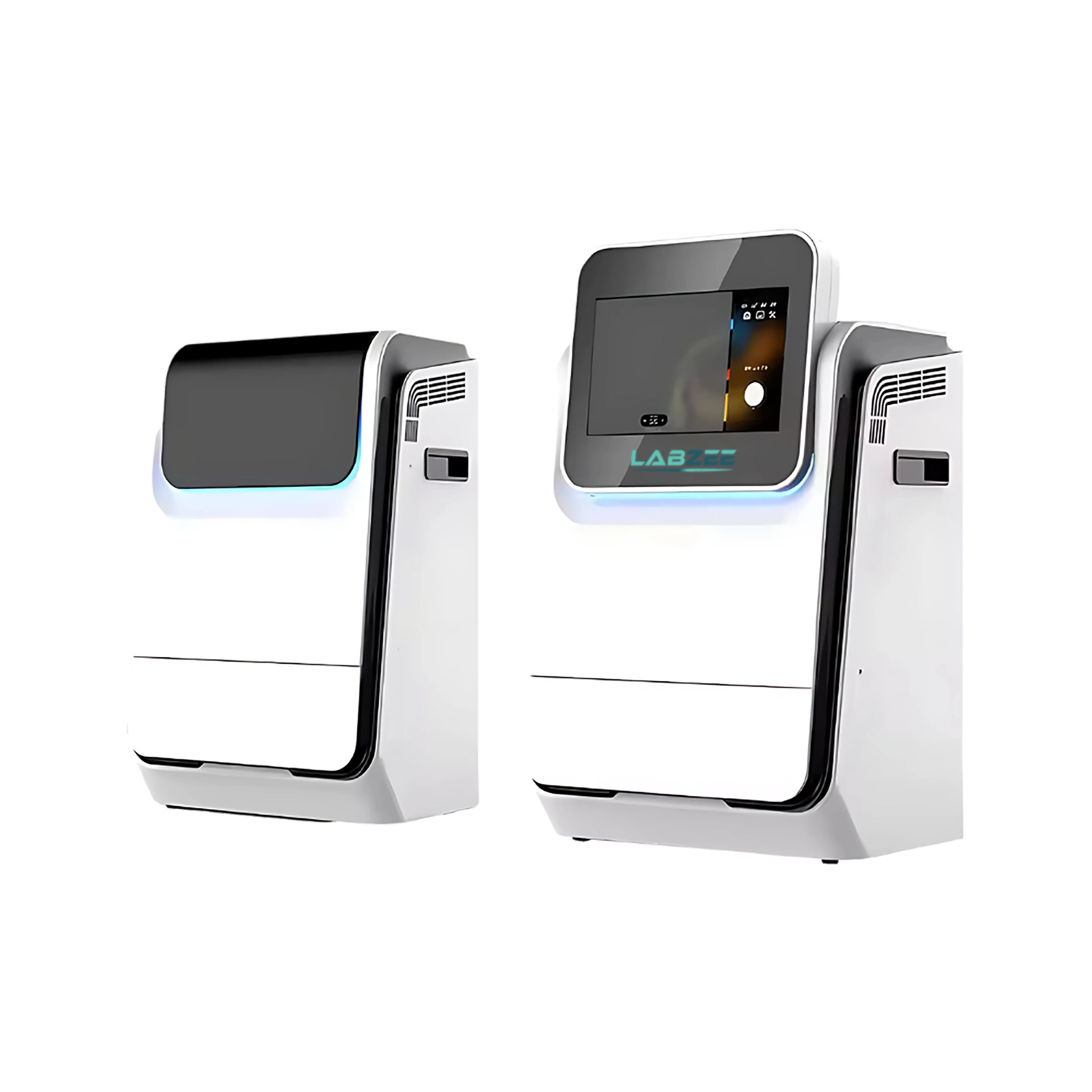

Multifunctional Imager BZMFI-502 is ideal for ECL Western blotting, DNA/RNA gels, and protein gels. It features a high-sensitivity cooled CCD camera with a fast electronic lens and accurate autofocus. This device has an electronic lifting platform and four sample drawers with UV and white LED lighting to support various imaging needs. It includes a built-in filter wheel that adds flexibility for fluorescence applications. Our Multifunctional Imager BZMFI-502 offers high integration, optional removable computer, and unlimited software access for smooth, versatile lab use.
| Camera Type | Cooled CCD |
| Camera Resolution | 6 megapixels |
| Pixel Size | 4.54 × 4.54 µm |
| Temperature | -30° regulated |
| Dynamic Range | 4.8 OD |
| Pixel Density | 16 bits (65536 Grey scales) |
| Electronic Lens | F0.95 as standard, F0.8 is optional, Accurate auto focus |
| Chemi Imaging Sample Drawer | Electronic lifting platform and sample drawer |
| Gel Doc Sample Drawer | Electronic lifting platform and sample drawer, UV LED transmission |
| Protein Gels Sample Drawer | Electronic lifting platform and sample drawer, White LED transmission |
| Filter Wheel | Standard 5 position filter wheel |
• Industrial Computer with Intel Processor
• Blue LED Transmission
• Visible Fluorescent Module
• Replacement of F0.8 Lens
The Multifunctional Imager BZMFI-502 is ideal for ECL Western blotting, DNA/RNA, and protein gels, featuring a high-sensitivity cooled CCD camera and fast lens for accurate results. With multi-mode support, auto-focus, and an electronic lifting platform, it adapts to various sample sizes and suits applications like chemi imaging, gel documentation, and fluorescence analysis.
Frequently Asked Questions
1: What kind of camera does the BZMFI-502 system use?
BZMFI-502 features a high-sensitivity cooled CCD camera with a resolution of 6 megapixels and 16-bit grayscale depth, delivering sharp, high-contrast images even from faint signals.
2: Can BZMFI-502 support fluorescence applications?
Yes, the BZMFI-502 includes a 5-position built-in filter wheel, allowing for flexible fluorescence imaging using different emission filters.
3: Is the BZMFI-502 easy to operate for multiple users?
Yes. With its intuitive software, automated platform, and unlimited user license, the BZMFI-502 is ideal for collaborative lab environments and high-throughput imaging needs.
4: Can I image multiple types of samples without changing the setup in BZMFI-502?
Yes. The four-drawer system in BZMFI-502 with dedicated lighting and platform automation allows you to switch between sample types (DNA, RNA, protein, chemiluminescence, fluorescence) quickly without physical reconfiguration.
5: Can the autofocus of BZMFI-502 handle curved or uneven samples?
Yes. The autofocus system intelligently compensates for sample height variations, ensuring uniform focus across the imaging plane even with slightly curved gels or uneven membranes.
6: What types of imaging modes are supported in multifunctional imager?
Most multifunctional imagers support chemiluminescence, fluorescence, UV imaging, colorimetric (visible light), and optionally NIR (near-infrared) imaging.
7: Does the system support multiplex detection?
Yes, many multifunctional imagers can detect multiple fluorescent channels simultaneously or sequentially, enabling multiplex assays.
8: Does it support automatic exposure and image enhancement?
Yes, many imagers offer auto-exposure, focus, and enhancement features to simplify image acquisition.
