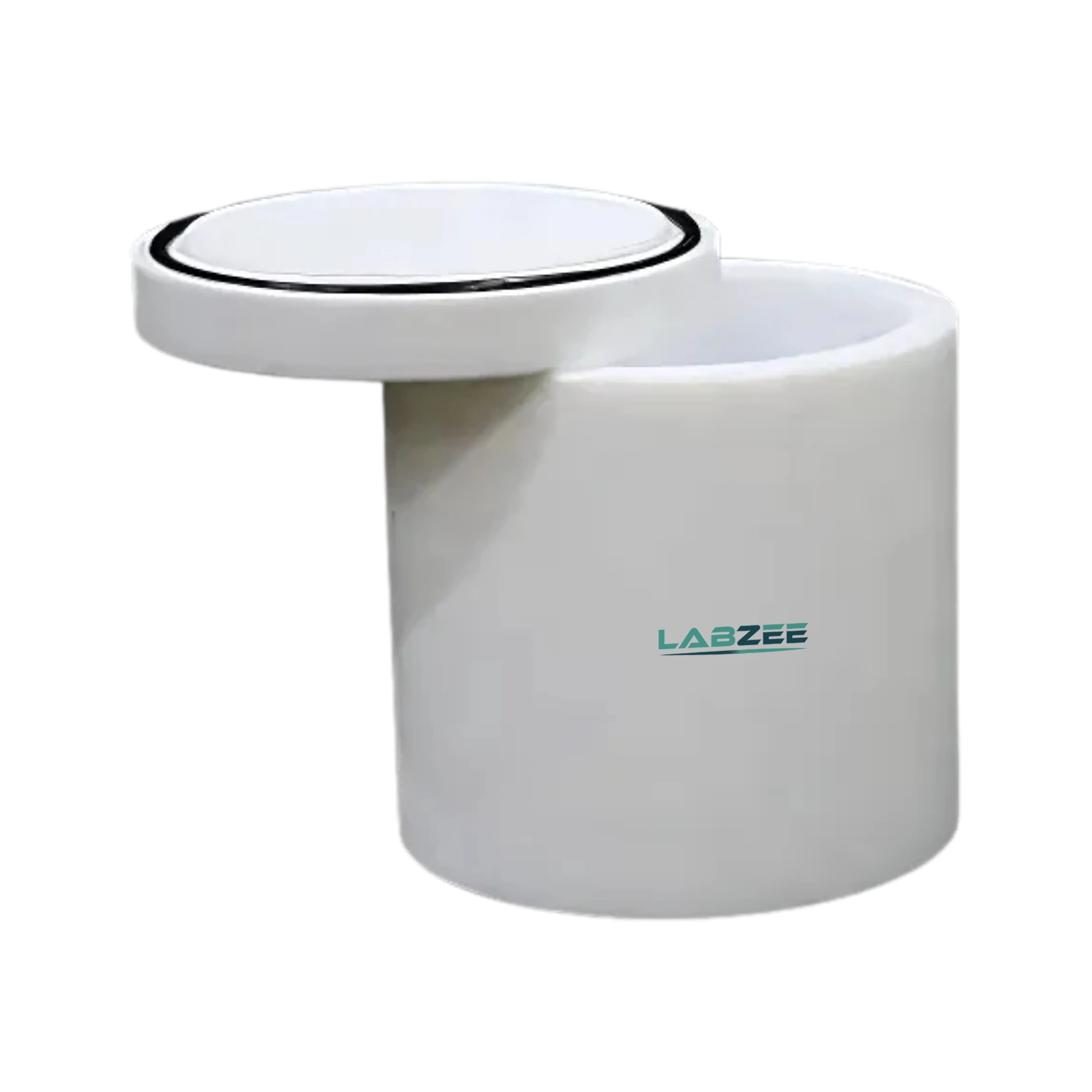

Poly Tetra Floro Ethylene Ball Mill Jar BZTBJ-507 is a high-volume, corrosion-resistant milling container built for demanding chemical and material processing applications. This Ball Mill Jar features a wall thickness of 13 mm and a cover thickness of 23 mm, offering excellent structural reinforcement and chemical resistance. It is manufactured from pure PTFE, ensuring non-reactivity with aggressive or sensitive compounds. Its interior is smooth and non-stick, promoting effective grinding and easy material retrieval. Our Poly Tetra Floro Ethylene Ball Mill Jar BZTBJ-507 is ideal for large-scale powder homogenization, reactive compound dispersion, and ultra-pure material preparation.
| Volume | 3 L |
| Seal Ring Type | Flat Gasket |
| Height | 217 mm |
| Wall Thickness | 13 mm |
| Cover Thickness | 23 mm |
| Internal Diameter | 140 mm |
| External Diameter | 163 mm |
| Bottom Diameter | 149 mm |
| Cover Weight | 0.872 Kg |
| Grinding Jar Weight | 3.688 Kg |
Our Poly Tetra Floro Ethylene Ball Mill Jar BZTBJ-507 is best suited for bulk grinding of corrosive chemicals, mixing sensitive pharmaceutical compounds, dispersing unstable materials, and preparing high-purity powders in industrial and research-scale operations.
Frequently Asked Questions
1: What is the total capacity of the Poly Tetra Floro Ethylene Ball Mill Jar BZTBJ-507?
The BZTBJ-507 has a 3 L capacity, making it suitable for high-volume industrial and laboratory milling processes.
2: Can you use BZTBJ-507 for mixing reactive chemicals?
Yes, its chemically inert PTFE structure and secure flat gasket seal make it ideal for safely mixing reactive or volatile compounds.
3: How does the jar prevent contamination during grinding?
Its non-stick and non-reactive PTFE interior ensures materials remain pure and uncontaminated during processing.
4: Is BZTBJ-507 strong enough for continuous use?
Absolutely, its reinforced wall and cover thickness make it durable for extended milling operations under demanding conditions.
5: What types of materials work best with Poly Tetra Floro Ethylene Ball Mill Jar BZTBJ-507?
BZTBJ-507 is perfect for grinding aggressive acids, oxidizers, fine pharmaceutical ingredients, and moisture-sensitive powders.
6: When is a Poly Tetra Floro Ethylene Ball Mill Jar most suitable?
A Poly Tetra Floro Ethylene Ball Mill Jar is ideal when working with highly reactive, corrosive, or ultra-sensitive materials. Its non-reactive surface prevents contamination and preserves sample purity. It is frequently used in pharmaceutical, chemical, and environmental labs.
7: Can the Poly Tetra Floro Ethylene Ball Mill Jar be used for wet grinding?
Yes, the Poly Tetra Floro Ethylene Ball Mill Jar can handle both wet and dry milling. Its hydrophobic surface minimizes sticking during wet grinding. Always ensure proper sealing before use with liquids.
8: Can metallic media be used in the Poly Tetra Floro Ethylene Ball Mill Jar?
It is recommended to use ceramic or polymer-based media with the Poly Tetra Floro Ethylene Ball Mill Jar. Metallic media may damage the soft PTFE surface and reduce performance. Always select media based on sample type and required purity.
9: When should the Poly Tetra Floro Ethylene Ball Mill Jar be replaced?
The Poly Tetra Floro Ethylene Ball Mill Jar should be replaced if it shows deformation, deep scratches, or wear. Despite its chemical resistance, it can wear over time under abrasive conditions. Regular inspection ensures contamination-free results.
10: Can the Poly Tetra Floro Ethylene Ball Mill Jar be cleaned easily?
Yes, the Poly Tetra Floro Ethylene Ball Mill Jar is exceptionally easy to clean due to its non-stick surface. Use mild detergents or lab-grade solvents depending on the residue. Avoid harsh abrasives that may scratch the inner surface.
