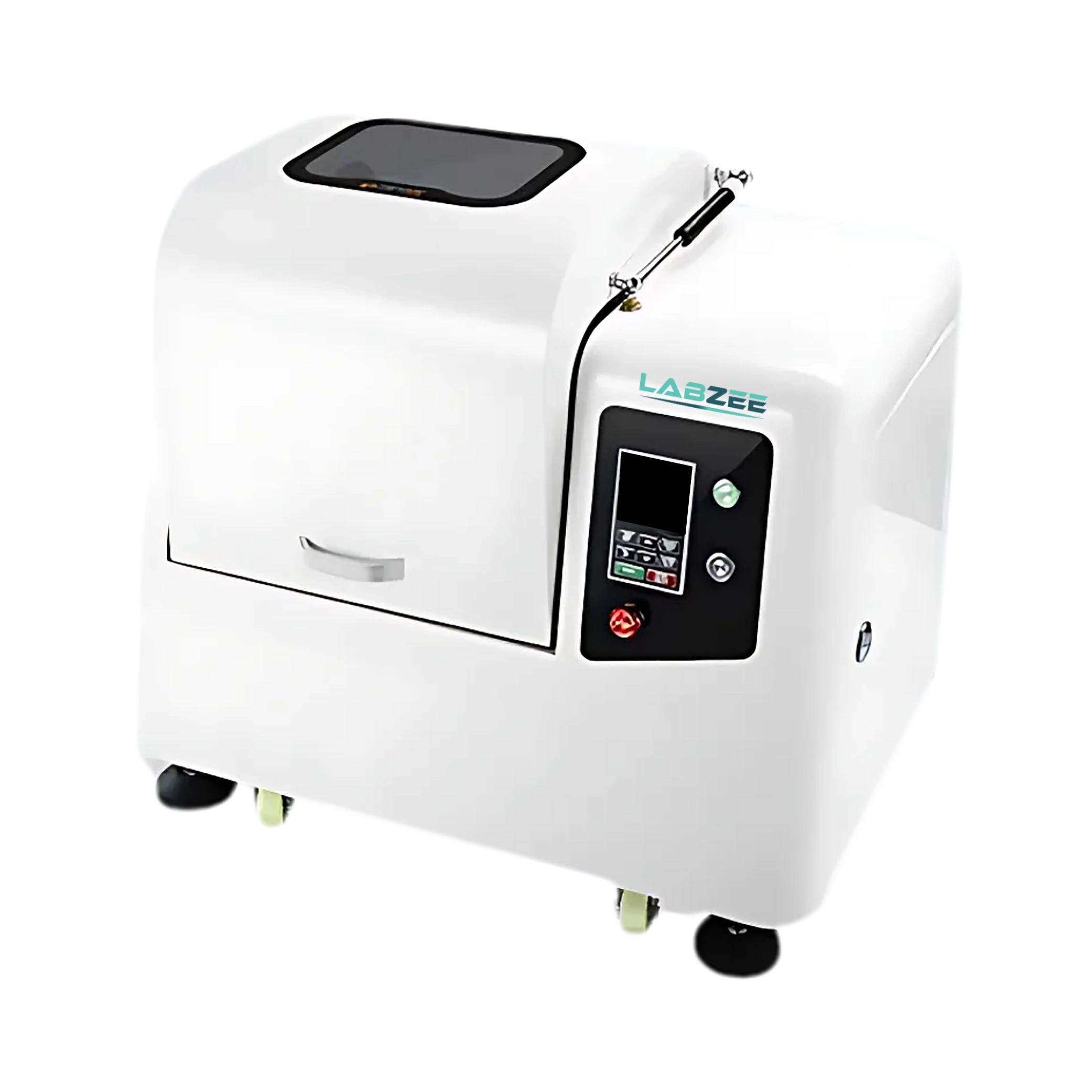

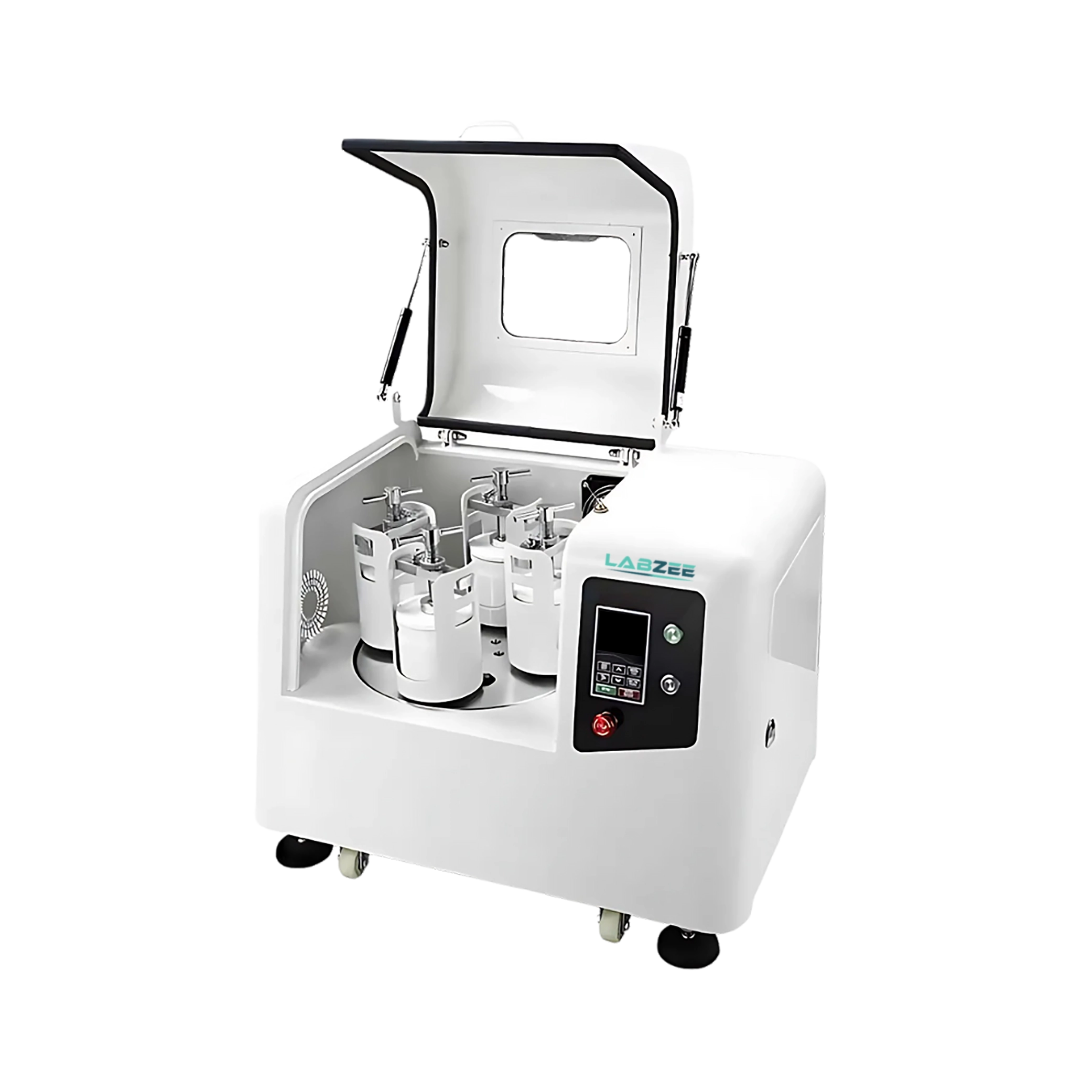

Nano-scale Planetary Ball Mill BZNBM-509 offers powerful milling capabilities suited for nano-grade material processing. This Mill supports large grinding and vacuum jar sizes from 10 to 15 L, making it efficient for bulk nanoscale production. It optimizes both sun wheel and jar speeds to achieve fine and uniform particle dispersion. Its robust design ensures stable operation even under intensive conditions. Our Nano-scale Planetary Ball Mill BZNBM-509 is widely used in the synthesis of nanomaterials, pigment mixing, battery cathode prep, high-energy alloying, and advanced ceramic grinding.
| Grinding Jar Size | 10-15 L |
| Vacuum Jar Size | 10-15 L |
| Sun Wheel Speed | 5-220 rpm |
| Ball Mill Jar Speed | 10-440 rpm |
| Power | 7.5 kW |
| Voltage | AC 380V, 50Hz |
| Product Dimensions | 116 × 94 × 145 cm |
| Weight | 610 Kg |
Our Nano-scale Planetary Ball Mill BZNBM-509 is used for producing ultra-fine powders in advanced material development. It’s suitable for industries working on nanotech applications, high-performance composites, and large-volume powder homogenization.
Frequently Asked Questions
1: What safety gear should you wear?
You should wear gloves, goggles, and a lab coat. This protects you from fine particles and potential hazards during handling and cleanup.
2: Can you customize the RPM settings?
Yes, you can adjust the rotation speed based on the hardness of your material. Slower speeds are better for soft materials; higher for harder ones.
3: What happens if there's a power failure during milling?
Some models resume from where they stopped, while others require a manual restart. It’s best to save your settings in advance if possible.
4: Do you need to sieve the powder afterward?
Yes, sieving helps you get uniform particle sizes after milling. It also removes clumps or oversized particles from the final product.
5: How should you store the milled powder?
Store your powder in sealed containers, away from moisture and heat. For sensitive materials, use containers filled with inert gas like nitrogen.
6: What is a Nano-scale Planetary Ball Mill?
A Nano-scale Planetary Ball Mill is a high-energy milling system specifically designed to grind materials down to the nanometer range. It is widely used in advanced research and material science for producing ultra-fine powders and nanoparticles.
7: What makes this mill suitable for nano-scale grinding?
Its powerful centrifugal forces and rapid rotation of grinding jars provide intense impact and friction, enabling particle size reduction to below 100 nanometers. The precise control of speed and time ensures reproducible nano-level results.
8: What applications require nano-scale milling?
Applications include nanomaterials synthesis, battery material preparation, catalyst development, pharmaceuticals, ceramics, and advanced composites where ultra-fine particle sizes are critical for performance.
9: What types of grinding media are recommended for nano-scale milling?
High-density and contamination-free media such as zirconia, tungsten carbide, or agate are commonly used to achieve efficient nano-grinding without affecting sample purity.
10: How can overheating be prevented during nano-scale milling?
Overheating can be minimized using intermittent milling cycles, built-in cooling systems, or by selecting jars with thermal insulation. Proper speed settings and milling durations also help manage heat generation effectively.
