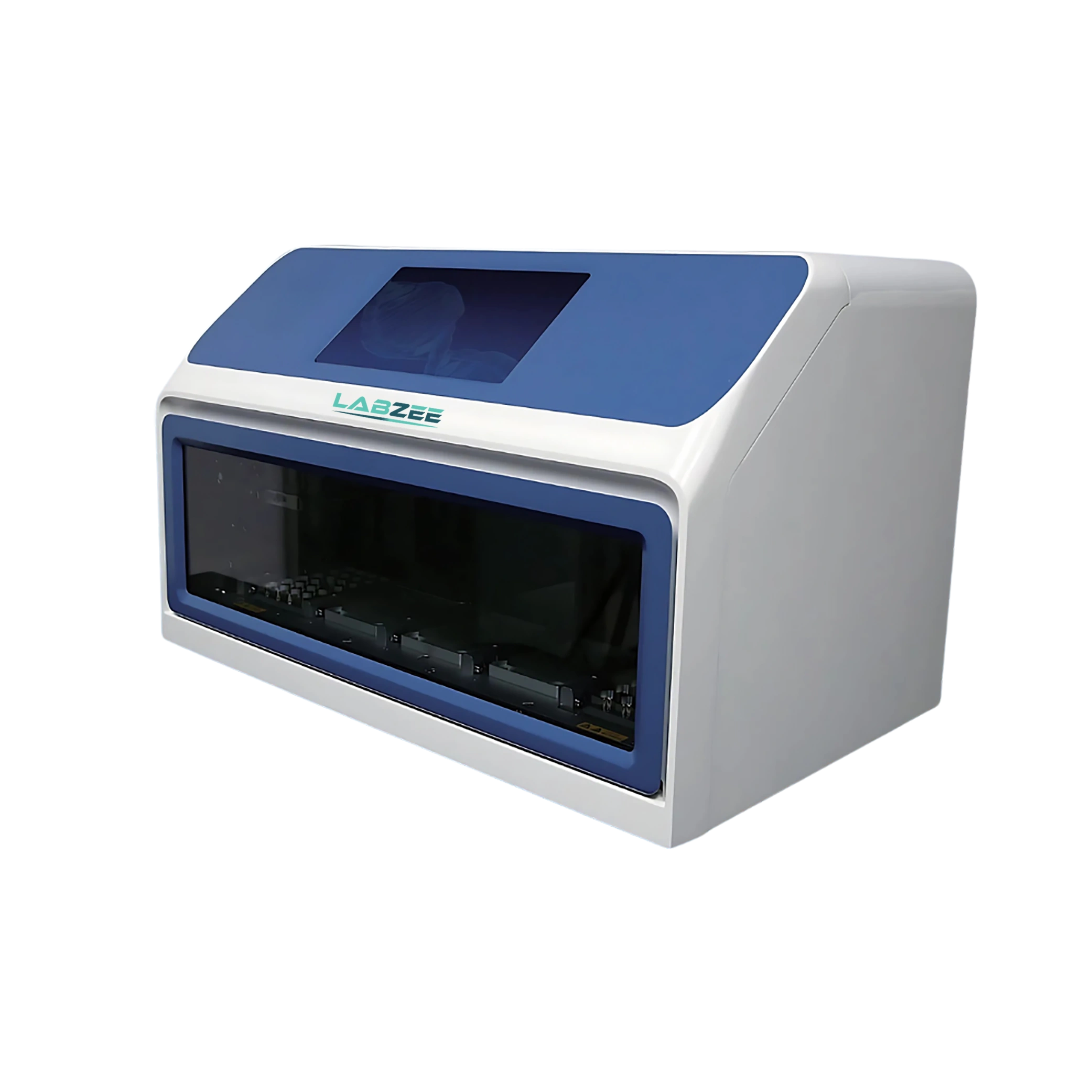

Nucleic Acid Purification System BZNAP-502 is designed for efficient, automated processing using magnetic bead-based kits. It features a large LCD touchscreen, intelligent control software, and a robust industrial system for stable, continuous operation. This system ensures high magnetic bead retention and uniformity across wells, with multiple magnetic adsorption and mixing modes. Its built-in safety features include UV decontamination, a HEPA filter, and door-open protection to prevent contamination. Our Nucleic Acid Purification System BZNAP-502 provides a quiet, enclosed design with a transparent chamber that makes it user-friendly and ideal for reliable DNA/RNA extraction in research labs.
| Processing Volume | 50 to 7500 µl |
| Operation Screen | 10 inch LCD touch |
| Uniformity of Wells | CV < 3% |
| Heating Temp. Range | RT to 125℃ |
| Working Temperature | 10 to 40℃ |
| Working Humidity | ≤ 90% |
| Exhaust Type | HEPA filter system (standard configuration) |
| Multiple Magnetic Adsorption Mode | Normal/ Step/ Cycle |
| Antidripping Liquid | Optional |
| Decontamination | UV lamp |
| Code Scanner | Optional |
| Mixing Speed | Multi adjustable |
| Applied Kits | Magnetic beads based kits |
| Sample Throughput | 24/test |
| Operation System | 7 × 24 hours industrial system |
| Retention of Magnetic Beads | ≥ 99% |
| Magnetic Rod Calibration | Software calibration (without dismantling) |
| Interfaces | USB |
| Power Supply | AC100 to 240V, 50/60Hz |
| Net Weight | 30 Kg |
| Dimension | 616 × 375 × 394 mm |
The Nucleic Acid Purification System BZNAP-502 is used for purifying nucleic acids, proteins, and cells in molecular and clinical labs. It extracts from a wide range of samples like tissues, blood, bacteria, viruses, and fungi. Also applicable to marine organisms, herbal medicines, and forensic materials and delivers stable, high-quality results for research and diagnostics.
Frequently Asked Questions
1: What is the sample throughput of the BZNAP-502?
BZNAP-502 can process 24 samples per run, making it suitable for medium- to high-throughput laboratories.
2: What safety features are built into the BZNAP-502?
The BZNAP-502 includes UV decontamination, a HEPA filter, door-open protection, and ultra-limit position protection with alarm, ensuring a clean and safe working environment.
3: What environments is the BZNAP-502 suitable for?
BZNAP-502 is ideal for molecular biology and clinical laboratories, especially those requiring efficient, safe, and consistent nucleic acid or protein purification.
4: Is the operation affected by environmental conditions in BZNAP-502?
The BZNAP-502 operates efficiently in a temperature range of 10 to 40°C and humidity ? 90%, suitable for standard lab environments.
5: Is operator supervision required during the purification process?
Our BZNAP-502 requires minimal supervision due to its automated operation, safety features, and transparent viewing chamber.
6: What types of samples can the Labzee nucleic acid purification system process?
Our system can efficiently purify DNA and RNA from a variety of biological samples including blood, tissue, cells, swabs, and plant material.
7: How long does a typical purification cycle take?
A complete purification run typically takes between 20 to 40 minutes, depending on the sample type and selected protocol.
8: What kind of user interface does the system have?
It features a modern touchscreen interface with simple navigation, pre-loaded programs, and status indicators for real-time monitoring.
