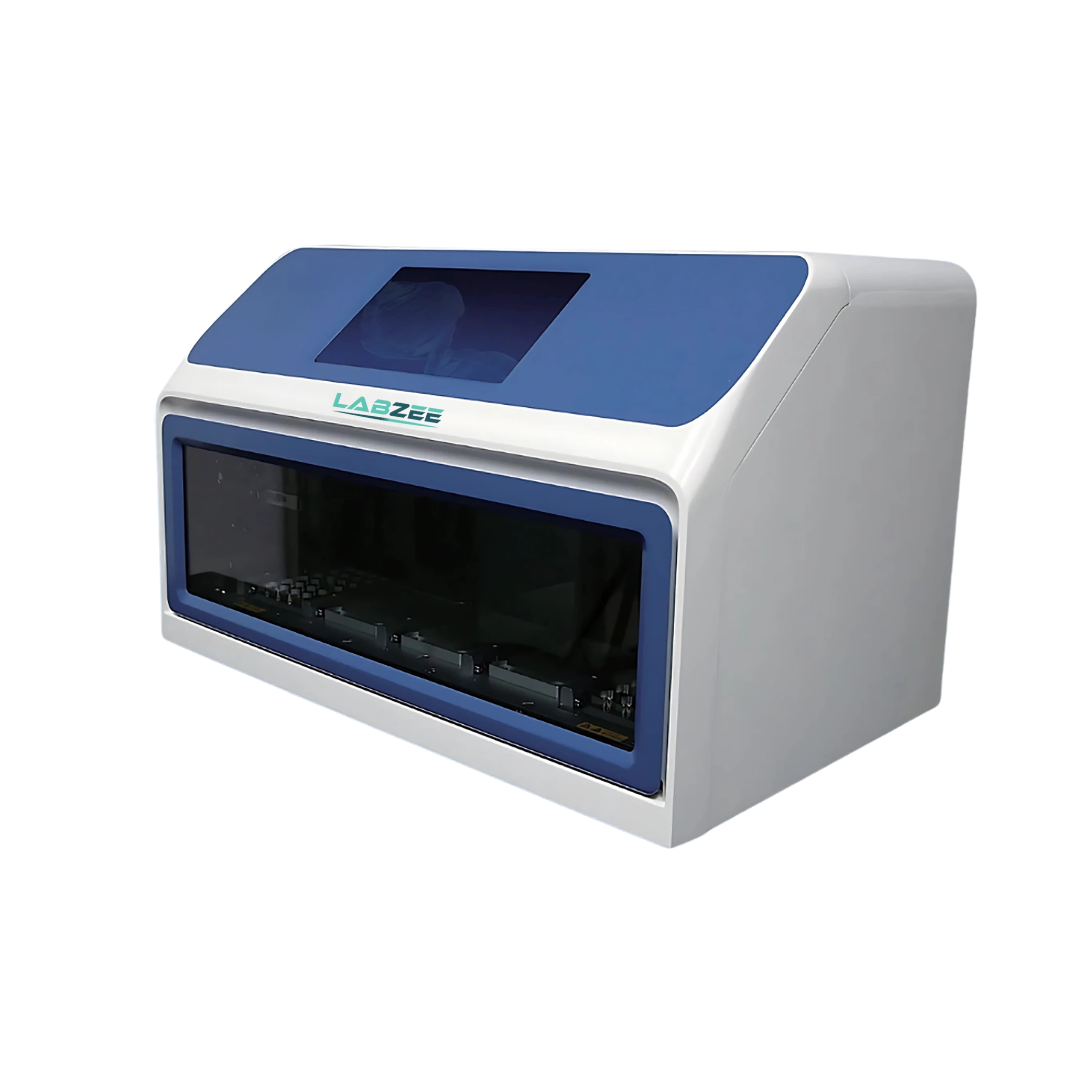

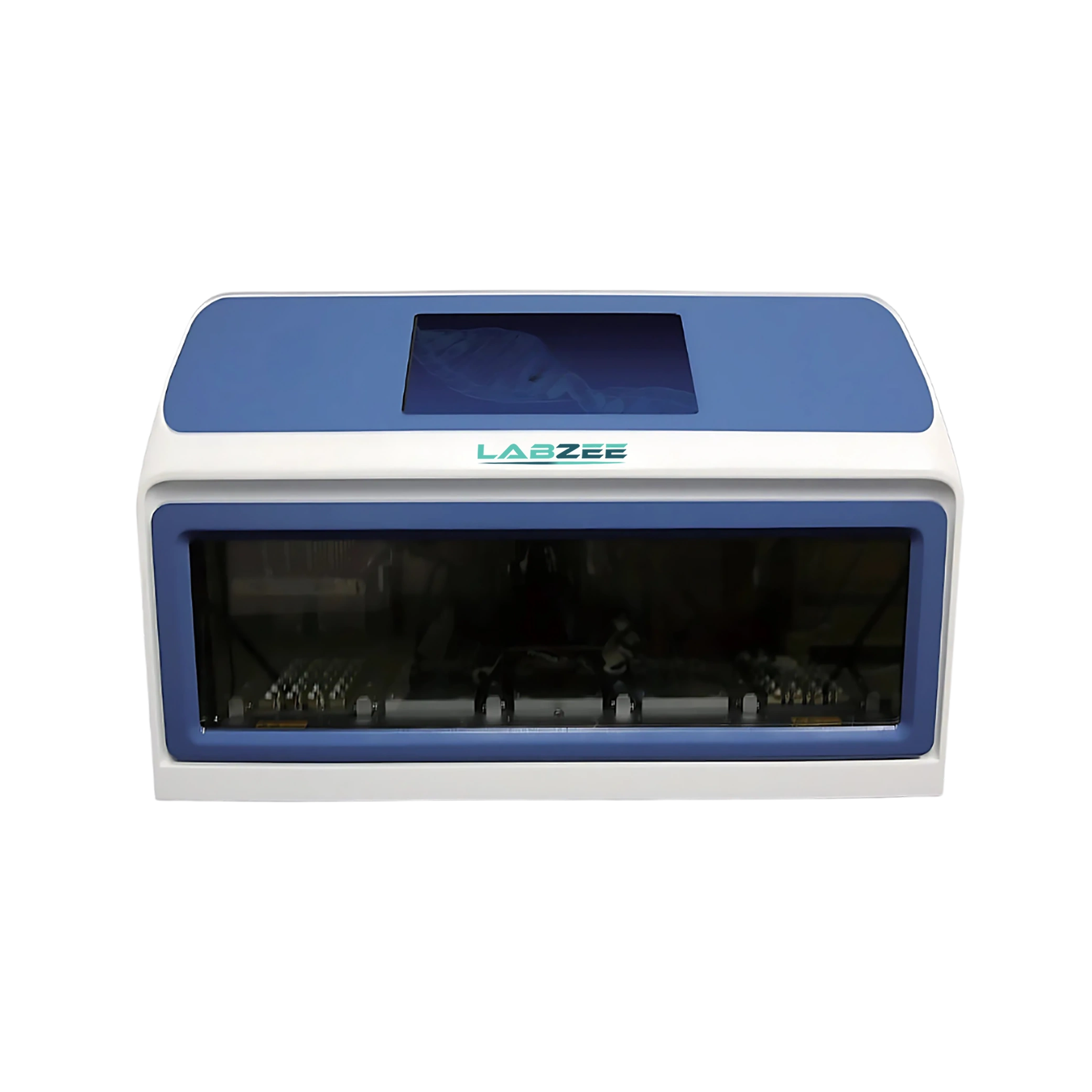

Nucleic Acid Purification System BZNAP-506 is designed for efficient magnetic bead-based processing across various sample types. It features a large touchscreen interface with adjustable mixing speeds and multiple magnetic adsorption modes for flexible operation. This system ensures high consistency and bead retention, delivering reliable and reproducible results. Its built-in UV decontamination, HEPA filtration, and safety protections maintain a clean and secure working environment. Our Nucleic Acid Purification System BZNAP-506 designed for continuous operation, is ideal for use in clinical and molecular biology laboratories.
| Processing Volume | 20 to 1000 µl |
| Operation Screen | 10 inch LCD touch |
| Uniformity of Wells | CV < 3% |
| Heating Temp. Range | RT to 125℃ |
| Working Temperature | 10 to 40℃ |
| Working Humidity | ≤ 90% |
| Mixing Speed | Multi adjustable |
| Multiple Magnetic Adsorption Mode | Normal/ Step/ Cycle |
| Decontamination | UV lamp |
| Filter System | HEPA filter system (Exhaust type) |
| Code Scanner | Optional |
| Applied Kits | Magnetic beads based kits |
| Sample Throughput | 1 to 96 |
| Operation System | 7 × 24 hours industrial system |
| Retention of Magnetic Beads | ≥ 99% |
| Original Point Calibration | Software calibration (no need to disassemble the machine) |
| Interfaces | USB |
| Power Supply | AC100 to 240V, 50/60Hz |
| Net Weight | 30 Kg |
| Dimension | 616 × 375 × 394 mm |
The Nucleic Acid Purification System BZNAP-506 is ideal for molecular biology and clinical labs to purify nucleic acids, proteins, and cells with high consistency. It supports a wide range of samples, including plant and animal tissues, blood, bacteria, plasmids, and viruses. It is also effective for processing forensic materials, marine organisms, herbal medicine, fungi and in research and diagnostics.
Frequently Asked Questions
1: What safety and contamination control features are included in BZNAP-506?
The BZNAP-506 includes a UV lamp for decontamination, a HEPA filtration system, door-opening protection, and over-limit alarms to maintain a safe, clean environment.
2: Is the BZNAP-506 noisy during operation?
No, the BZNAP-506 is designed for quiet, fully enclosed operation, ensuring minimal disruption in laboratory environments.
3: How does the BZNAP-506 ensure bead retention during high-throughput runs?
BZNAP-506 utilizes a high-precision magnetic separation system that consistently achieves ?99% retention, even at maximum throughput, reducing sample loss and improving yield reliability.
4: Can the BZNAP-506 be placed directly inside a biosafety cabinet?
Yes, due to its compact footprint and quiet, fully enclosed operation, BZNAP-506 is suitable for placement in biosafety cabinets or cleanroom environments without disrupting airflow.
5: Is it possible to visually monitor the protocol without stopping the BZNAP-506 system?
Yes, the transparent chamber and LED-lit interior of BZNAP-506 allow real-time visual monitoring without interrupting the process or compromising safety.
6: What types of samples can the Labzee nucleic acid purification system process?
Our system can efficiently purify DNA and RNA from a variety of biological samples including blood, tissue, cells, swabs, and plant material.
7: How long does a typical purification cycle take?
A complete purification run typically takes between 20 to 40 minutes, depending on the sample type and selected protocol.
8: What kind of user interface does the system have?
It features a modern touchscreen interface with simple navigation, pre-loaded programs, and status indicators for real-time monitoring.
