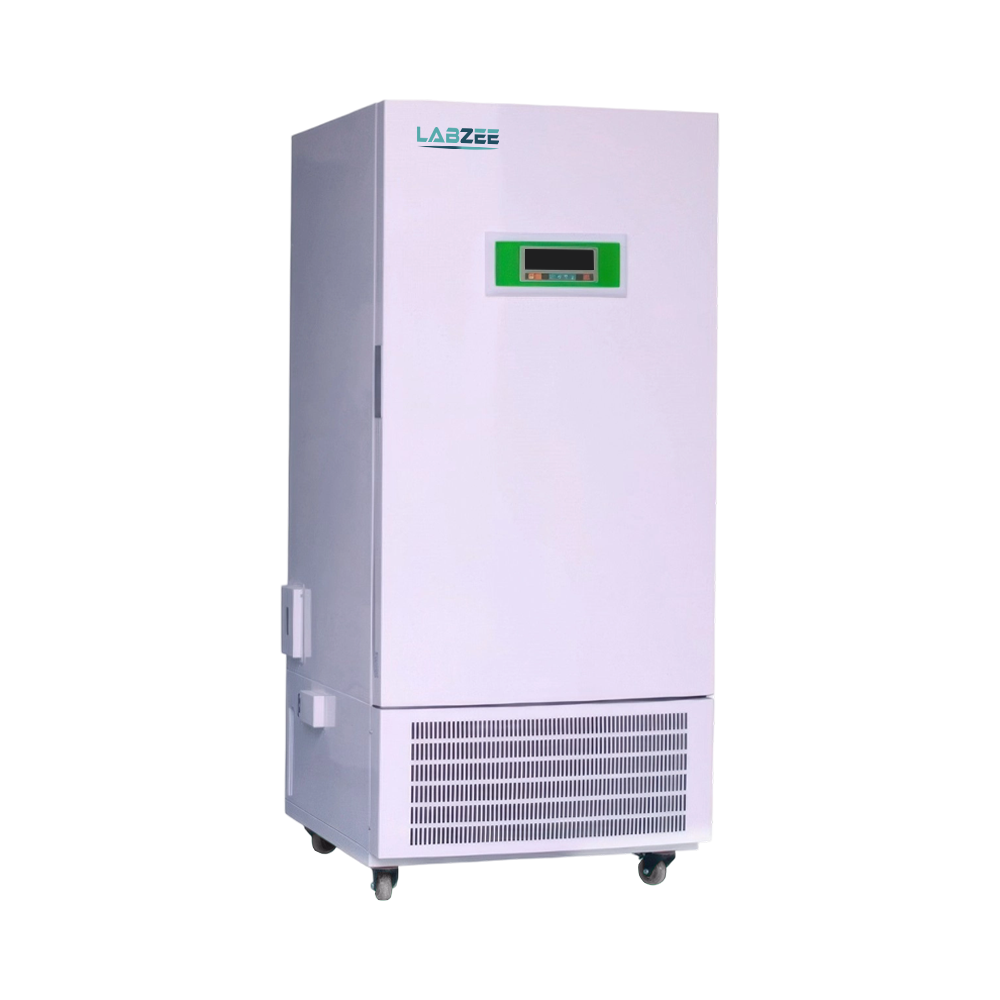

Labzee Pharmaceutical Stability Chamber BZEC-507 features a user-friendly touchscreen microcomputer controller and offers a chamber volume of 175 litres. It provides precise control over both temperature and humidity, maintaining a range of 0°C to 60°C and 30% to 95% RH. The JAKEL circulation fan and optimized air duct system ensure uniform airflow and consistent temperature distribution. Its built-in USB port allows for seamless data logging, while the integrated thermal printer delivers real-time printouts of operating parameters. Our Pharmaceutical Stability Chamber BZEC-507 is ideally suited for drug stability testing and research applications that demand consistent, reliable environmental control.
| Chamber Volume | 175 L |
| Temperature Range | 0 to 60℃ |
| Temperature Fluctuation | ±0.5℃ |
| Temperature Uniformity | ±2℃ |
| Operating Temperature | 5 to 30℃ |
| Humidity Range | 30 to 95% RH |
| Humidity Stability | ±3%RH |
| Timing Range | 1 to 99 Hours / Period |
| Sensor | PT100 Capacitance Sensor |
| Temp. And Humidity Adjusting | Balance Temperature And Humidity Adjusting |
| Power Supply | AC 220v, 50Hz |
| Power Consumption | 1650W |
| Chamber Size (W×D×H) | 45×42×93 cm |
| Exterior Size (W×D×H) | 65×73× 175 cm |
3 Grids (Expandable to 8)
Labzee Pharmaceutical Stability Chamber BZEC-507 is ideal for accelerated, long-term, high humidity, and photo-stability testing of drugs and new formulations, supporting pharmaceutical stability studies.
Frequently Asked Questions
1: What is the internal capacity of the BZEC-507 Pharmaceutical Stability Chamber?
The Labzee Pharmaceutical Stability Chamber BZEC-507 offers a spacious 175-litre internal chamber, providing ample room for conducting drug stability studies and storing sensitive pharmaceutical samples under controlled environmental conditions.
2: What temperature and humidity ranges do this chamber support?
Our Pharmaceutical Stability Chamber BZEC-507 maintains a temperature range from 0°C to 60°C with a fluctuation of ±0.5°C, ensuring consistent thermal conditions. Humidity levels can be controlled between 30% and 95% RH with a stability deviation of ±3%, making it ideal for a variety of pharmaceutical and laboratory applications.
3: How is temperature and humidity control managed?
The chamber uses a PID microprocessor controller for precise regulation of temperature and humidity. An international-brand humidity sensor and an external water tank help maintain optimal moisture levels, while the microcomputer system enables fine-tuned, reliable control throughout each testing cycle.
4: Can I run long or complex testing protocols?
Yes, Pharmaceutical Stability Chamber BZEC-507 is designed for advanced testing requirements. It supports up to 99 programmable cycles, with each cycle offering 30 segments. Each segment can be programmed for up to 99 hours and 99 minutes, making it suitable for complex, long-duration stability studies.
5: How is airflow and temperature uniformity maintained within the chamber?
The chamber is equipped with a JAKEL-brand circulation fan and an optimized air duct system. This design ensures consistent and uniform airflow throughout the chamber, reducing hot or cold spots and ensuring that all stored materials are exposed to the same environmental conditions.
6: What options are available for data recording and monitoring?
Pharmaceutical Stability Chamber BZEC-507 includes both a USB port for digital data logging and a built-in thermal printer. These features allow users to save, export, and print environmental parameters in real time, which is essential for audit trails, regulatory compliance, and experiment tracking.
7: Can samples be observed during operation?

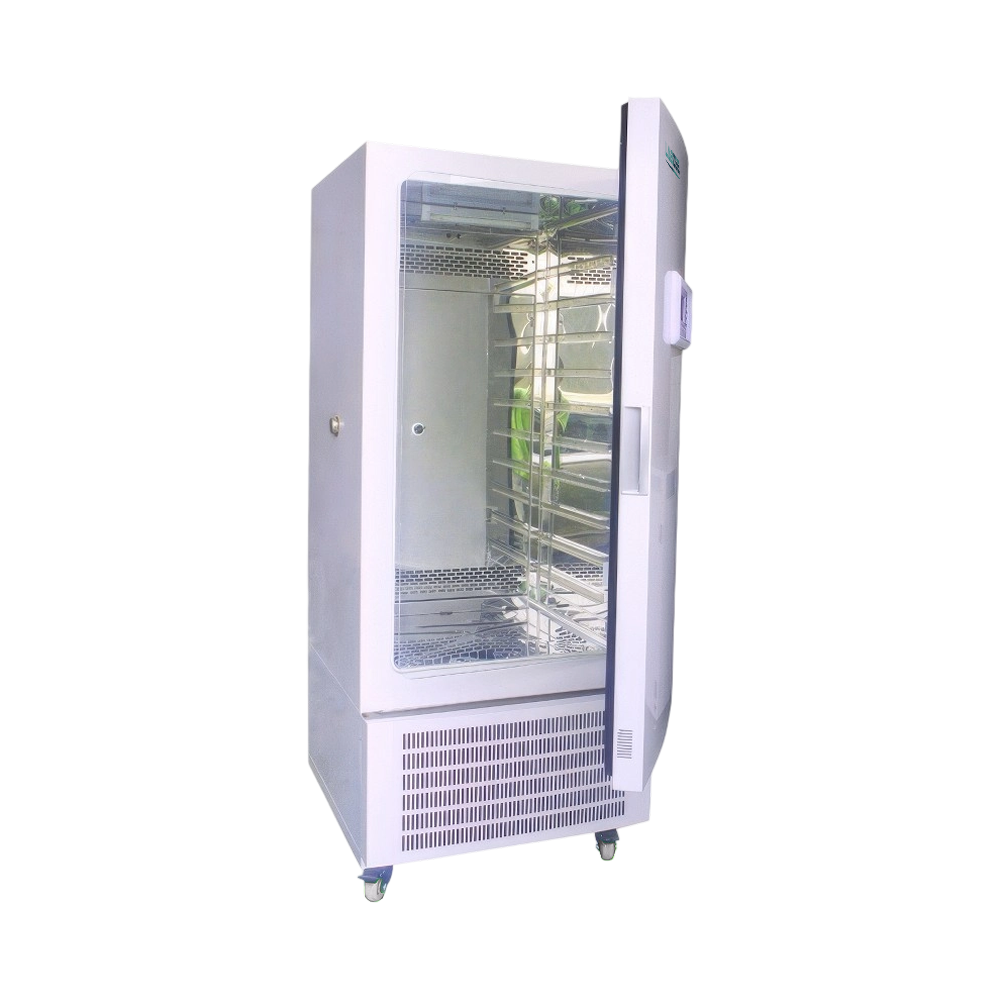

Yes, Pharmaceutical Stability Chamber BZEC-507 includes a double-door design. The inner door is made of tempered glass, allowing for clear visual monitoring of samples without opening the door or disrupting internal conditions. The outer magnetic-seal door enhances insulation and maintains a stable testing environment.
8: What is a Labzee Pharmaceutical Stability Chamber used for?
Labzee Pharmaceutical Stability Chambers are used to create controlled environments for testing drug stability, shelf life, and storage under ICH-guided temperature and humidity conditions.
9: What temperature and humidity range do these chambers support?
Labzee chambers offer a temperature range of 0°C to 60°C and a humidity range typically from 30% to 95% RH, with precise uniformity and control.
10: What chamber sizes are available?
They are available in multiple capacities ranging from 175 liters to 1075 liters, ideal for small labs to high-volume industrial testing.
11: How is temperature and humidity maintained inside the chamber?
Each unit features a high-efficiency airflow system and JAKEL circulation fans that ensure uniform distribution of temperature and humidity throughout the chamber.
12: What safety features are included?
The chambers are equipped with over-temperature protection, audio-visual alarms, and data logging systems for secure and traceable operation.
13: What type of control system does these chambers use?
Labzee chambers feature advanced PID microprocessor controllers with touchscreen interfaces for precise programming and monitoring of test parameters.
