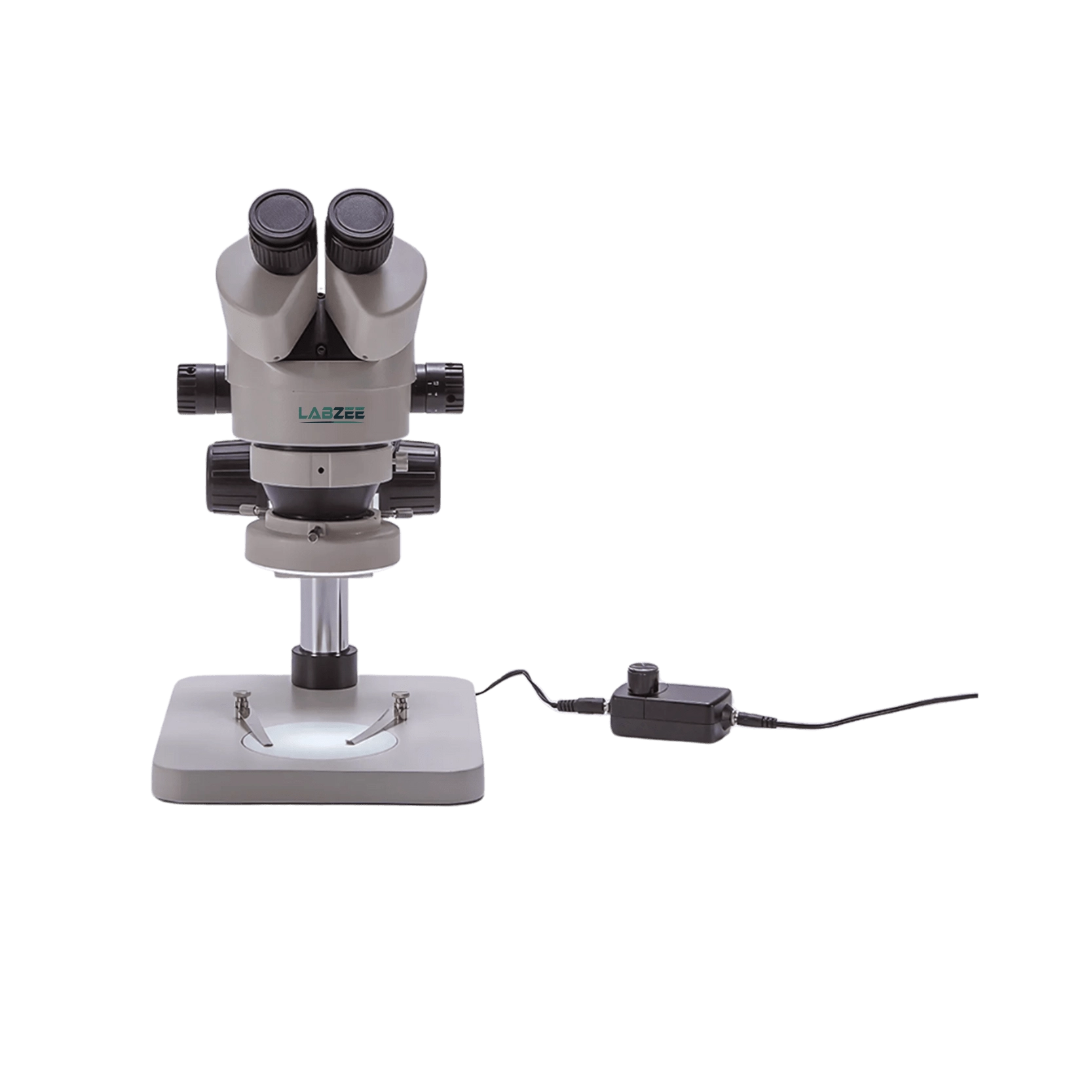

Stereo Zoom Microscope BZSI-503

Stereo Zoom Microscope BZSI-503 is crafted for precise, high-definition viewing across diverse applications. This Microscope features a binocular head, WF10X eyepiece magnification, and a zoom objective range from 0.7X to 4.5X to support fine adjustments. It delivers excellent speed and a broad range that caters to intricate inspection needs. Its dual-mode LED illumination ensures clear contrast and consistent lighting throughout observation. Our Stereo Zoom Microscope BZSI-503 is ideal for electronic repairs, biological dissection, material inspection, industrial assembly analysis, and quality assurance in manufacturing workflows.

Ontology Binocular head, inclined at 45°
Overall Magnification 7X-45X
Eyepiece Magnification WF10X
Eyepiece Field of View Φ20 mm
Objective Zoom objective: 0.7X to 4.5X
Pillar High 240 mm
Diameter Φ32 mm
Continuous Zoom Ratio 1:6.4
Working Distance 100 mm
Interpupillary Distance 55-75 mm
Illumination LED Reflection & Transmission
Packaging Dimension 40 × 50 × 60 cm
Gross Weight 5.0 Kg
  • Smooth Zoom Transition
  • Long Working Distance
  • LED Illumination System
  • Ergonomic Viewing Head
  • Widefield Eyepiece Clarity
  • Precise Focus Control

Our Stereo Zoom Microscope BZSI-503 is perfectly suited for tasks requiring detailed visual inspection and enhanced depth perception. It supports consistent performance in electronic component testing, gemstone evaluation, and medical research. This model is an essential tool across laboratories, quality control departments, and precision assembly lines.

captcha

Frequently Asked Questions

1: Is illumination built-in?

Most models have built-in top and bottom LED or halogen lighting to illuminate the specimen properly.

2: Can you adjust the brightness?

Yes, most Stereo Zoom Microscopes allow brightness adjustment to get the best view of the specimen.

3: What is the difference between a Stereo Zoom Microscope and a compound microscope?

Stereo Zoom Microscopes provide 3D images at low magnification, while compound microscopes give 2D images at high magnification for thin slides.

4: Is it easy to use?

Yes, it is very user-friendly. You just place the object, adjust zoom, and focus with simple controls.

5: Does it have interchangeable eyepieces?

Yes, most models support different eyepieces like 10x or 15x for varied magnification levels.
