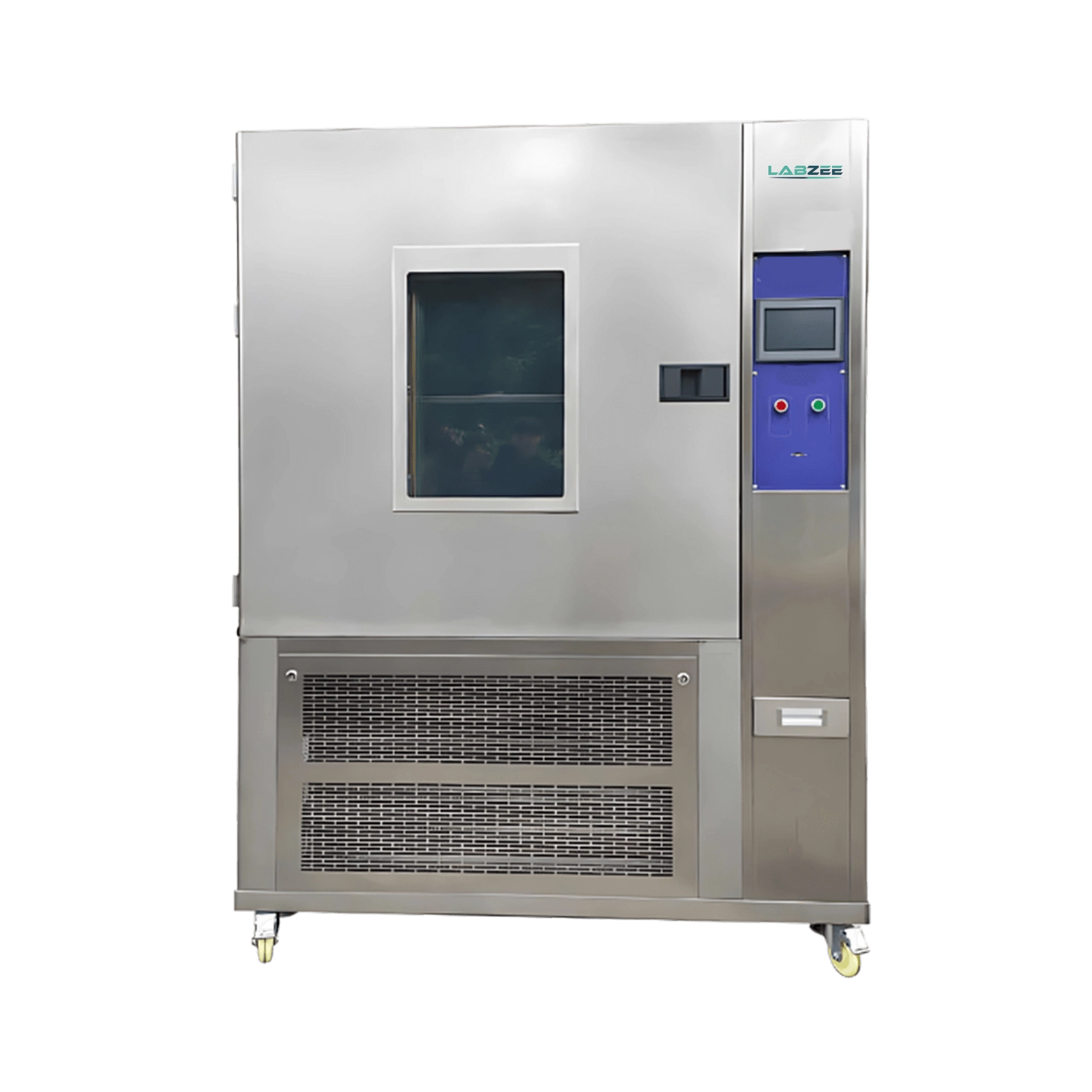

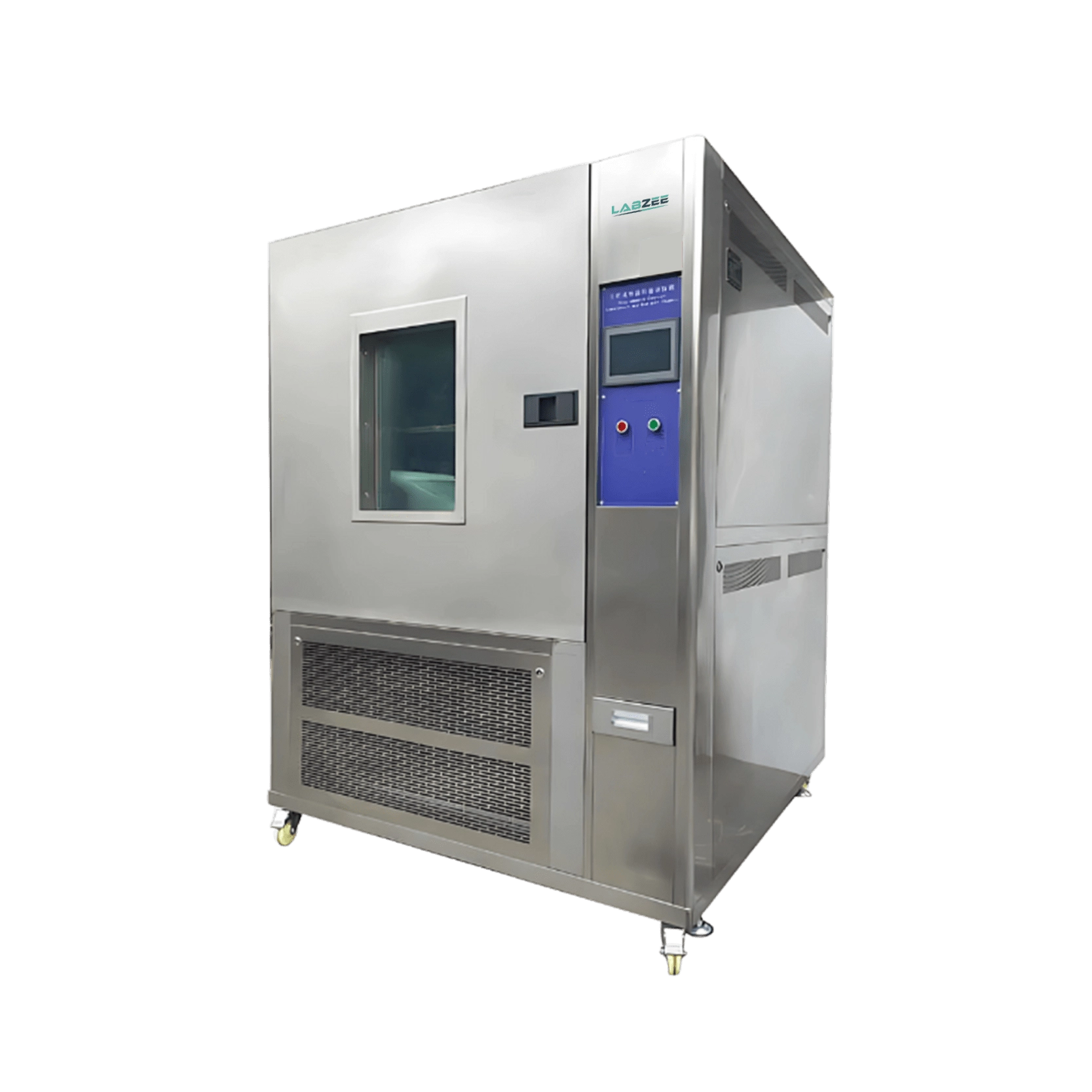

Temperature and Humidity Test Chamber BZTC-524 provides reliable environmental testing for a wide range of materials. This test chamber features a spacious capacity of 1000 L and an extensive temperature range from -60℃ to 150℃ for precise control. It ensures stable performance with uniform temperature and humidity distribution. The advanced cooling and heating system maintains accurate conditions for diverse testing needs. Our Temperature and Humidity Test Chamber BZTC-524 is ideal for applications in electronics, pharmaceuticals, and material research.
| Capacity | 1000 L |
| Temperature Range | -60℃ to 150℃ |
| Temperature Accuracy | ±0.01℃ |
| Temperature Fluctuation | ±1℃ |
| Temperature Uniformity | ±2℃ |
| Humidity Range | 20-98% RH (at 25℃-85℃) |
| Humidity Accuracy | ±0.1 % RH |
| Timing | 0-99h 59minutes |
| Heating Rate | 2 - 4℃/min |
| Cooling Rate | 0.7 - 1℃/min |
| Cooling Method | Air-Cooled Cooling Method |
| Power Consumption | 9500 W |
| Power Supply | AC 380V ± 10% |
| Internal Dimension | 1000 × 1000 × 1000 mm |
| External Dimension | 1920 × 1510 × 1620 mm |
| Net Weight | 850 Kg |
| Gross Weight | 900 Kg |
RS485
Our Temperature and Humidity Test Chamber BZTC-524 ensures controlled environmental conditions for precise product testing. It is ideal for assessing material durability, electronic components, and pharmaceutical stability under varying humidity and temperature levels.
