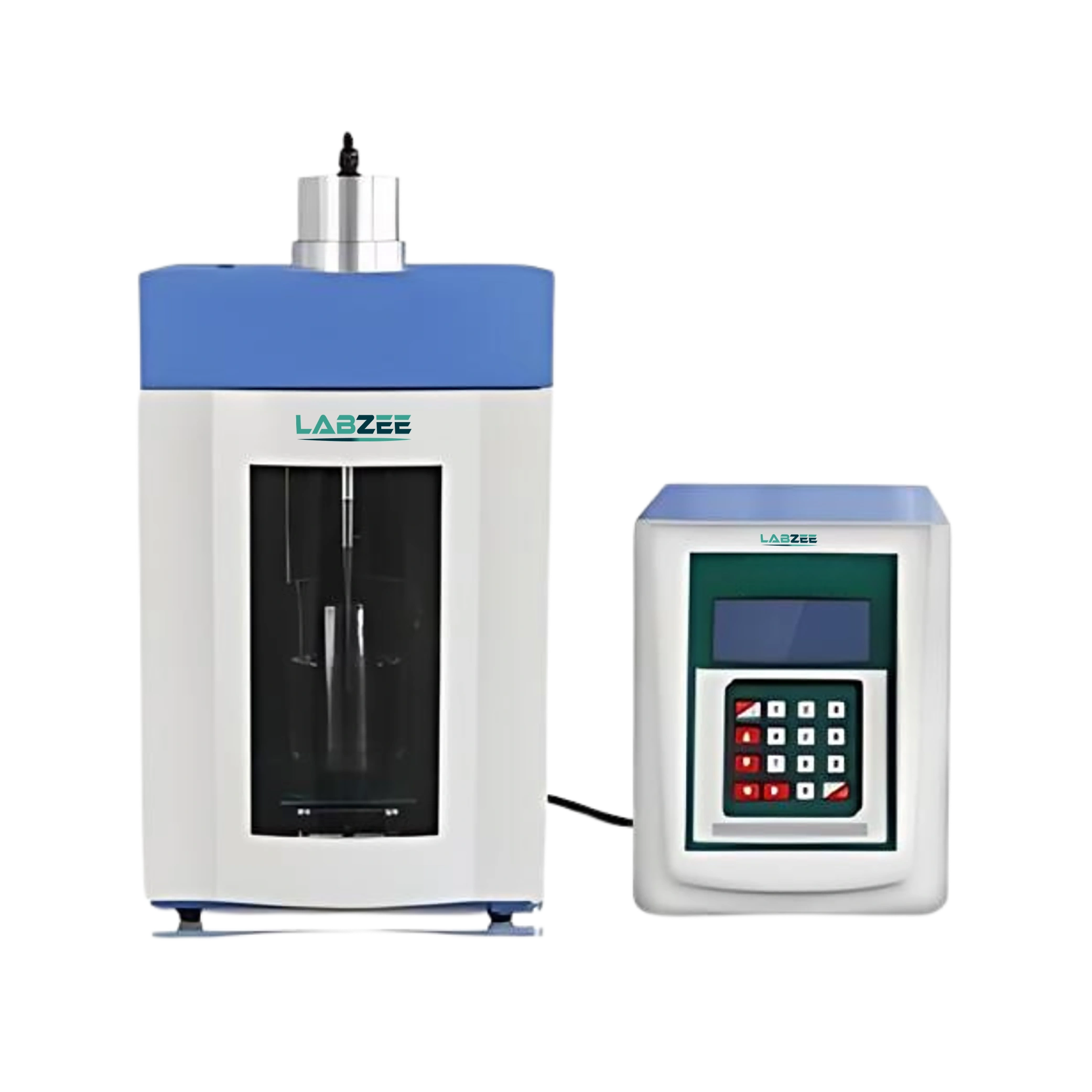

The Ultrasonic Homogenizer BZUH-506 is a high-capacity ultrasonic processor designed for demanding laboratory and industrial applications. It provides up to 1500 W ultrasonic output at 20–25 KHz, ensuring powerful cavitation for breaking cells, preparing emulsions, and dispersing nanoparticles. Its LCD control system allows precise monitoring of temperature, power, and time, while safety alarms protect against overload, overheating, and timing errors. Our Ultrasonic Homogenizer BZUH-506 is ideal for research and production facilities requiring reliable large-scale homogenization.
| Output Power | 10–1500W |
| Ultrasonic Frequency | 20–25 KHz |
| Handling Capacity | 200–1200 ml |
| Standard with Horn | Φ6 & Φ10 mm |
| Timing | 1–999 Minutes Settable |
| Working Mode | 0.1–9.9s Adjustable |
| Temperature Monitoring | 0–99°C |
| Alarm | Fault, Temperature, Time |
| Input Mode | Key Control |
| Display Mode | Liquid Crystal Display |
| Display Content | Temperature, Power, Time |
| Protective Device | Program Error Correction; Overload and Overtemperature Protection |
| Scheme Storage | 50 sets |
| Power Supply | AC220V±5% / 50Hz |
| Dimensions | 410 × 225 × 290 mm |
| Weight | Main Engine 12–15 Kg; Soundproof Box 8 Kg |
The Ultrasonic Homogenizer BZUH-506 is used in biotechnology, pharmaceuticals, nanomaterials, and food science for processes like DNA/RNA extraction, emulsification, and homogenization. The system also supports high-volume laboratory and industrial analysis with reliable performance.
