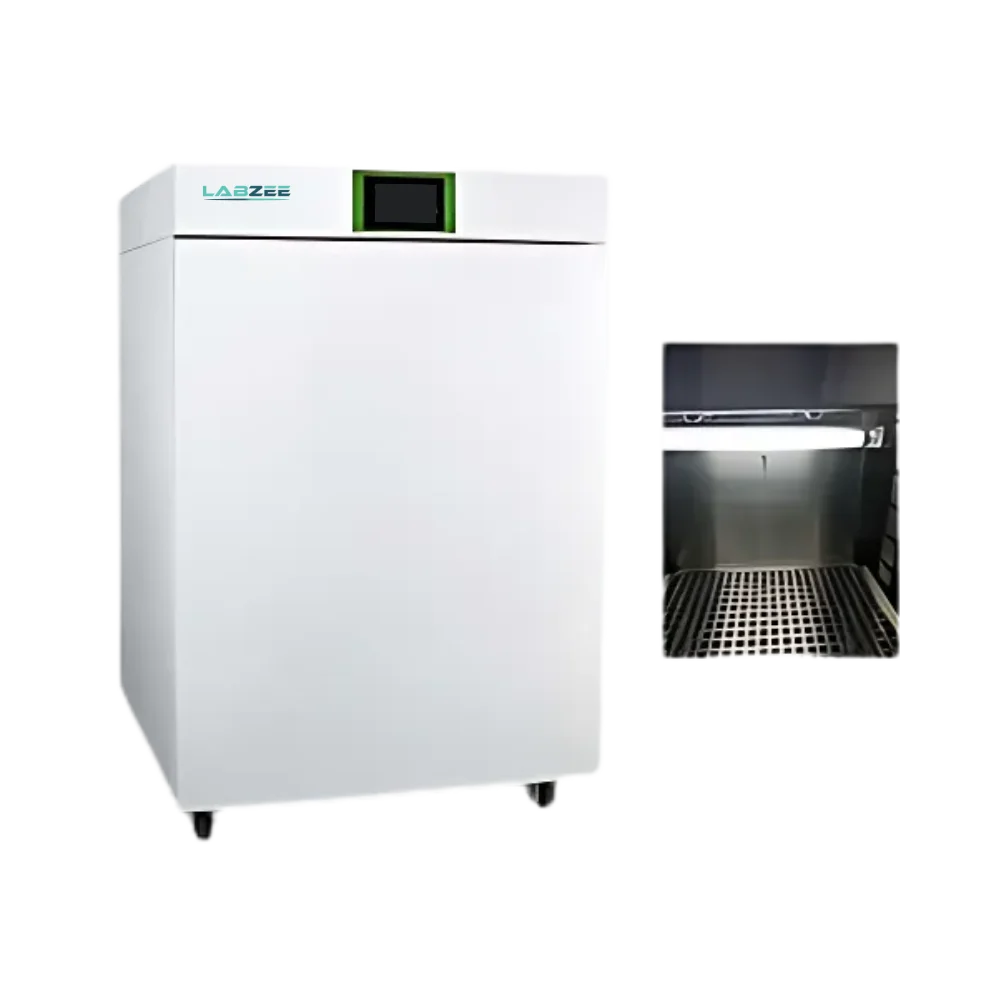

Labzee Water Jacket CO2 Incubator BZWC-504 features a 160L chamber with a water jacket insulation system for superior temperature stability and energy efficiency. It offers precise CO2 regulation within a 0–20% range, maintaining outstanding thermal stability (±0.2°C) and uniformity (±0.3°C) throughout the chamber. The advanced infrared (NDIR) CO2 sensor, paired with gold-plated probes, provides high sensitivity and a long operational lifespan. Its polished stainless-steel inner chamber with an air duct and powder-coated outer housing ensures durability and resistance to corrosion. Our Water Jacket CO2 Incubator BZWC-504 is ideal for applications medicine, biology, and agricultural sciences, culturing biological cells, tissues, and microorganisms.
| Chamber Volume | 160L |
| CO2 Range | 0 to 20% |
| CO2 Control Accuracy | ±0.1% |
| Operating Temperature | +18°C ~ 30°C |
| Temperature Range | RT +5°C to 60°C |
| Temperature Stability | Less than ±0.2°C |
| Temperature Uniformity | Less than ±0.3°C |
| Humidity Method | Natural Vaporization |
| Convection | Forced Air Convection |
| Testing Hole (Diameter) | 16mm on Inner Door |
| Power Supply | AC 220V, 50Hz |
| Power Consumption | 900W |
| Chamber Size (W×D×H) | 50×51×65cm |
| Exterior Size (W×D×H) | 65×73×105 cm |
| Net Weight | 55 Kg |
| Gross Weight | 85 Kg |
3 Perforated Shelves (Expandable to 13)
Labzee Water Jacket CO2 Incubator BZWC-504 is ideal for controlled cultivation of biological cells, tissues, and microbial cultures across advanced applications in biomedical research, molecular biology, pharmaceutical development, and agricultural biotechnology.
Frequently Asked Questions
1: What is the primary application of Water Jacket CO2 Incubator BZWC-504?
The Water Jacket CO2 Incubator BZWC-504 is widely used in modern medicine, biology, chemistry, and agricultural science for culturing biological cells, tissues, and bacteria under controlled conditions.
2: What type of CO2 sensor does the incubator use?
It uses an imported NDIR (infrared) CO2 sensor with gold-plated probes for enhanced accuracy, stability, and extended operational life.
3: How accurately can Water Jacket CO2 Incubator BZWC-504 control CO2 levels?
The incubator can maintain CO2 concentrations within a 0–20% range, with a high control accuracy of ±0.1%. It includes alarms for over-concentration or slow rise in levels.
4: How does the Water Jacket CO2 Incubator BZWC-504 maintain temperature stability?
Water Jacket CO2 Incubator BZWC-504 uses PID control technology and forced air convection with a fan, maintaining temperature stability below ±0.2°C and uniformity below ±0.3°C.
5: How does the Water Jacket CO2 Incubator BZWC-504 prevent contamination during door opening?
When the door is opened, the fan and CO2 intake automatically shut off, and heating is paused to reduce contamination from external air.
6: How is humidity maintained inside the chamber?
Humidity is maintained through a natural evaporation method, ensuring a stable humid environment without active humidifiers.
