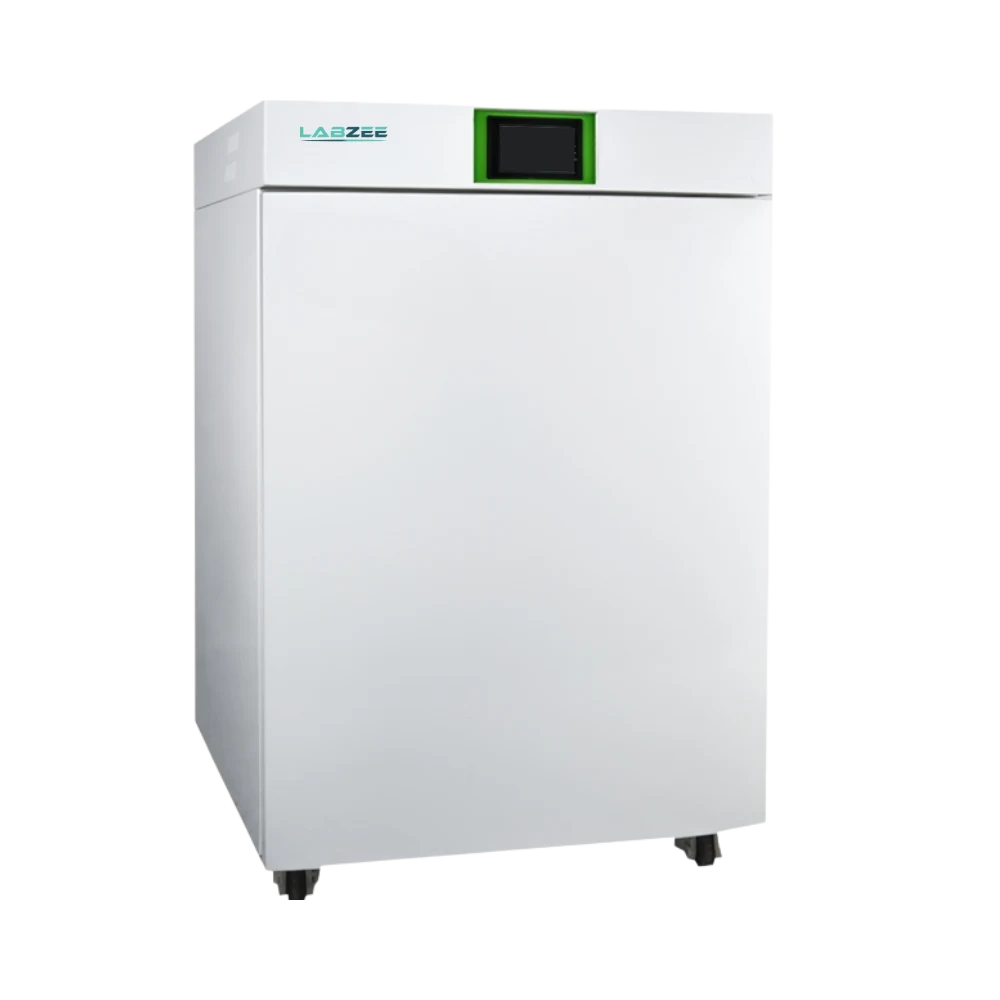

Labzee Water Jacket CO2 Incubator BZWC-507 offers precise temperature and CO2 control within a spacious 270-liter chamber, operating from RT +5°C to 60°C. It features PID control and an imported NDIR sensor with gold-plated probes to maintain CO2 concentrations from 0 to 20% with ±0.1% accuracy. The incubator includes built-in safety features such as over-temperature protection, low-water level alerts, and a backup mechanical thermostat for dependable operation. Its dual-layer design, combining a water jacket and durable outer shell, ensures stable thermal performance and reliability. Our Water Jacket CO2 Incubator BZWC-507 is ideal for high-capacity and high-accuracy applications in research, pharmaceutical, and clinical laboratories.
| Chamber Volume | 270L |
| CO2 Range | 0 to 20% |
| CO2 Control Accuracy | ±0.1% |
| Operating Temperature | +18°C ~ 30°C |
| Temperature Range | RT +5°C to 60°C |
| Temperature Stability | Less than ±0.2°C |
| Temperature Uniformity | Less than ±0.3°C |
| Humidity Method | Natural Vaporization |
| Convection | Forced Air Convection |
| Testing Hole on Inner Door (Diameter) | 16mm |
| Power Supply | AC 220V, 50Hz |
| Power Consumption | 1400W |
| Chamber Size (W×D×H) | 60×60×77 cm |
| Exterior Size (W×D×H) | 72×75×112 cm |
| Net Weight | 132 Kg |
| Gross Weight | 165 Kg |
3 Perforated Shelves (Expandable to 16)
Labzee Water Jacket CO2 Incubator BZWC-507 is ideal for cultivating cells, tissues, and bacterial cultures in fields such as medical research, biology, chemistry, and agriculture.
Frequently Asked Questions
1: What is the chamber capacity of the Labzee BZWC-507 CO2 incubator?
The incubator has a 270-liter chamber, making it suitable for high-capacity incubation needs. It's ideal for use in research, pharmaceutical, and clinical laboratories.
2: What is the CO2 concentration range and accuracy?
Labzee Water Jacket CO2 Incubator BZWC-507 supports a CO2 range of 0 to 20% with ±0.1% accuracy. This is achieved using an imported NDIR infrared sensor and gold-plated probes for long-term precision.
3: How is temperature controlled and maintained?
Our Water Jacket CO2 Incubator BZWC-507 uses PID control and forced air convection to maintain temperatures from RT +5°C to 60°C. It offers stability within ±0.2°C and uniformity within ±0.3°C.
4: What safety features are included in the Water Jacket CO2 Incubator BZWC-507?
Labzee Water Jacket CO2 Incubator BZWC-507 includes over-temperature protection, low-water alerts (for water-jacketed models), leakage protection, and a backup mechanical thermostat. These ensure safe and reliable operation even in case of control failure.
5: What humidification method is used?
The incubator uses natural evaporation for humidification. This passive method maintains optimal chamber humidity for sensitive cultures.
6: The inner chamber is made of polished stainless steel with an air duct for even airflow. The exterior is constructed from powder-coated steel for durability and corrosion resistance.
The inner chamber is made of polished stainless steel with an air duct for even airflow. The exterior is constructed from powder-coated steel for durability and corrosion resistance.
7: How many shelves are included?
Labzee Water Jacket CO2 Incubator BZWC-507 comes with 3 perforated shelves. The interior design allows expansion up to 16 shelves.
