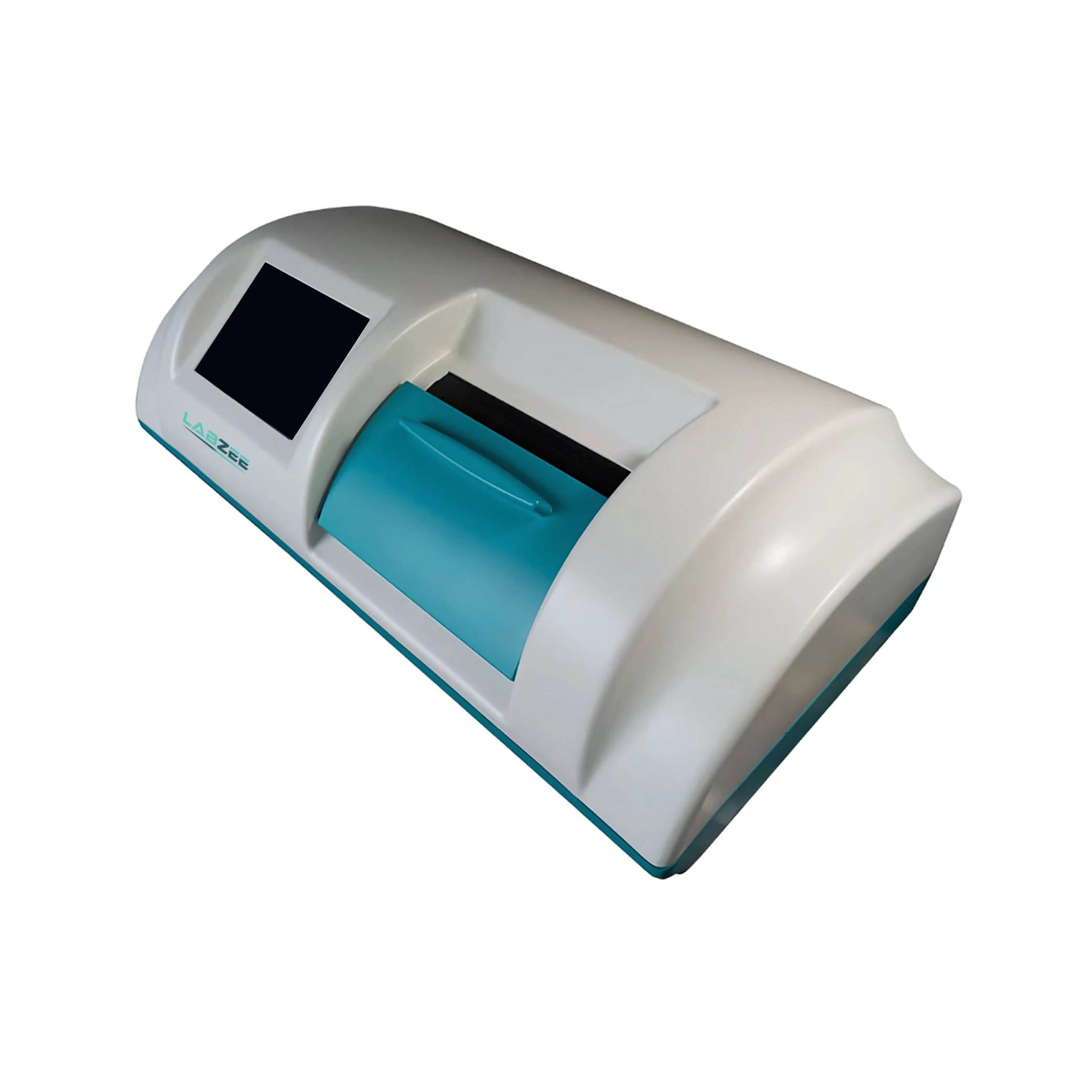

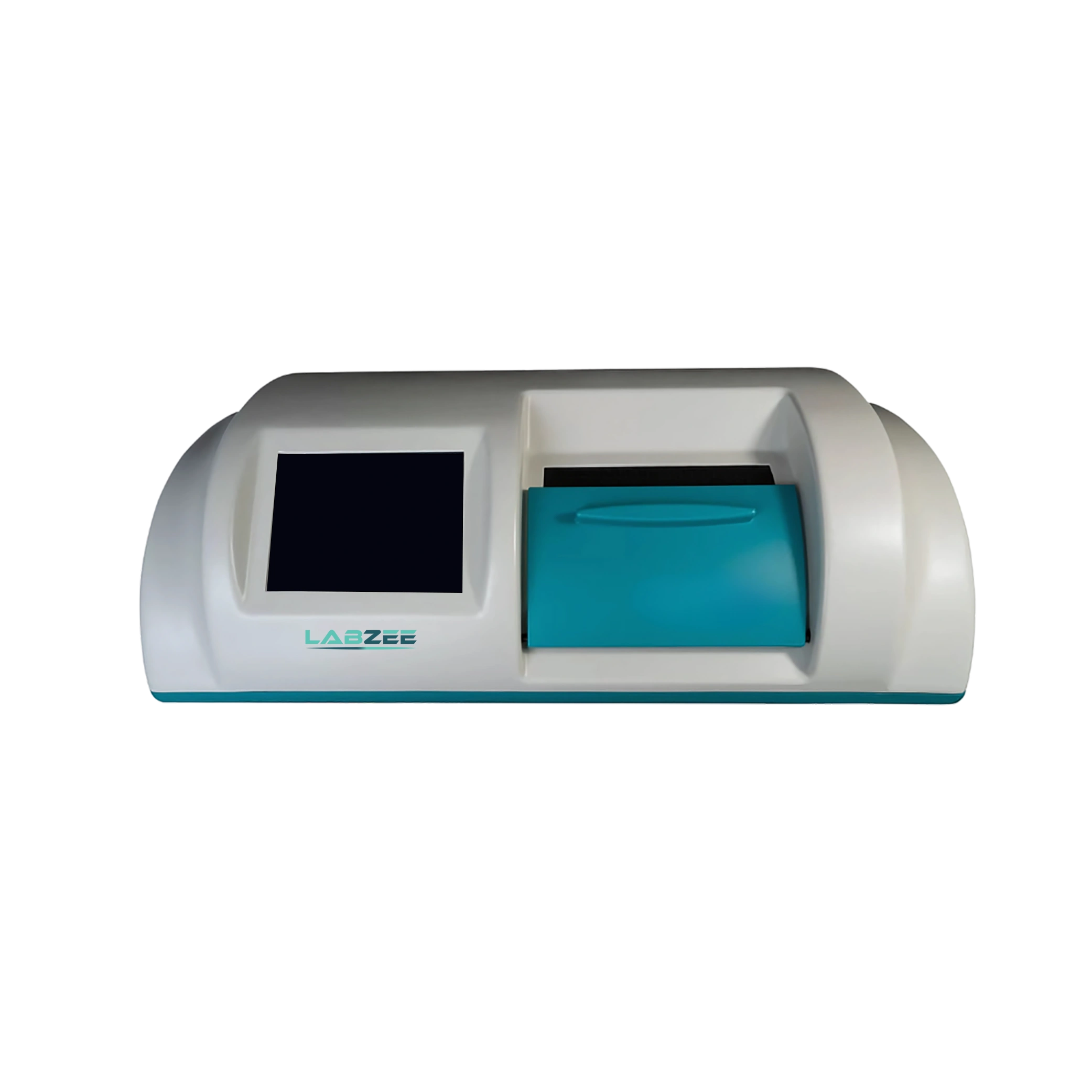

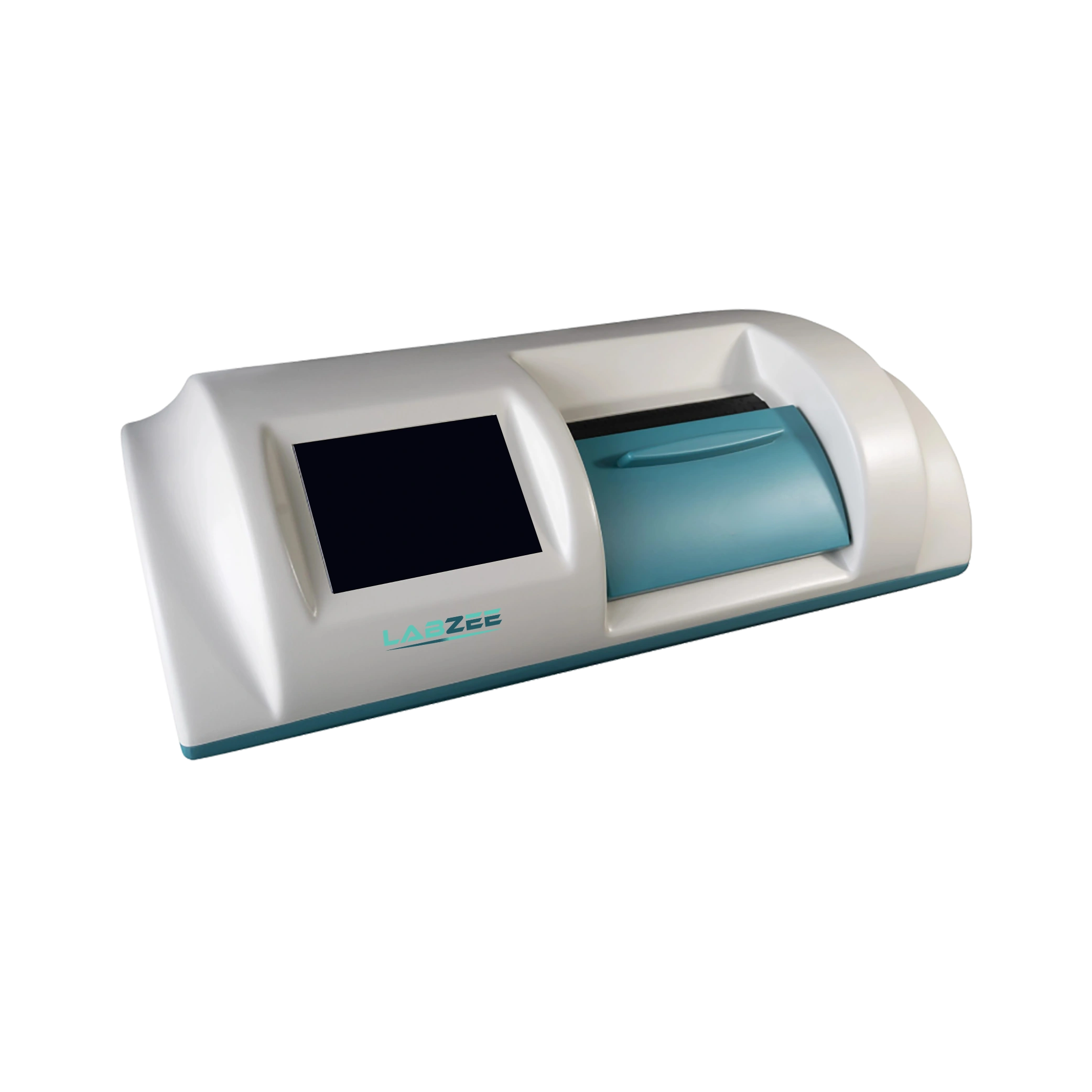

Automatic Polarimeter BZPM-501 features an 8-inch touch screen with a user-friendly interface for precise optical measurements. It utilizes a high-quality polymer prism for accurate and reliable results. This device with an optional 200mm Peltier instrument and a measuring range of ±90° ensures superior performance. It offers multiple measurement modes, including optical rotation, specific rotation, and concentration analysis. Our Automatic Polarimeter BZPM-501 includes LED illumination and a comprehensive database storing for durability and efficiency.
| Measuring Range | ± 90° |
| Resolution | 0.001° |
| Accuracy | ± 0.01° |
| Repeatability | ± 0.003° |
| Temperature Range | 0 to 100°C |
| Temperature Resolution | 0.1°C |
| Sensitivity | Minimum 0.5% |
| Prism | Polymer |
| Light Source | LED, 100000 hours |
| Wavelength | 589 nm |
| Measuring Mode | Optical rotation, Specific rotation, Concentration International, sugar scale |
| Sample Chamber | Up to 200 mm |
| Interface | RS232, USB |
| Display | 8 Inch touch screen, color LCD |
| Database | 4000 groups data |
| Net Weight | 28 Kg |
| Gross Weight | 30 Kg |
| Product Dimension | 72 × 37 × 24 cm |
| Packing Dimension | 88 × 59 × 42 cm |
| Configuration | Polarimeter, 100 mm ×1 (glass tube), 200 mm ×1 (glass tube), 4G USB flash, Power cord |
• Quartz Plate (Single Plate)
• Glass Tube 200mm for General Use
• Glass Tube 100mm for General Use
• Glass Tube 50mm for General Use
• Glass Tube 200mm for Sampling Through Funnel
• Glass Tube 100mm for Sampling Through Funnel
• Glass Tube 200mm for Water Bath
• Glass Tube 50mm for Small Sample
• Micro-Flow Through Tube 50mm (Stainless Steel)
• Micro-Flow Through Tube 10mm (Stainless Steel)
• Special Tube with Hose Connectors (Stainless Steel)
• Printer
• Plain Paper
• Sampling Assistant
• Mini Dryer
• Barcode Reader
• Polarimeter Peltier Consumable Set
• Digi Link SW Package
• Quartz Plate with NTC Sensor
• Peltier 200mm Set (Stainless Steel)
• Peltier 200mm Set (Anti-Corrosion)
• Peltier 100mm Set (Stainless Steel)
• Peltier 100mm Set (Anti-Corrosion)
• Peltier 50mm Set (Stainless Steel)
• Peltier 50mm Set (Anti-Corrosion)
• Temperature Sensor
The Automatic Polarimeter BZPM-501 can be used in pharmaceuticals for chiral analysis and quality control. It can also be used in measuring sugar concentration in food and beverages and analysing chemical compounds in research and essential oils.
Frequently Asked Questions
1: What types of measurements can the Automatic Polarimeter BZPM-501 perform?
The BZPM-501 supports multiple measurement modes including optical rotation, specific rotation, concentration analysis, and measurements on the international sugar scale. This versatility makes it ideal for applications in pharmaceuticals, food analysis, and chemical industries.
2: What is the temperature control range and resolution of the device?
The BZPM-501 supports a temperature range of 0°C to 100°C with a temperature resolution of 0.1°C. With the optional 200 mm Peltier temperature control unit, it offers stable and precise thermal regulation for temperature-sensitive samples.
3: How user-friendly is the interface of the BZPM-501?
It features a large 8-inch color LCD touch screen that provides a user-friendly and intuitive interface. The system also allows for data storage of up to 4000 groups, streamlining workflow and record keeping.
4: What makes the BZPM-501 suitable for long-term use?
The BZPM-501 uses an LED light source with a lifespan of up to 100,000 hours, reducing the need for frequent replacements. Its robust construction, high-precision components, and polymer prism further enhance its durability and reliability for long-term lab operations.
5: How does the database feature improve workflow efficiency?
The built-in database can store up to 4000 groups of data, allowing users to easily access, review, and export past measurements. This minimizes manual record-keeping, reduces errors, and improves traceability in quality assurance workflows.
6: How accurate are your polarimeters?
Our models offer high accuracy, typically ranging from ±0.01° to ±0.002° optical rotation, depending on the model. Contact us for detailed specifications.
7: Is temperature control important in polarimetry?
Yes. Optical rotation is temperature-sensitive, so maintaining a constant temperature (often 20°C or 25°C) using Peltier elements or a water bath ensures accurate and repeatable results.
8: How do you calibrate an automatic polarimeter?
Calibration is usually done using certified quartz control plates or standard solutions with known optical rotation values. Many modern polarimeters also have built-in auto-calibration functions.
