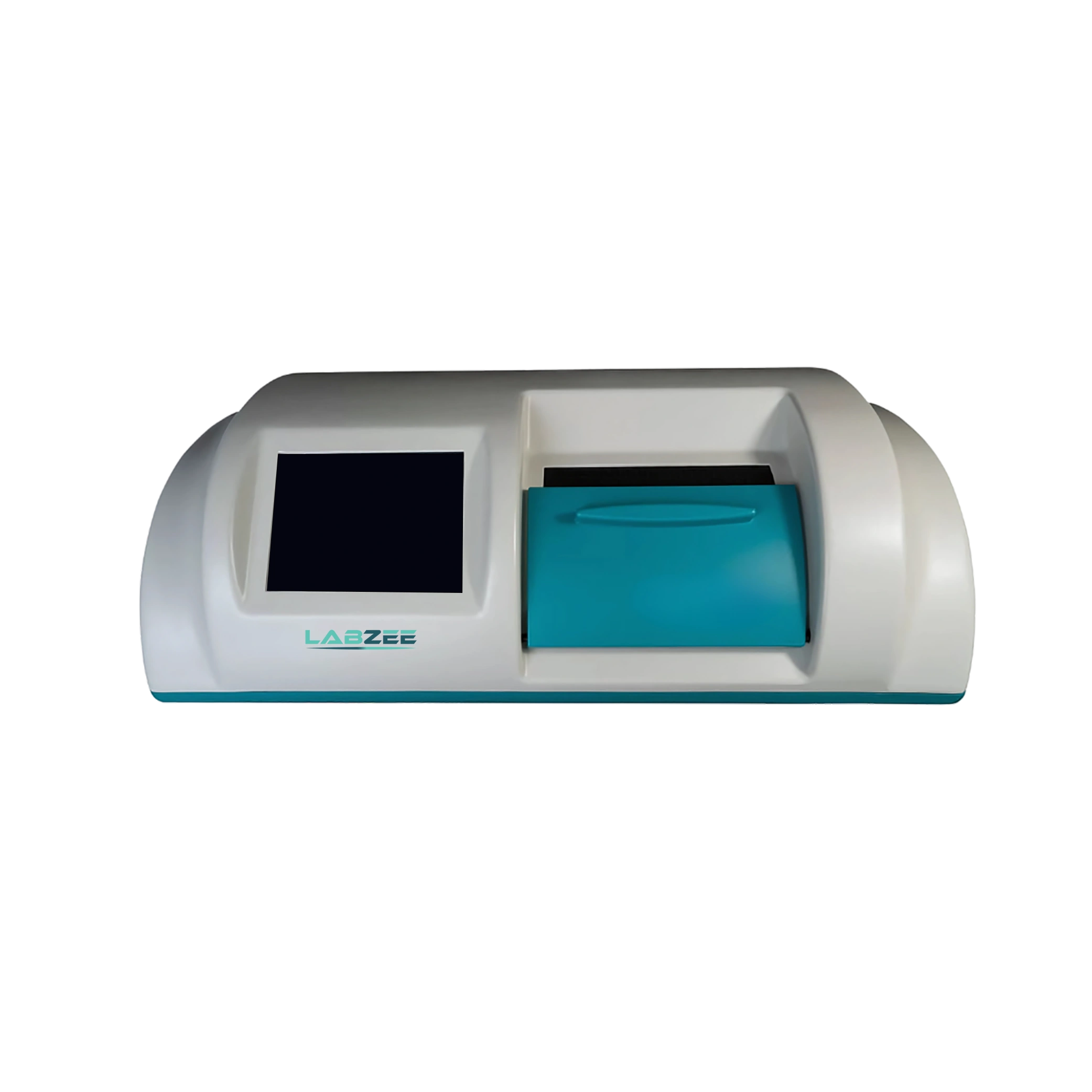

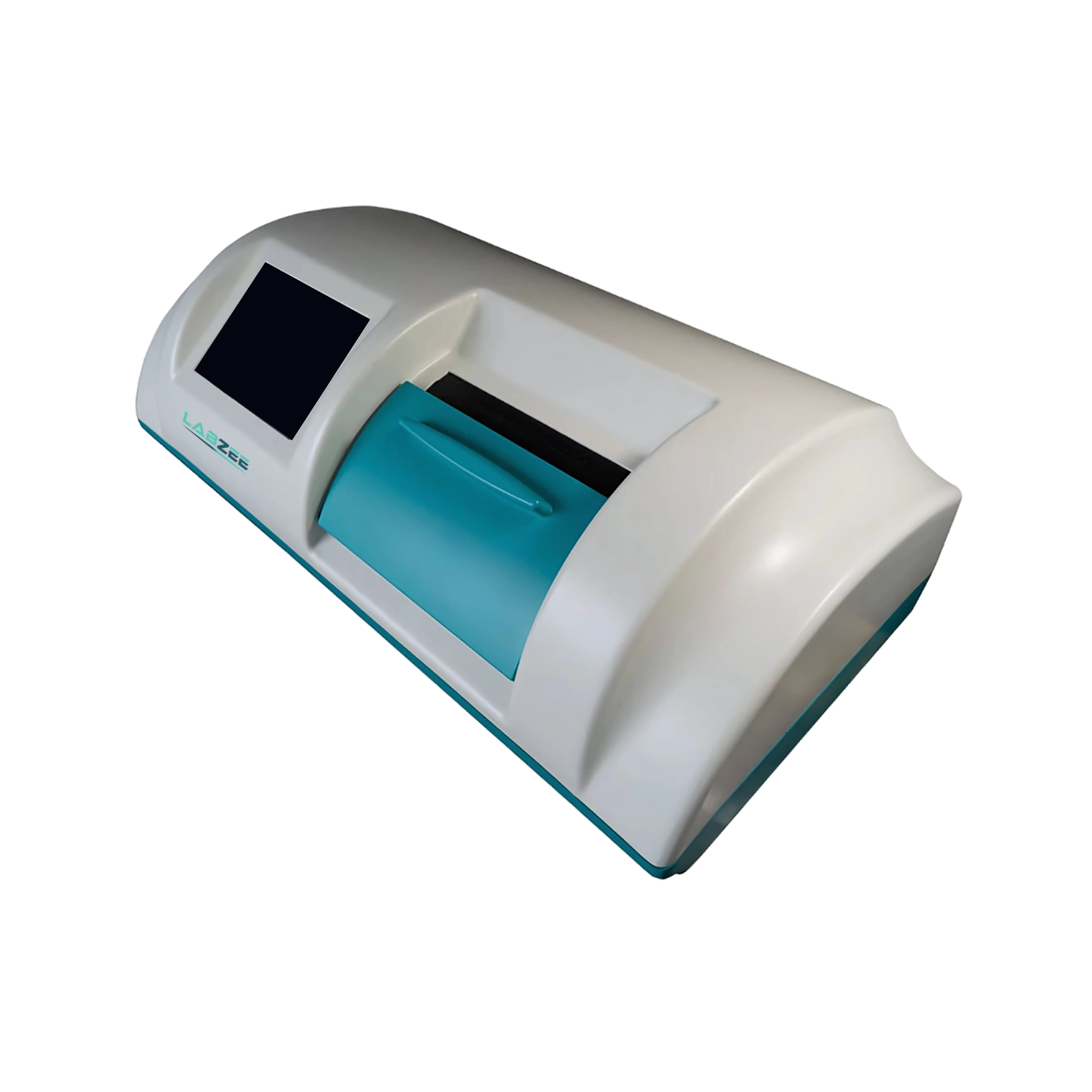

Automatic Polarimeter BZPM-504 features a Glan Thompson prism and an 8-inch touch screen for precise optical rotation measurements. It offers a cost-effective solution with an optional 200mm Peltier instrument for accurate temperature control. This device with 0.001° resolution and ±0.004° accuracy ensures highly reliable performance. It provides the long-lasting LED light source that gives stable illumination for consistent results. Our Automatic polarimeter BZPM-504 is equipped with USB and RS232 interfaces and stores up to 4,000 data groups, making it ideal for laboratory and industrial applications.
| Measuring Range | ± 90° |
| Resolution | 0.001° |
| Accuracy | ± 0.004° |
| Repeatability | ± 0.003° |
| Temperature Range | 0 to 100°C |
| Temperature Resolution | 0.1°C |
| Sensitivity | Minimum 0.1% |
| Prism | Glan Thompson |
| Light Source | LED, 100000 hours |
| Wavelength | 589 nm |
| Measuring Mode | Optical rotation, Specific rotation, Concentration, International sugar scale |
| Sample Chamber | Up to 200 mm |
| Interface | RS232, USB |
| Display | 8 Inch touch screen, color LCD |
| Database | 4000 groups data |
| Net Weight | 28 Kg |
| Gross Weight | 30 Kg |
| Product Dimension | 72 × 37 × 24 cm |
| Packing Dimension | 88 × 59 × 42 cm |
| Configuration | Polarimeter, 200 mm × 1 (glass tube), 100 mm × 1 (glass tube), Syringe, Brush, 4G USB flash, Power cord |
• Quartz Plate (Single Plate)
• Glass Tube 200mm for General Use
• Glass Tube 100mm for General Use
• Glass Tube 50mm for General Use
• Glass Tube 200mm for Sampling Through Funnel
• Glass Tube 100mm for Sampling Through Funnel
• Glass Tube 200mm for Water Bath
• Glass Tube 50mm for Small Sample
• Micro-Flow Through Tube 50mm (Stainless Steel)
• Micro-Flow Through Tube 10mm (Stainless Steel)
• Special Tube with Hose Connectors (Stainless Steel)
• Printer
• Plain Paper
• Sampling Assistant
• Mini Dryer
• Barcode Reader
• Polarimeter Peltier Consumable Set
• Digi Link SW Package
• Quartz Plate with NTC Sensor
• Peltier 200mm Set (Stainless Steel)
• Peltier 200mm Set (Anti-Corrosion)
• Peltier 100mm Set (Stainless Steel)
• Peltier 100mm Set (Anti-Corrosion)
• Peltier 50mm Set (Stainless Steel)
• Peltier 50mm Set (Anti-Corrosion)
• Temperature Sensor
The Automatic Polarimeter BZPM-504 can be used in pharmaceuticals for purity testing and food industries for sugar concentration analysis. It can support chemical research and essential oil quality control. Additionally, it can aid in biotechnology and medical studies for molecular analysis.
Frequently Asked Questions
1: Does the BZPM-504 support temperature control for sensitive measurements?
Yes, it offers an optional 200 mm Peltier temperature control unit, allowing accurate temperature regulation from 0 to 100°C with a resolution of 0.1°C—critical for precision measurements.
2: How is data stored and transferred from the device?
The BZPM-504 can store up to 4,000 data groups and includes USB and RS232 interfaces for easy data export and connectivity with external devices or computers.
3: What types of measurements can the BZPM-504 perform?
This polarimeter supports multiple measuring modes including optical rotation, specific rotation, concentration, and international sugar scale, making it versatile for various applications in pharmaceuticals, food, and chemical industries.
4: What kind of display does the BZPM-504 have?
It is equipped with an 8-inch color LCD touch screen, allowing for intuitive operation, easy navigation, and clear visualization of results and settings.
5: Can the polarimeter be used for sugar analysis?
Yes, it includes a specific international sugar scale mode, making it suitable for sucrose content analysis in the food and beverage industry.
6: How accurate are your polarimeters?
Our models offer high accuracy, typically ranging from ±0.01° to ±0.002° optical rotation, depending on the model. Contact us for detailed specifications.
7: Is temperature control important in polarimetry?
Yes. Optical rotation is temperature-sensitive, so maintaining a constant temperature (often 20°C or 25°C) using Peltier elements or a water bath ensures accurate and repeatable results.
8: How do you calibrate an automatic polarimeter?
Calibration is usually done using certified quartz control plates or standard solutions with known optical rotation values. Many modern polarimeters also have built-in auto-calibration functions.
