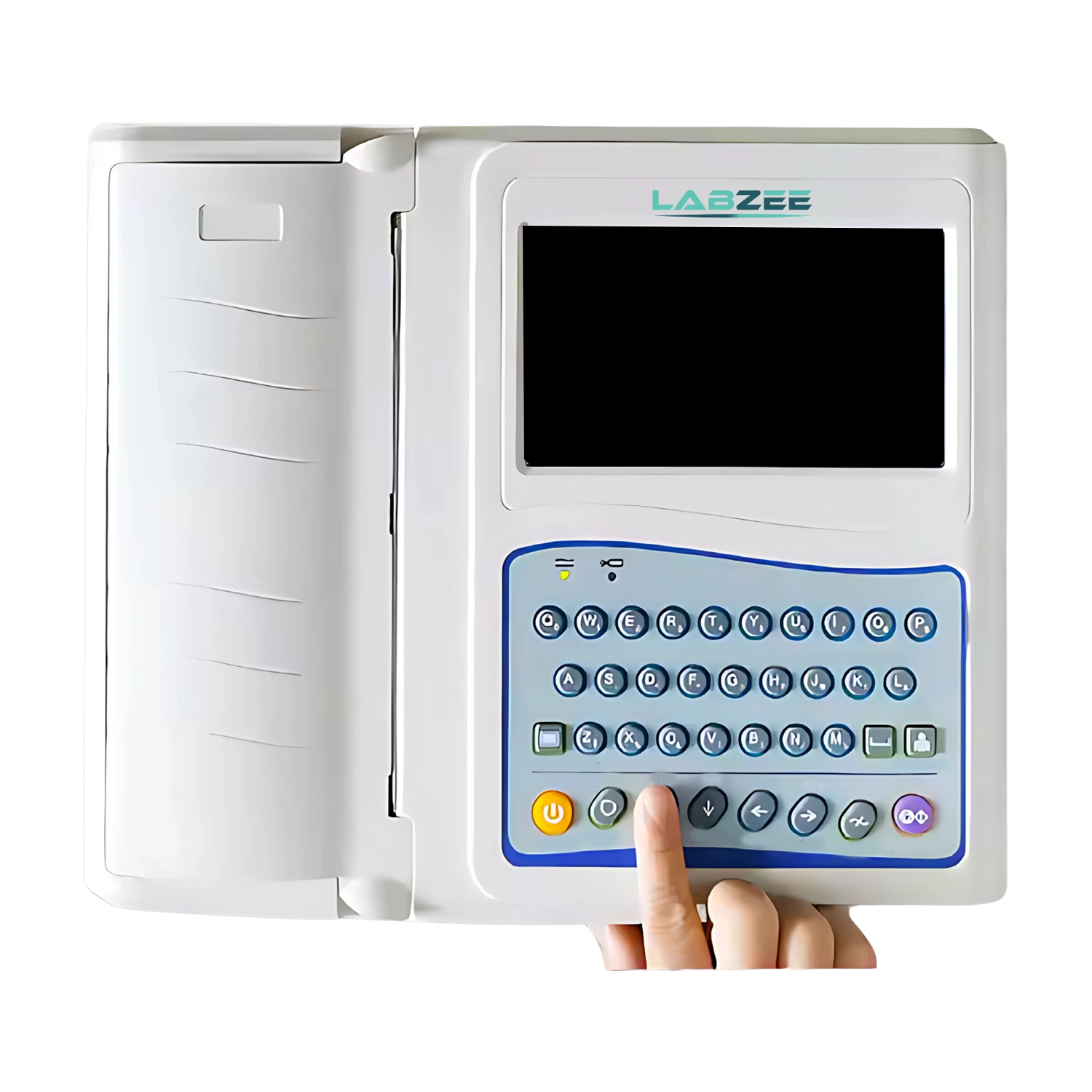

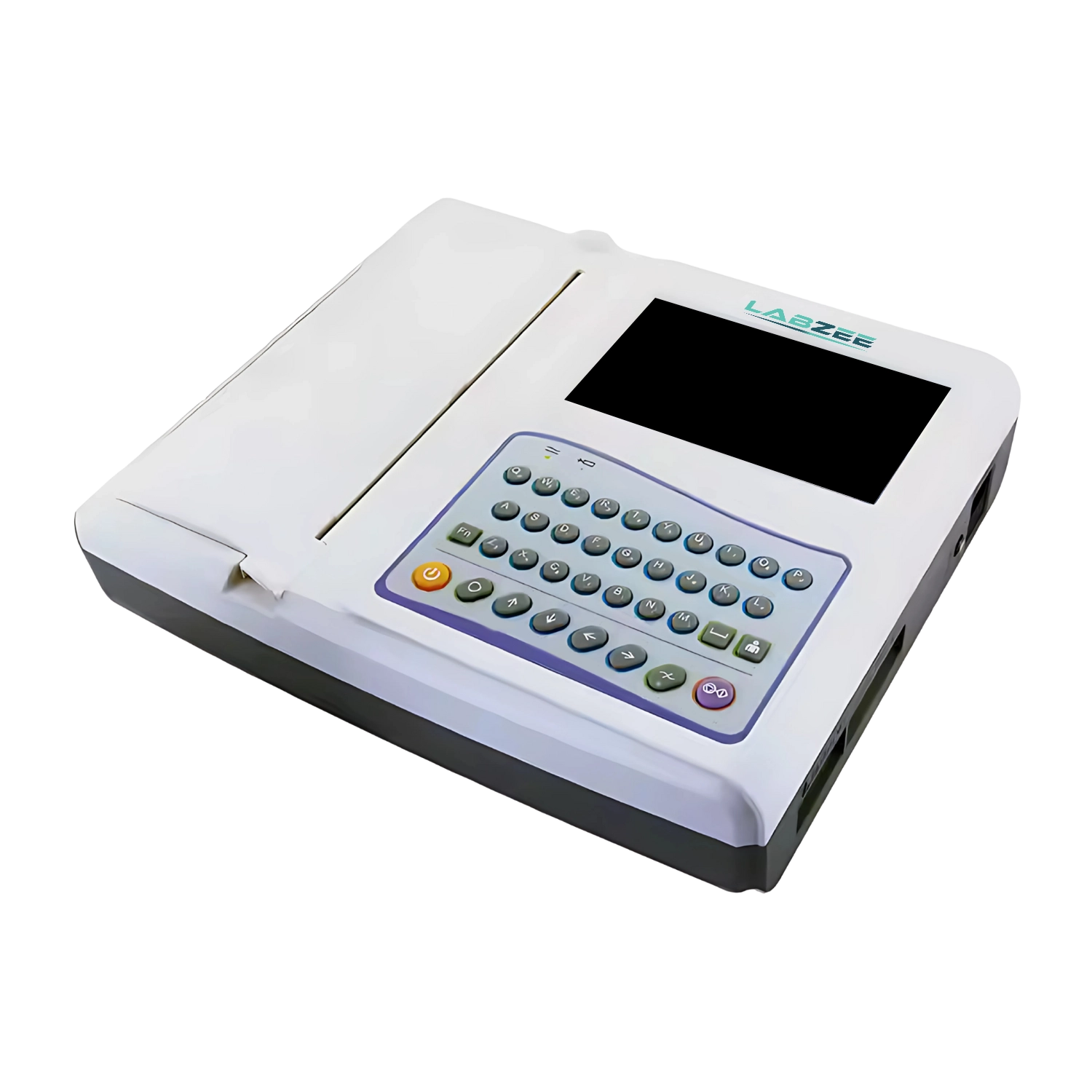

Digital ECG Machine BZECG-506 offers flexible operation through manual, auto, physical examination making it suitable for a range of clinical environments. It supports 12-channel recording with standard lead acquisition and high-resolution sampling for precise results. This device includes the rechargeable battery which provides dependable, portable functionality. It stores multiple patient cases and with expandable capacity, it simplifies data management. Our Digital ECG Machine BZECG-506 connects seamlessly with USB drives, printers, and optional barcode scanners for enhanced workflow efficiency.
| Lead | Standard 12 leads |
| Lead Acquisition | 12 bit/1000 Hz (synchronously 12 leads) |
| Work Mode | Manual / Auto / Physical Examination / Storage |
| Filter | AC Filter: 50Hz / 60Hz, EMG Filter: 25Hz / 45Hz, Anti-Drift Filter: 0.15Hz (adaptive) |
| CMMR | ≥ 100dB (with AC filter) |
| Input Circuit | Floating: protection circuit against Defibrillator effect |
| Input Impedance | ≥ 50MΩ |
| Input Circuit Current | ≤ 0.05 µA |
| Patient Current Leakage | < 10 µA |
| Calibrating Voltage | 1mV ± 2% |
| Voltage Tolerance | ≥ ± 500mV |
| Time Constant | ≥ 3.2s |
| Frequency Response | 0.05 to 160Hz (-3db) |
| Noise Level | < 15 µV p-p |
| Inter Channel Interference | ≤ 0.5mm |
| Sensitivity | Auto, 2.5, 5, 10, 20, 40mm/mV |
| Recording Mode | 3ch+++, 6ch, 6ch+, 12ch Default Man. Mode is 3ch++ format, Default Auto. Mode is 12ch format |
| Paper Speed | 6.25, 12.5, 25, 50mm/s (± 3%) |
| Paper | 215 mm Roll Paper |
| Communication | RS232 / USB Port |
| Power Supply | AC 110 to 230V (±10%), 50/60Hz (±1Hz), 60VA, DC Built-In rechargeable battery, 14.4V (4400mmAh) |
| Weight | 4.8 Kg |
| Dimension | 370 × 300 × 85 mm |
• Main unit × 1 set
• Patient cable × 1 Piece
• Limb electrode × 1 Set (4 pieces)
• Chest electrode × 1 Set (6 pieces)
• Power cable × 1 Piece
• Grounding cable × 1 Piece
• Fuse × 2 Pieces
• Paper axis × 2 Pieces
• Printing paper × 1 Roll
• Operation manual × 1 Copy
The Digital ECG Machine BZECG-506 is ideal for use in hospitals, clinics, emergency care, and mobile medical units. Its flexible operation supports routine check-ups, cardiac assessments, and physical examinations. With a portable design and rechargeable battery, it is well-suited for both bedside monitoring and field diagnostics. Advanced connectivity options ensure efficient data handling and smooth integration into busy clinical workflows.
Frequently Asked Questions
1: What types of operating modes does the BZECG-506 support?
The BZECG-506 supports Manual, Auto, Physical Examination, and Storage modes, making it suitable for a wide range of diagnostic needs and clinical settings.
2: Can I use this BZECG-506 for portable or bedside applications?
Absolutely. BZECG-506 includes a built-in rechargeable Li-ion battery, making it portable and reliable even during power outages or in mobile setups.
3: How much patient data can the BZECG-506 store?
BZECG-506 can store data for up to 250 patients by default, with the option to extend the storage capacity if needed.
4: Is the ECG display live or only post-recording in BZECG-506?
The BZECG-506 machine provides real-time ECG waveform display during acquisition, allowing immediate assessment before printing or saving.
5: Can I back up the stored patient cases from BZECG-506?
Yes, patient data can be exported to a USB drive for backup, sharing, or record-keeping.
6: Can I transfer ECG data to a computer or EMR system?
Definitely. Digital ECG machines often include USB, LAN, Wi-Fi, or Bluetooth connectivity for easy transfer of ECG data to computers or electronic medical records (EMR) systems.
7: Do digital ECG machines support automatic interpretation?
Yes. Most digital models feature built-in software that analyzes the ECG and provides a preliminary interpretation, saving time and aiding diagnosis.
8: Is internet or software required to use a digital ECG machine?
No internet is required for basic functions. However, some models come with optional software or cloud integration for advanced data management and remote access.
