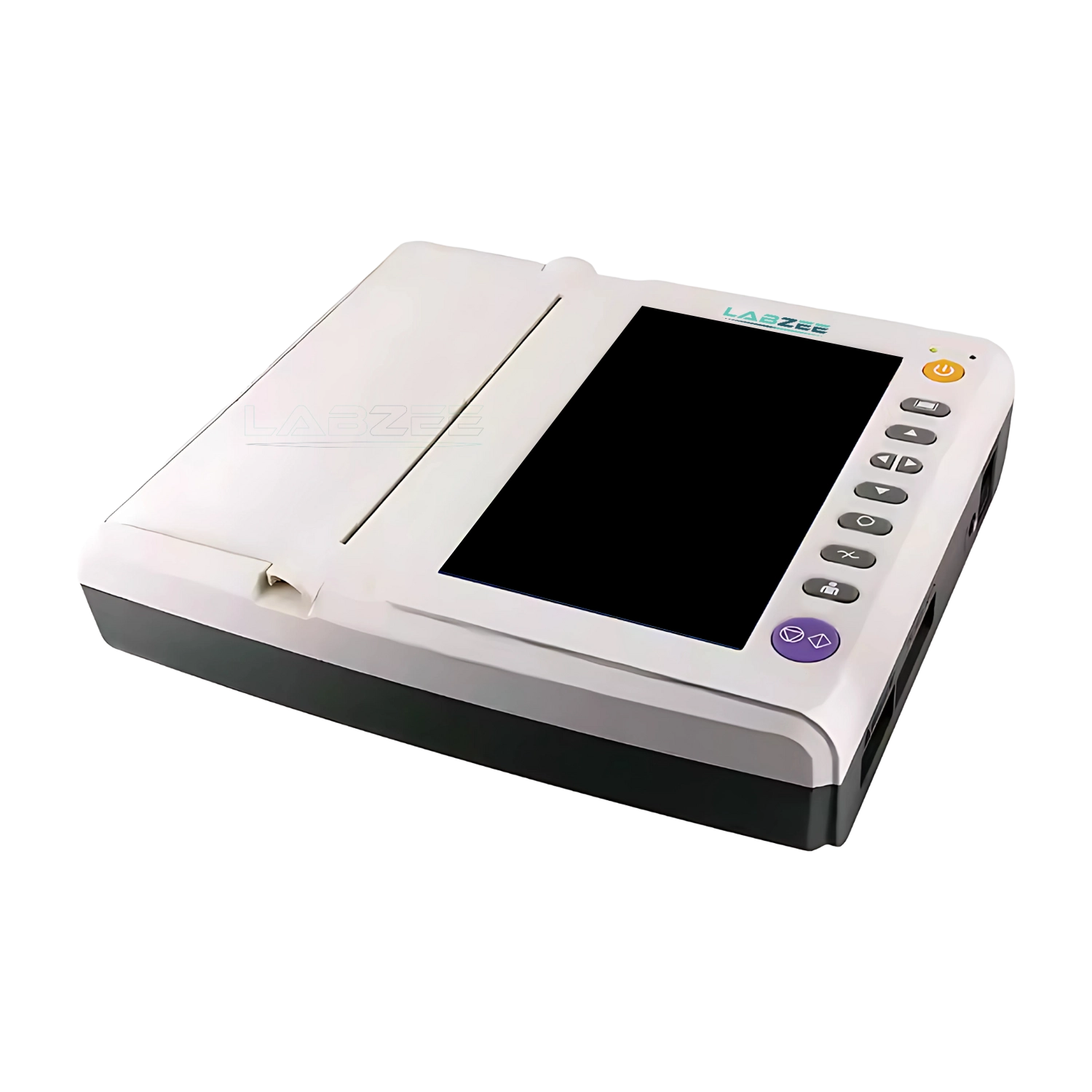

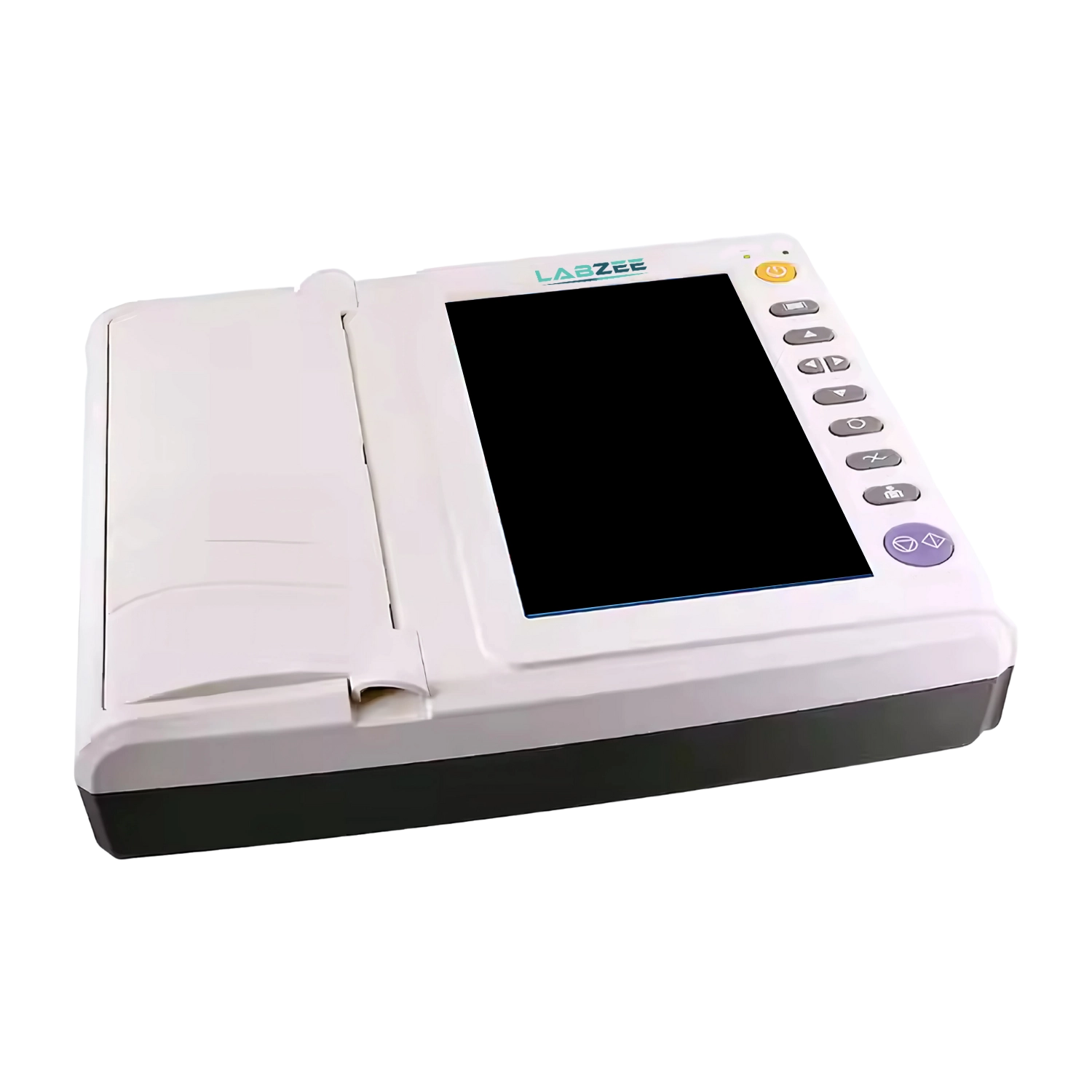

Digital ECG machine BZECG-507 features standard lead acquisition with high-resolution sampling for precise and synchronized recordings. It supports multiple working modes making it suitable for a variety of clinical settings. This device with its advanced filtering systems such as AC, EMG, and adaptive anti-drift filters ensures clean and stable signal quality. It includes a color touch screen for intuitive operation, a rechargeable battery for portable use. Our Digital ECG machine BZECG-507 with its multi-channel recording and the ability to store numerous patient cases with expandable capacity supports efficient and reliable diagnostics.
| Lead | Standard 12 leads |
| Lead Acquisition | 12 bit/1000 Hz (synchronously 12 leads) |
| Work Mode | Manual / Auto / Physical Examination / Storage |
| Filter | AC Filter: 50Hz / 60Hz, EMG Filter: 25Hz / 45Hz, Anti-Drift Filter: 0.15Hz (adaptive) |
| CMMR | ≥ 100dB (with AC filter) |
| Input Circuit | Floating: protection circuit against Defibrillator effect |
| Input Impedance | ≥ 50MΩ |
| Input Circuit Current | ≤ 0.05 µA |
| Patient Current Leakage | < 10 µA |
| Calibrating Voltage | 1mV ± 2% |
| Voltage Tolerance | ≥ ± 500mV |
| Time Constant | ≥ 3.2s |
| Frequency Response | 0.05 to 160Hz (-3db) |
| Noise Level | < 15 µV p-p |
| Inter Channel Interference | ≤ 0.5mm |
| Sensitivity | Auto, 2.5, 5, 10, 20, 40mm/mV |
| Recording Mode | 3ch+++, 6ch, 6ch+, 12ch Default Man. Mode is 3ch++ format, Default Auto. Mode is 12ch format |
| Paper Speed | 6.25, 12.5, 25, 50mm/s (± 3%) |
| Paper | 215 mm Roll Paper |
| Communication | RS232 / USB Port |
| Power Supply | AC 110 to 230V (±10%), 50/60Hz (±1Hz), 60VA, DC Built-In rechargeable battery, 14.4V (4400mmAh) |
| Weight | 5.8 Kg |
| Dimension | 370 × 300 × 85 mm |
• Main unit × 1 set
• Patient cable × 1 Piece
• Limb electrode × 1 Set (4 pieces)
• Chest electrode × 1 Set (6 pieces)
• Power cable × 1 Piece
• Grounding cable × 1 Piece
• Fuse × 2 Pieces
• Paper axis × 2 Pieces
• Printing paper × 1 Roll
• Operation manual × 1 Copy
The Digital ECG Machine BZECG-507 is well-suited for hospitals, clinics, emergency care, and mobile medical units. Its versatile operation supports routine check-ups, cardiac evaluations, and physical exams. With a built-in rechargeable battery, it enables easy bedside monitoring and field use. Enhanced connectivity options allow for seamless data management and integration into fast-paced clinical environments.
Frequently Asked Questions
1: Can this BZECG-507 machine support 12-channel ECG recordings?
Yes, BZECG-507 supports 12-channel simultaneous ECG recordings with high-resolution sampling for detailed and synchronized analysis.
2: What output or connectivity options does the BZECG-507 offer?
BZECG-507 supports USB flash drives, laser printers, and code scanners (optional). It also includes USB and RS232 ports for smooth data transfer and system integration.
3: Can I customize the sensitivity and paper speed in BZECG-507 during recording?
Yes, the BZECG-507 offers adjustable sensitivity settings (Auto, 2.5, 5, 10, 20, 40 mm/mV) and multiple paper speeds (6.25, 12.5, 25, 50 mm/s ±3%) to suit different diagnostic needs.
4: Can the BZECG-507 be used during physical examinations or stress situations?
Yes, the Physical Examination mode allows real-time monitoring during movement or examination, providing flexibility during dynamic assessments.
5: Is there a risk of data loss when the battery is low?
The BZECG-507 provides battery status indicators and low-battery warnings. In case of power failure, unsaved data may be lost, so it’s recommended to save or export recordings promptly.
6: Can I transfer ECG data to a computer or EMR system?
Definitely. Digital ECG machines often include USB, LAN, Wi-Fi, or Bluetooth connectivity for easy transfer of ECG data to computers or electronic medical records (EMR) systems.
7: Do digital ECG machines support automatic interpretation?
Yes. Most digital models feature built-in software that analyzes the ECG and provides a preliminary interpretation, saving time and aiding diagnosis.
8: Is internet or software required to use a digital ECG machine?
No internet is required for basic functions. However, some models come with optional software or cloud integration for advanced data management and remote access.
