Light Growth Chamber BZGG-507
Product1
Product2
Product3

Light Growth Chamber BZGG-507

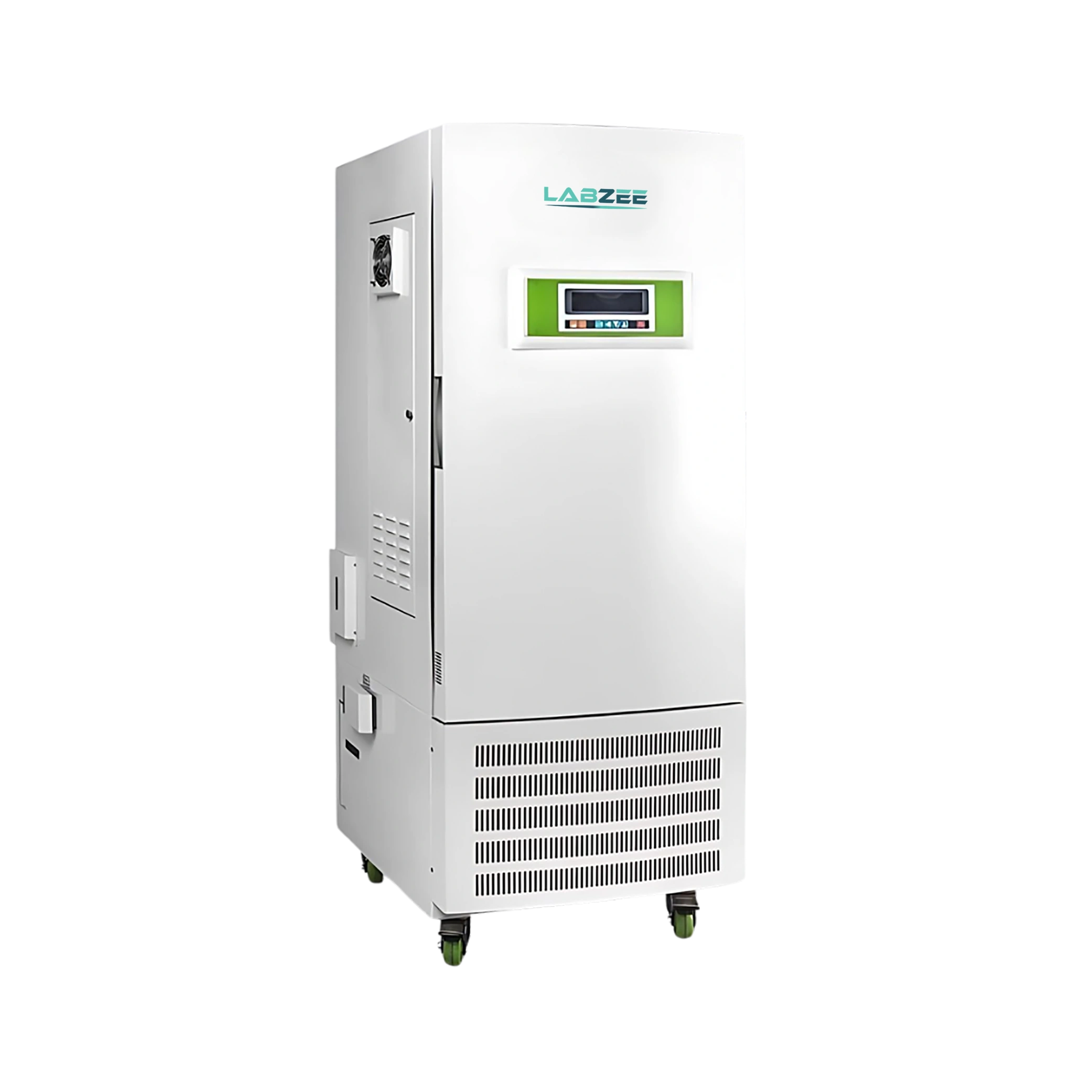

Labzee Light Growth Chamber BZGG-507 is a precision-controlled chamber offering a 275-liter capacity for reliable environmental simulation. Its temperature range spans from 0°C to 55°C, or 10°C to 55°C when lighting is active. The JAKEL circulation fan and custom air duct system ensure uniform airflow and stable internal conditions. Its touchscreen controller enables automated temperature and lighting cycles. Our Light Growth Chamber BZGG-507 is ideal for small-scale research in plant physiology and controlled light–temperature experiments.

Chamber Volume 275 L
Temperature Range With Light 10 to 55℃
Temperature Range Without Light 0 to 55℃
Temperature Stability ±1℃
Display Resolution 0.1℃
Temperature Uniformity ±1℃
Operating Temperature 0 to 40℃
White Light Intensity (LX) 0 to 20000LX (Step-less Dimming)
Other Lights Intensity (LX) 0 to 5000LX (Step-less Dimming)
Power Supply AC 220V, 50Hz
Chamber Size (W×D×H) 58×51×94 cm
Exterior Size (W×D×H) 77×74×171 cm
  • High-Contrast LCD Screen
  • Dual-Access Chamber Doors
  • Multi-Segment Program Control
  • Twin Adjustable LED Panels
  • Audible-Visual Fault Indicator
  • Corrosion-Resistant Steel Interior

3 Grids (Expandable to 16)

Labzee Light Growth Chamber BZGG-507 is ideal for seed germination, plant tissue culture, photoperiod studies, and other botanical research requiring precise control of temperature and lighting conditions.

captcha

Frequently Asked Questions

1: Can the lighting intensity be programmed in timed intervals to simulate day/night cycles?

Yes, Light Growth Chamber BZGG-507 supports multi-segment programming via the touchscreen controller, allowing users to define precise lighting intervals, intensity levels, and transitions to mimic natural photoperiods.

2: How does the dual refrigeration system enhance reliability during continuous operation?

The chamber features two independent refrigeration units that alternate automatically, reducing load stress and preventing system failure during extended use. This ensures temperature stability over long durations, even in high-humidity or high-light conditions.

3: Does the system compensate for internal heat generated by the LED lights?

Yes, the cooling system is optimized to offset heat generated by internal lighting, maintaining consistent temperature control even under maximum light intensity (20000?LX).

4: Can this chamber simulate fluctuating environmental conditions (e.g., diurnal cycles or stress tests)?

Absolutely. The controller supports multi-step programming for both temperature and lighting, enabling simulation of real-world environmental patterns, such as heat stress cycles or light deprivation studies.

5: What light wavelengths are supported beyond white light?

In addition to white light, the BZGG-507 supports custom secondary light channels (up to 5000?LX) which can include red, blue, or far-red LEDs, depending on configuration

6: What redundancy is built into the heating system?

The BZGG-507 includes a backup mechanical thermostat which activates if the primary electronic control system fails, ensuring uninterrupted heating and safety.

7: What is a Light Growth Chamber used for?

A Light Growth Chamber is used for controlled cultivation of plants, seed germination, and environmental testing under specific temperature, humidity, and light conditions.

8: What temperature range does the chamber support?

Labzee Light Growth Chamber offer a temperature range of 0°C to 55°C, with lighting active typically supporting 10°C to 55°C.

9: How do the chambers ensure continuous operation without failure?

Light Growth Chambers feature two independent refrigeration systems that alternate automatically, ensuring uninterrupted, long-term operation without failure.

10: Are the compressors environmentally friendly?

Yes, Light Growth Chambers are equipped with international brand fluorine-free compressors that are both eco-friendly and reliable.

11: How accurate is the humidity control in these chambers?

Light Growth Chambers include high-precision humidity sensors from trusted international brands, offering accurate and consistent humidity regulation.

12: How do the humidification systems work?

Light Growth Chambers are equipped with external water tanks and electric heater-based humidification systems for efficient and reliable humidity control.

13: Do the chambers have adjustable lighting?

Yes, they feature two LED light boards with stepless dimming, allowing users to adjust light intensity based on specific application needs.

14: How are faults or errors communicated to users?

If a chamber encounters a fault, a clear error message appears on the LCD screen, making it easy to identify and resolve operational issues.

15: How is temperature stability maintained inside the chambers?

Each chamber includes a JAKEL circulation fan and a uniquely designed air duct system to ensure uniform temperature distribution and stability.

16: Can users record or export data from the chambers?

Yes, Light Growth Chambers are equipped with USB ports for easy data logging and exporting of operational records for documentation or analysis.
