Light Growth Chamber BZGG-506
Product1
Product2
Product3

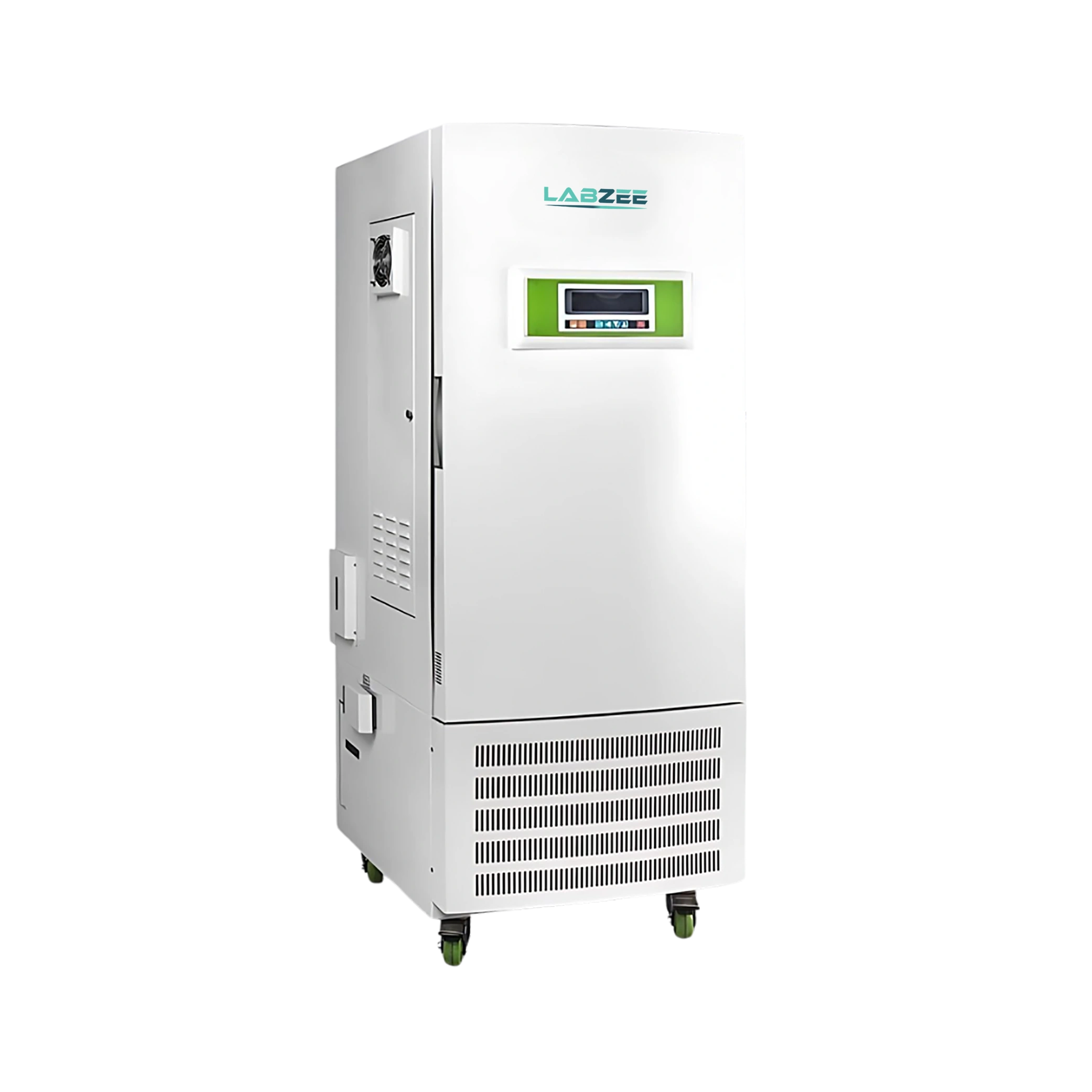

Light Growth Chamber BZGG-506

Labzee Light Growth Chamber BZGG-506 is a compact, high-precision environmental chamber with a temperature range from 0°C to 55°C. Its temperature stability and uniformity are maintained within ±1°C, ensuring consistent experimental conditions. The intuitive LCD touchscreen allows multi-segment programming of temperature and lighting cycles. Its dual refrigeration system operates in alternating mode to ensure continuous, failure-free performance. Our Light Growth Chamber BZGG-506 is ideal for small-scale research in plant physiology and controlled light-temperature experiments.

Chamber Volume 175 L
Temperature Range With Light 10 to 55℃
Temperature Range Without Light 0 to 55℃
Temperature Stability ±1℃
Display Resolution 0.1℃
Temperature Uniformity ±1℃
Operating Temperature 0 to 40℃
White Light Intensity (LX) 0 to 20000LX (Step-less Dimming)
Other Lights Intensity (LX) 0 to 5000LX (Step-less Dimming)
Power Supply AC 220V, 50Hz
Chamber Size (W×D×H) 45×42×93 cm
Exterior Size (W×D×H) 65×73×175 cm
  • Step-less LED Light Control
  • Precision Timing Control System
  • Dual Auto-Switch Cooling
  • Real-Time Fault Display
  • Dual LED Light Panels
  • JAKEL Airflow Circulation Fan

3 Grids (Expandable to 16)

Labzee Light Growth Chamber BZGG-506 is ideal for seed germination, plant tissue culture, photoperiod studies, and other botanical research requiring precise control of temperature and lighting conditions.

captcha

Frequently Asked Questions

1: Can the chamber run customized growth cycles?

Absolutely. Light Growth Chamber BZGG-506 supports programmable multi-segment timing for both light and temperature control through a large, easy-to-use LCD screen.

2: What happens if there’s a power outage?

Light Growth Chamber BZGG-506 automatically saves all current settings and resumes operation from the last point once power is restored.

3: How are equipment errors indicated?

The LCD screen displays fault messages clearly, allowing users to identify and troubleshoot issues quickly.

4: What safety systems are built into the unit?

It includes over-temperature, compressor overcurrent, heater overheat, and over-compression protections, along with a visual/audible alarm system. A backup mechanical thermostat ensures heating continues even if the main system fails.

5: What is the chamber’s interior design like?

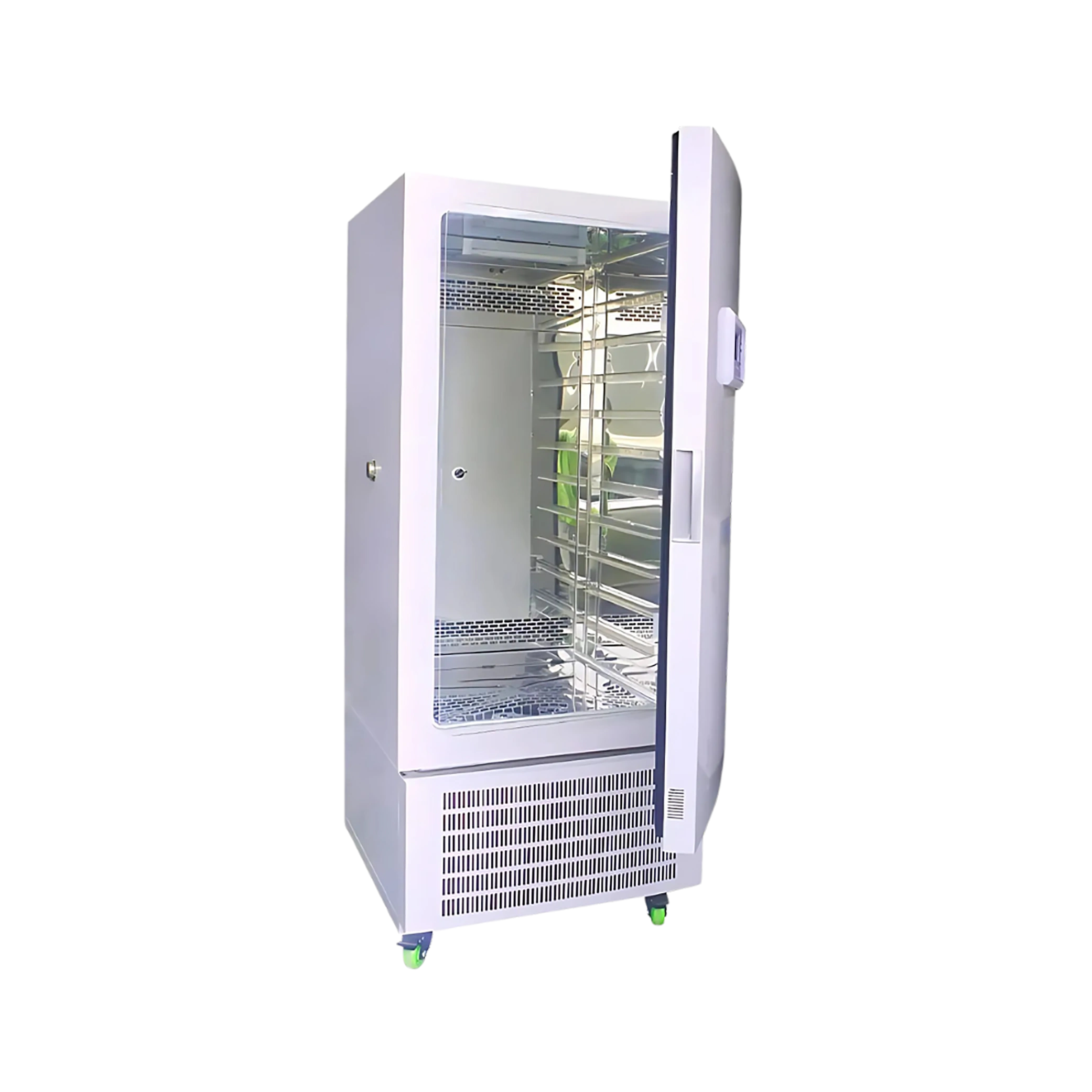

Light Growth Chamber BZGG-506 has a polished stainless-steel chamber with adjustable shelves for flexibility and easy cleaning. The external housing is powder-coated steel for added durability.

6: Is there a way to monitor without opening the door?

Yes, it has a double-door design—an inner tempered glass door for observation and an outer door with a magnetic seal for insulation.

7: Are lighting options customizable?

Yes, you can choose from various LED light boards—white, blue, red, yellow, or plant-growth optimized—to suit your experiment needs.

8: What is a Light Growth Chamber used for?

A Light Growth Chamber is used for controlled cultivation of plants, seed germination, and environmental testing under specific temperature, humidity, and light conditions.

9: What temperature range does the chamber support?

Labzee Light Growth Chamber offer a temperature range of 0°C to 55°C, with lighting active typically supporting 10°C to 55°C.

10: How do the chambers ensure continuous operation without failure?

Light Growth Chambers feature two independent refrigeration systems that alternate automatically, ensuring uninterrupted, long-term operation without failure.

11: Are the compressors environmentally friendly?

Yes, Light Growth Chambers are equipped with international brand fluorine-free compressors that are both eco-friendly and reliable.

12: How accurate is the humidity control in these chambers?

Light Growth Chambers include high-precision humidity sensors from trusted international brands, offering accurate and consistent humidity regulation.

13: How do the humidification systems work?

Light Growth Chambers are equipped with external water tanks and electric heater-based humidification systems for efficient and reliable humidity control.

14: Do the chambers have adjustable lighting?

Yes, they feature two LED light boards with stepless dimming, allowing users to adjust light intensity based on specific application needs.

15: How are faults or errors communicated to users?

If a chamber encounters a fault, a clear error message appears on the LCD screen, making it easy to identify and resolve operational issues.

16: How is temperature stability maintained inside the chambers?

Each chamber includes a JAKEL circulation fan and a uniquely designed air duct system to ensure uniform temperature distribution and stability.

17: Can users record or export data from the chambers?

Yes, Light Growth Chambers are equipped with USB ports for easy data logging and exporting of operational records for documentation or analysis.
