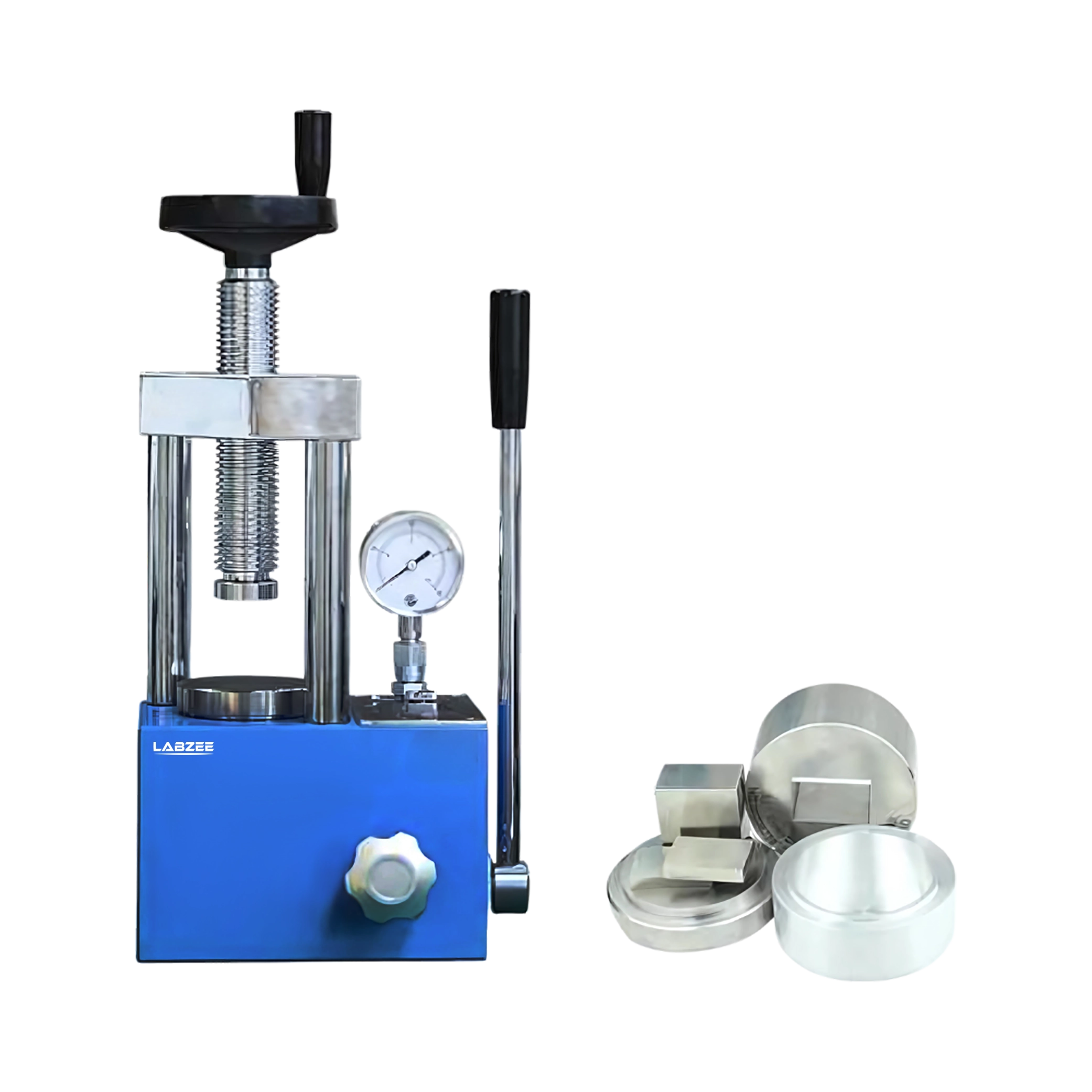

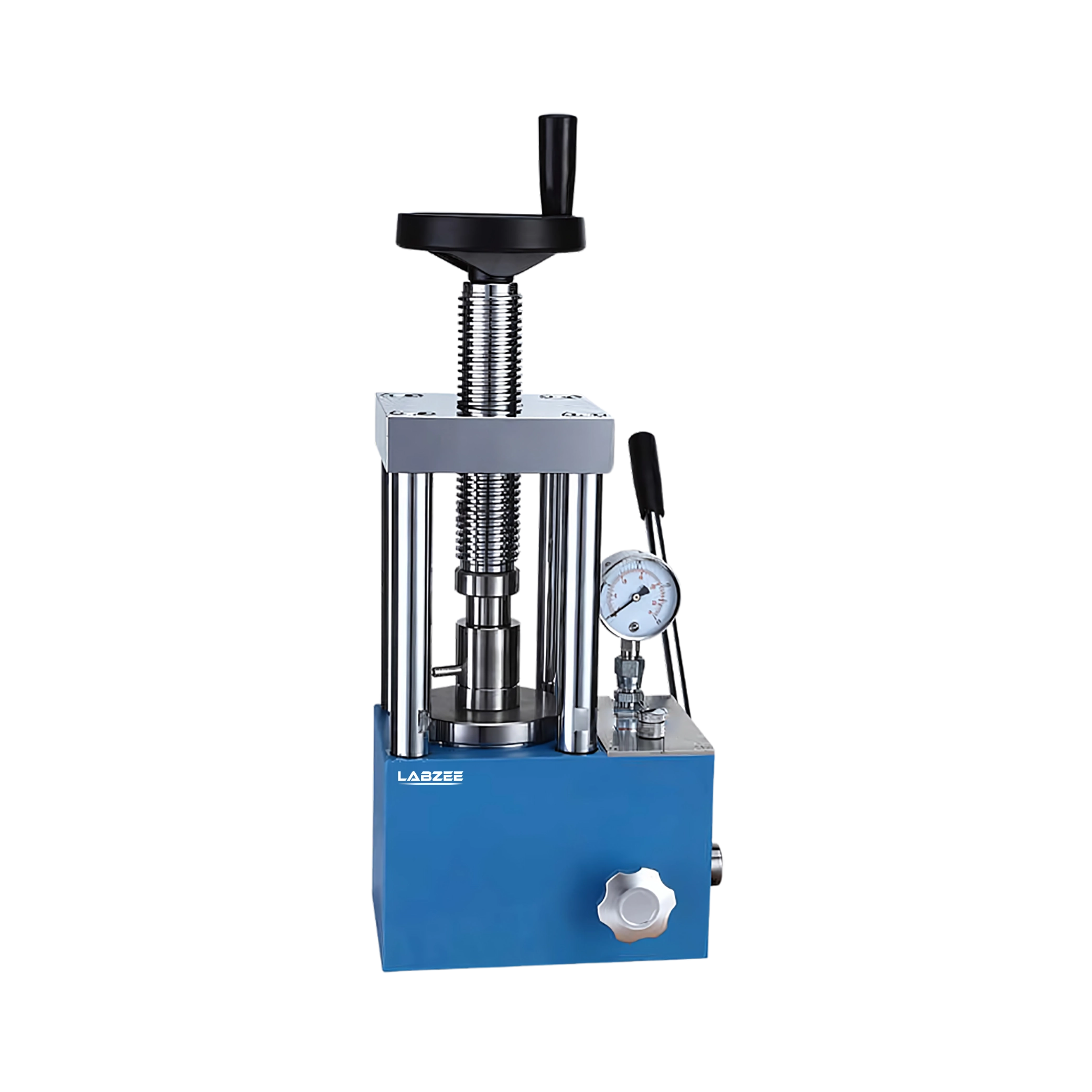

Manual Tablet Press BZTP-504 is a sturdy and compact press machine ideal for precision sample compaction in laboratory settings. This Manual Tablet Press operates at a pressure range up to 24 tons, featuring a Φ95 mm piston and a Φ105 mm working table. It ensures stable performance through a four-column design and intuitive pressure display for controlled manual operation. It offers ease of use, smooth press control, and reliable pressure delivery for repeatable results. Our Manual Tablet Press BZTP-504 is built for shaping samples in pharmaceutical compounding, catalyst evaluation, battery material development, ceramic disc forming, and forensic labs.
| Pressure Range | 0-24T (0-34 MPa) |
| Piston Diameter | Φ95 mm |
| Pressure Gauge | Pressure intensity display |
| Piston Distance | 30 mm |
| Pressure Stability | ≤1 MPa/10 min |
| No. of Columns | 4 |
| Column Spacing | 80 × 150 mm |
| Working Table Diameter | Φ105 mm |
| Power Supply | AC 220V 50/60 Hz |
| Product Dimension | 245 × 175 × 415 mm |
| Net Weight | 42 Kg |
Our Manual Tablet Press BZTP-504 is ideal for producing compacted samples in catalyst studies, pharmaceutical research, ceramic prototyping, and materials testing labs. It supports consistent shaping of powder into tablets, discs, and pellets. This unit is perfect for controlled, small-scale laboratory applications.
Frequently Asked Questions
1: Is it suitable for educational or training labs?
Yes, its simple design and hands-on control make it perfect for teaching tablet manufacturing processes.
2: Is the machine noisy during operation?
No, it operates quietly since it doesn’t use motors or electrical components.
3: Can one person operate it?
Yes, it is designed for easy, single-person operation using manual force.
4: Does it support irregular tablet shapes?
Yes, custom molds can be used if the design fits within the press's column spacing and pressure range.
5: Can you use it for pressing samples?
Yes, it’s ideal for pressing small samples for R&D or quality testing.
6: What is a Manual Tablet Press used for?
Manual Tablet Press is used to compress powders into tablets in various industries, including pharmaceuticals, chemicals, and research.
7: Can you adjust the pressure in a Manual Tablet Press?
Yes, you can adjust the pressure up to the rated tonnage depending on the machine’s configuration to match different pressing needs.
8: What materials can be pressed into tablets?
You can press dry powders, granules, and some mixed formulations, provided the material flows and compresses well.
9: Is it suitable for small-scale production?
Yes, Manual Tablet Press is ideal for laboratory, trial, and low-volume production where precision and flexibility are required.
10: How does the dual scale display help during operation?
The dual scale display lets you monitor pressure accurately, helping you maintain control over tablet consistency.
