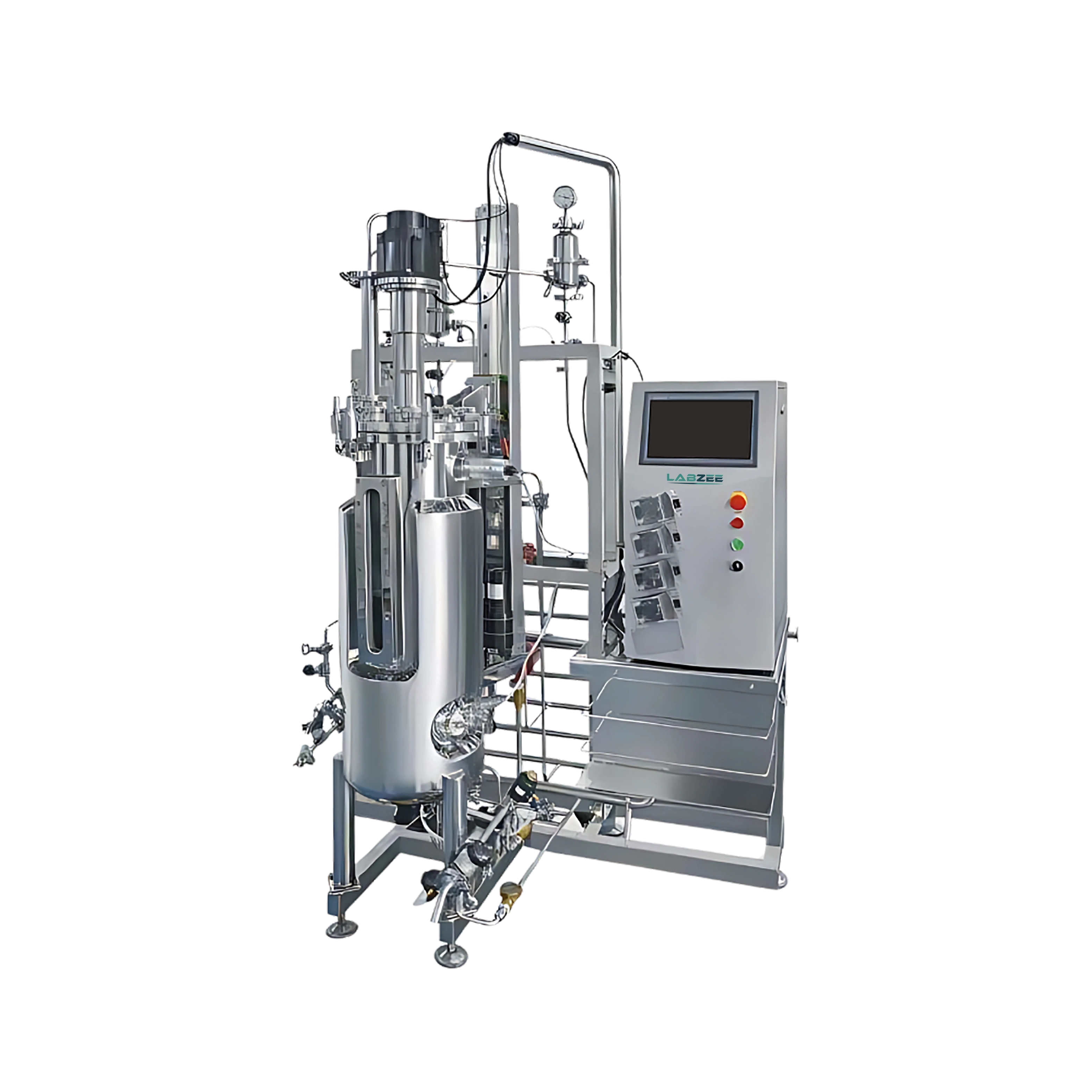

Labzee Stainless Steel Bioreactor BZLB-508 is a 500L GMP-grade system built for commercial-scale fermentation and high-volume biologics production. Its fully integrated control platform and robust stainless-steel design ensure reliable operation for long-duration processes. The system is engineered for CIP/SIP, automated data logging, and real-time parameter control. Our Stainless Steel Bioreactor BZLB-508 is ideal for large-batch drug manufacturing, vaccine scale-up, and industrial biosynthesis.
| Volume | 500L |
| Stir Speed | 50 to 1000rpm |
| Stirring Mechanism | Mechanical Agitation with Top-Drive Motor |
| PH Range | 2.00 to 12.00 ±0.1 |
| DO Range | 0 to 150% ±3% |
| Power Supply | AC 220V, 50Hz |
| Package Size (W×D×H) | 210 cm × 160 cm × 250 cm |
| Net Weight | 600 Kg |
| Gross Weight | 720 Kg |
O2 Bypass Inlet with Rotameter
CO2 Bypass Inlet with Rotameter
N2 Bypass Inlet with Rotameter
Auto Gas Inlet System
Load Cell
Remote Control Computer with Software
OD Sensor
Biomass Sensor
CO2 Sensor
ORP Sensor
Glucose Online Analyser
Valves & Pipes
Manual Gas Control System
Agitation Control System
Ph Sensor
DO Sensor
Temperature Sensor
Foam Sensor
10" Touch Screen
Peristaltic Pumps × 4 Pieces
Labzee Stainless Steel Bioreactor BZLB-508 is ideal for large-scale fermentation, cGMP pharmaceutical manufacturing, industrial biotech production, and continuous process biomanufacturing.
Frequently Asked Questions
1: What is the working volume of the Stainless Steel Bioreactor BZLB-508?
The model supports a 500L total volume for high-volume bioprocessing.
2: Is it suitable for commercial production?
Yes, it is purpose-built for GMP-aligned commercial-scale manufacturing.
3: Does it support continuous bioprocessing?
Yes, the Stainless Steel Bioreactor BZLB-508 is designed for both batch and continuous workflows.
4: What automation capabilities are included?
It supports full SCADA integration, real-time data logging, and process alarms.
5: What industries use this size?
It is widely used in pharmaceuticals, vaccines, industrial enzymes, and contract production.
6: What’s the vessel material and finish?
It is constructed from 316L stainless steel with an internal Ra greater than or equal to 0.4 micrometer finish.
7: What volume capacities are available in Labzee Stainless Steel Bioreactors?
Labzee Stainless Steel Bioreactors are available in models from 5L to 400000L.
8: What automation and control features are standard?
ll models include Siemens PLC (PLC1200), 10" touchscreen interface, and integrated sensors for pH, DO, temperature and foam. Larger models support full auto-control of agitation and antifoam.
9: Are there optional upgrades for advanced monitoring?
Yes, optional accessories include Remote Control Computer with Software, Auto Gas Inlet System, OD Sensor, Biomass Sensor, CO2 Sensor, ORP Sensor, Glucose Online Analyser, and bypass systems for O2, CO2, and N2.
10: Can these systems be used in GMP environments?
Yes, Labzee Stainless Steel Bioreactors are designed to support GMP-grade operations and are compliant with process validation needs.
11: What industries commonly use stainless steel bioreactors?
These systems are used in biopharmaceutical production, vaccine development, industrial enzyme synthesis and contract manufacturing facilities.
12: Is remote monitoring or SCADA integration possible?
Yes, remote control via PC and full SCADA system integration is available for process automation and data logging.
