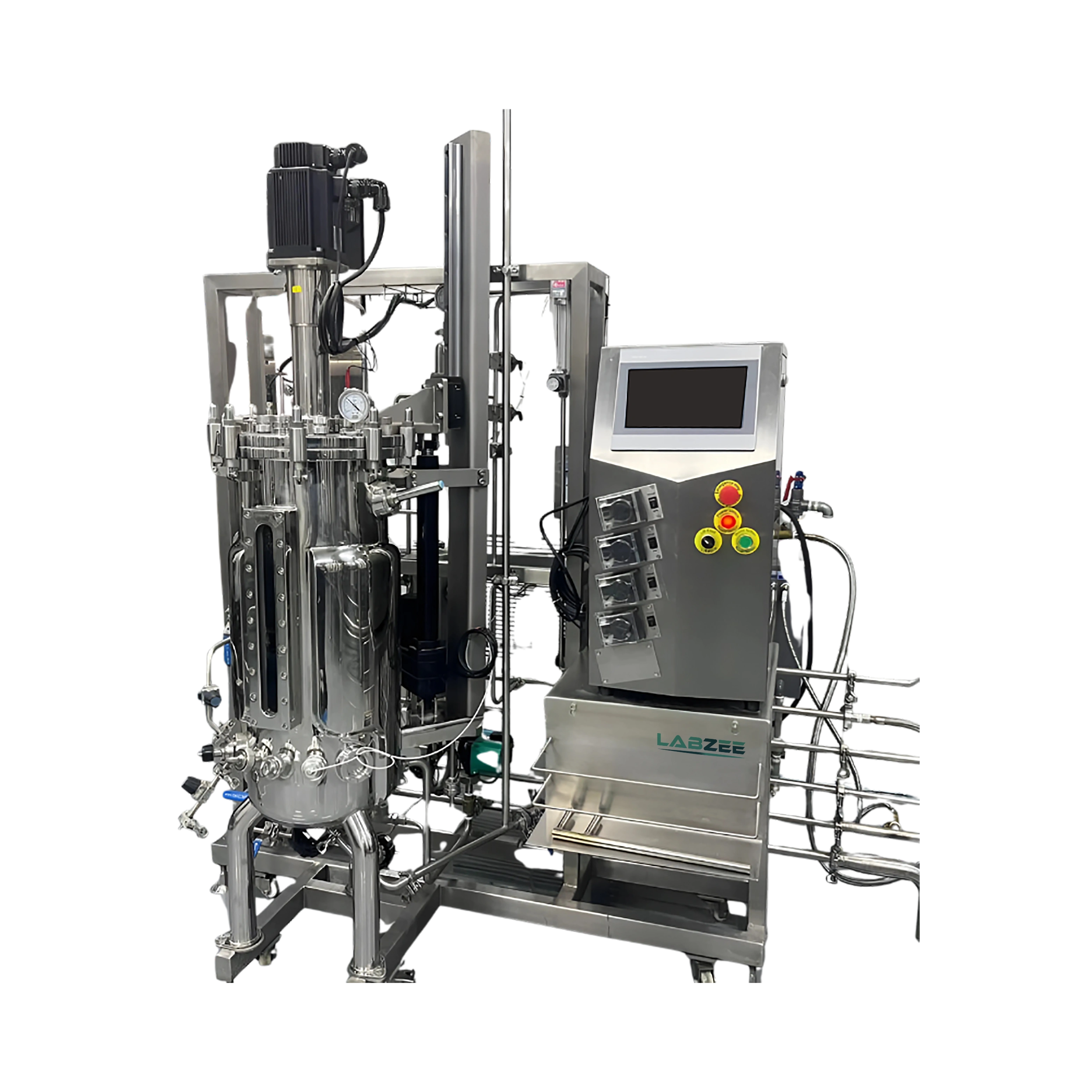

Labzee Stainless Steel Bioreactor BZLB-514 is an 8000L high-volume fermentation unit engineered for regulated large-scale production. The Stainless Steel Bioreactor BZLB-514 features robust structural support, automated thermal regulation, and mechanical agitation with broad RPM control. It integrates easily with SCADA platforms, offering real-time monitoring and traceability. Our Stainless Steel Bioreactor BZLB-514 is ideal for biologics manufacturing, enzyme production, and contract-scale pharmaceutical fermentation.
| Volume | 8000L |
| Stir Speed | 50 to 1000rpm |
| Stirring Mechanism | Mechanical Agitation with Top-Drive Motor |
| PH Range | 2.00 to 12.00 ±0.1 |
| DO Range | 0 to 150% ±3% |
| Power Supply | AC 220V, 50Hz |
| Package Size (W×D×H) | 440 cm × 300 cm × 470 cm |
| Net Weight | 3300 Kg |
| Gross Weight | 4000 Kg |
Remote Control Computer with Software
OD Sensor
Biomass Sensor
CO2 Sensor
ORP Sensor
Glucose Online Analyzer
Valves & Pipes
Manual Gas Control System
Agitation Control System
Ph Sensor
DO Sensor
Temperature Sensor
Foam Sensor
10" Touch Screen
Peristaltic Pumps × 4 Pieces
Labzee Stainless Steel Bioreactor BZLB-514 is ideal for continuous fermentation, batch biologics production, and commercial-scale biosynthesis in pharmaceutical and bioindustrial plants.
Frequently Asked Questions
1: What is the total volume of the Stainless Steel Bioreactor BZLB-514?
The vessel supports 8000L, optimized for industrial fermentation and manufacturing.
2: What is the stirring range of the Stainless Steel Bioreactor BZLB-514?
The top-mounted agitator operates from 50 to 1000 rpm for flexible control.
3: Is the Stainless Steel Bioreactor BZLB-514 SCADA compatible?
Yes, it fully supports SCADA integration for automated monitoring and process control.
4: Which industries use the Stainless Steel Bioreactor BZLB-514?
It is used in pharma, enzyme manufacturing, biofuels, and vaccine production.
5: Does it support continuous fermentation?
Yes, the Stainless Steel Bioreactor BZLB-514 handles batch, fed-batch, and continuous workflows.
6: Is the vessel suitable for GMP-compliant workflows?
Yes, its sanitary ports, CIP/SIP design, and automation readiness meet GMP standards.
7: What volume capacities are available in Labzee Stainless Steel Bioreactors?
Labzee Stainless Steel Bioreactors are available in models from 5L to 400000L.
8: What automation and control features are standard?
ll models include Siemens PLC (PLC1200), 10" touchscreen interface, and integrated sensors for pH, DO, temperature and foam. Larger models support full auto-control of agitation and antifoam.
9: Are there optional upgrades for advanced monitoring?
Yes, optional accessories include Remote Control Computer with Software, Auto Gas Inlet System, OD Sensor, Biomass Sensor, CO2 Sensor, ORP Sensor, Glucose Online Analyser, and bypass systems for O2, CO2, and N2.
10: Can these systems be used in GMP environments?
Yes, Labzee Stainless Steel Bioreactors are designed to support GMP-grade operations and are compliant with process validation needs.
11: What industries commonly use stainless steel bioreactors?
These systems are used in biopharmaceutical production, vaccine development, industrial enzyme synthesis and contract manufacturing facilities.
12: Is remote monitoring or SCADA integration possible?
Yes, remote control via PC and full SCADA system integration is available for process automation and data logging.
