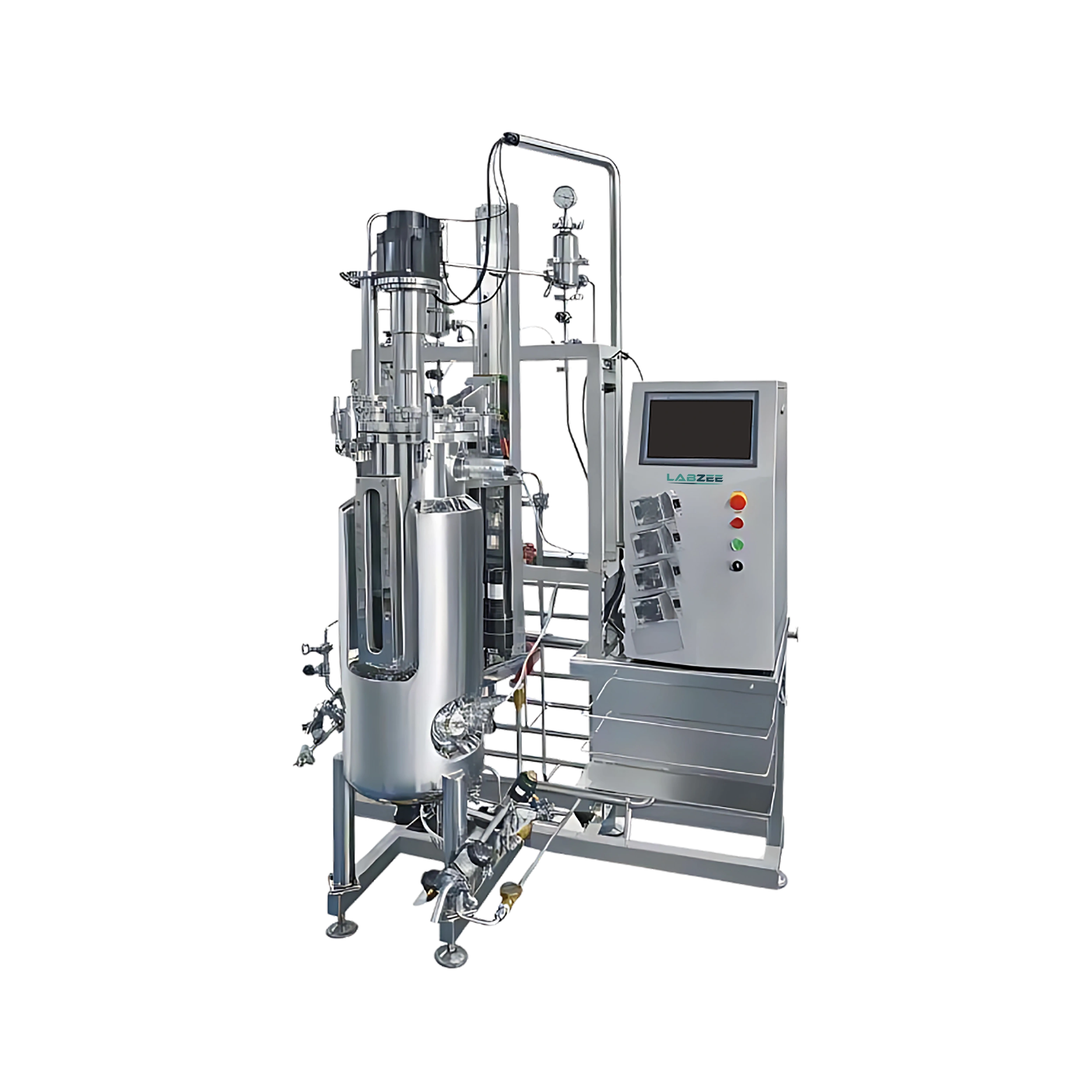

Labzee Stainless Steel Bioreactor BZLB-509 is a 1000L high-capacity fermenter engineered for continuous production and GMP biomanufacturing at industrial scale. The vessel supports advanced automation, online data tracking, and long-duration process stability. Its design meets international sanitary standards and integrates seamlessly with SCADA systems. Our Stainless Steel Bioreactor BZLB-509 is ideal for vaccine processing, biosimilar manufacturing, and commercial enzyme production.
| Volume | 1000L |
| Stir Speed | 50 to 1000rpm |
| Stirring Mechanism | Mechanical Agitation with Top-Drive Motor |
| PH Range | 2.00 to 12.00 ±0.1 |
| DO Range | 0 to 150% ±3% |
| Power Supply | AC 220V, 50Hz |
| Package Size (W×D×H) | 280 cm × 190 cm × 320 cm |
| Net Weight | 1100 Kg |
| Gross Weight | 1350 Kg |
Auto Gas Inlet System
Remote Control Computer with Software
OD Sensor
Biomass Sensor
CO2 Sensor
ORP Sensor
Glucose Online Analyser
Valves & Pipes
Manual Gas Control System
Agitation Control System
Ph Sensor
DO Sensor
Temperature Sensor
Foam Sensor
10" Touch Screen
Peristaltic Pumps × 4 Pieces
Labzee Stainless Steel Bioreactor BZLB-509 is ideal for commercial biologics manufacturing, vaccine scale-up, and industrial fermentation in pharmaceutical and biotech facilities.
Frequently Asked Questions
1: What is the capacity of the Stainless Steel Bioreactor BZLB-509?
The vessel holds 1000L, making it suitable for full-scale industrial fermentation.
2: What type of agitation is used?
It features a top-driven mechanical agitator with variable speed control.
3: Does the model support GMP production?
Yes, it’s compliant with GMP protocols and suitable for pharmaceutical manufacturing.
4: Can this bioreactor operate continuously?
Yes, it's optimized for continuous and fed-batch workflows.
5: What integration options are available?
The system is compatible with SCADA, remote data logging, and process alarms.
6: What kind of cleaning system is included?
It supports full clean-in-place (CIP) and steam-in-place (SIP) functionality.
7: What volume capacities are available in Labzee Stainless Steel Bioreactors?
Labzee Stainless Steel Bioreactors are available in models from 5L to 400000L.
8: What automation and control features are standard?
ll models include Siemens PLC (PLC1200), 10" touchscreen interface, and integrated sensors for pH, DO, temperature and foam. Larger models support full auto-control of agitation and antifoam.
9: Are there optional upgrades for advanced monitoring?
Yes, optional accessories include Remote Control Computer with Software, Auto Gas Inlet System, OD Sensor, Biomass Sensor, CO2 Sensor, ORP Sensor, Glucose Online Analyser, and bypass systems for O2, CO2, and N2.
10: Can these systems be used in GMP environments?
Yes, Labzee Stainless Steel Bioreactors are designed to support GMP-grade operations and are compliant with process validation needs.
11: What industries commonly use stainless steel bioreactors?
These systems are used in biopharmaceutical production, vaccine development, industrial enzyme synthesis and contract manufacturing facilities.
12: Is remote monitoring or SCADA integration possible?
Yes, remote control via PC and full SCADA system integration is available for process automation and data logging.
