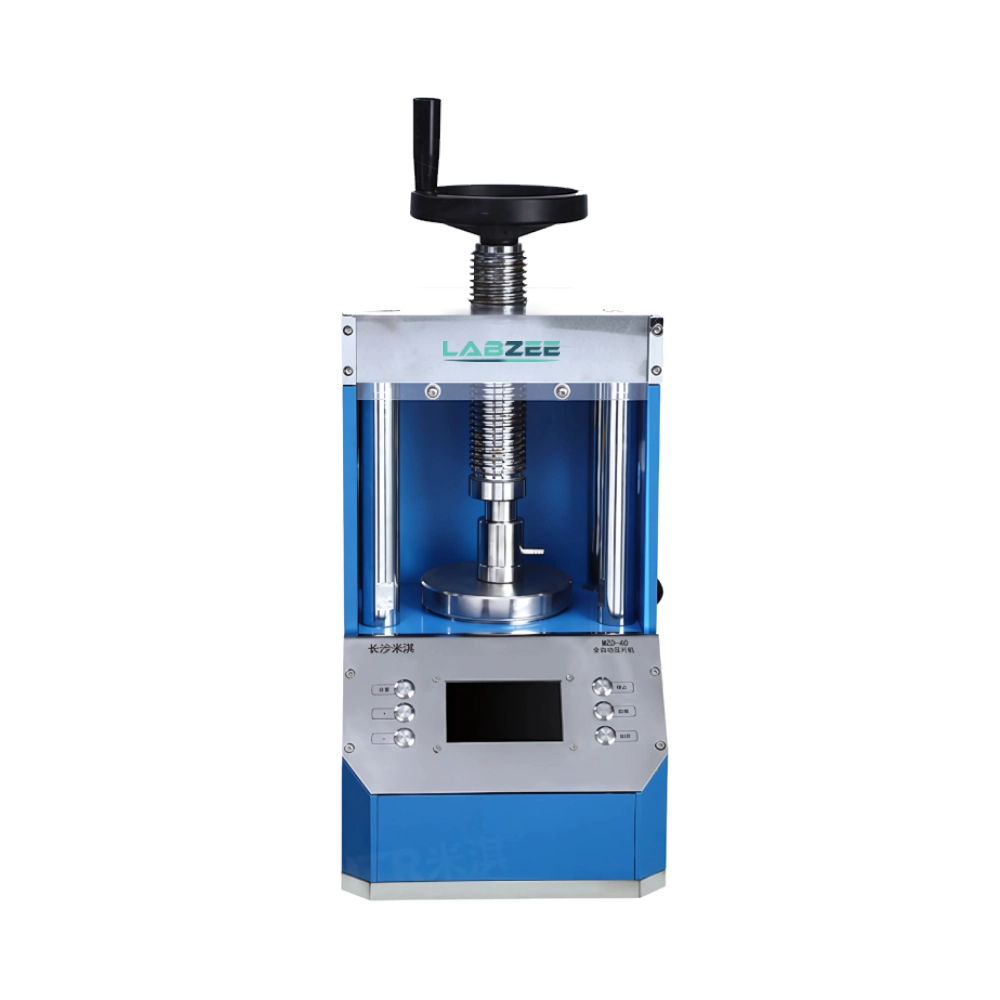

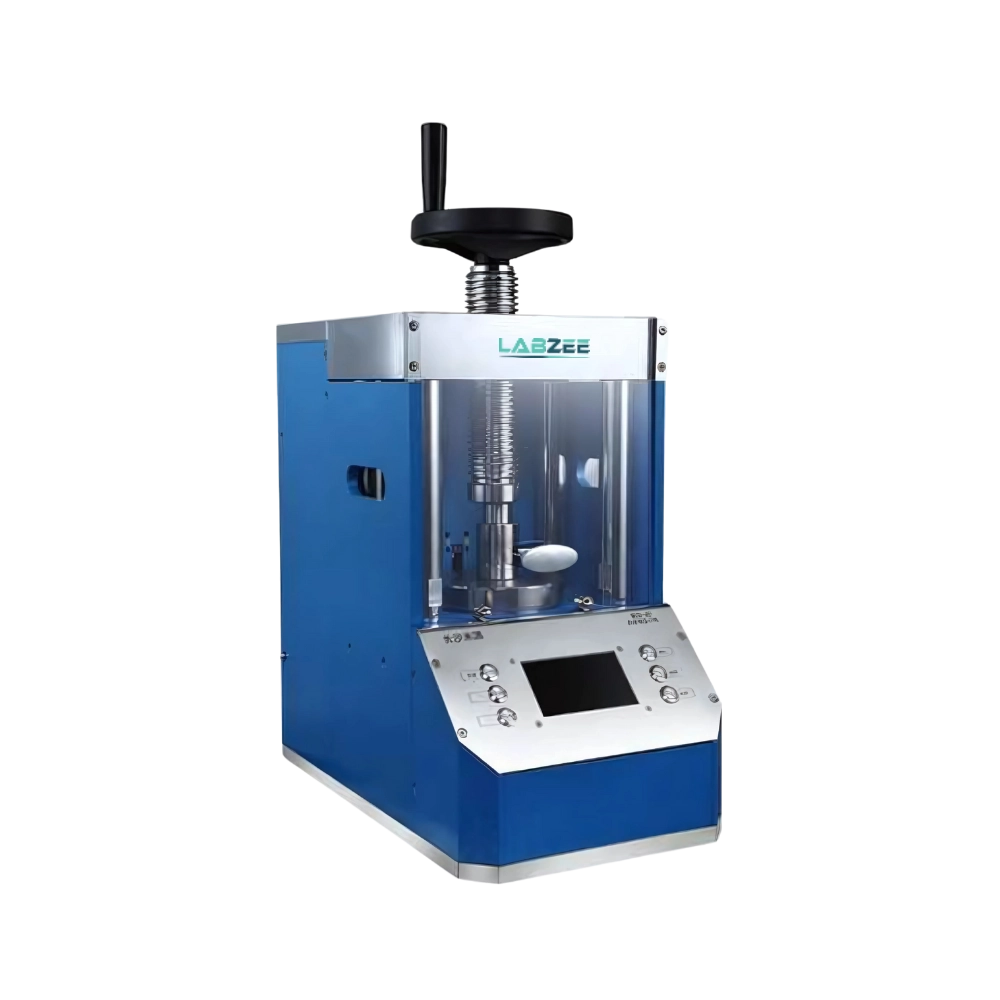

Automatic Tablet Press BZATP-504 is built for precise and high-pressure applications in material testing and formulation research. This Automatic Tablet Press supports a pressure range from 0.2 to 40.0 tons with a timed multi-step pressurization process and automatic mold pressure adjustment. It includes a 7-inch IPS HD touchscreen interface for advanced operational control and smooth workflow. It ensures stable compaction across extended cycles and integrates auto pressure relief at the limit for added safety. Our Automatic Tablet Press BZATP-504 is suited for tasks involving heavy-duty compaction and precision pellet formation.
| Pressure range | 0.2-40.0 tons |
| Pressure process | Timed Multi-Step Pressurization |
| Pressure holding time | 1 s to ∞ s |
| Pressure conversion | Auto Mold Pressure Adjustment |
| LCD display | 7-inch (IPS HD) touch screen |
| Limit switch | Auto Pressure Relief at Limit |
| Cylinder stroke | 50 mm |
| Spatial dimensions | 175 × 180 mm |
| Power Consumption | 550 W (Customizable) |
| Power Supply | AC 220V 50/60 Hz |
| Product Dimension | 280 × 460 × 550 mm |
| Net Weight | 150 Kg |
Our Automatic Tablet Press BZATP-504 is widely used for pressing metal and ceramic powders, producing dense composite pellets, and forming tablets for pharmaceutical and energy applications. It is suitable for compacting solid electrolytes, bio-ceramic scaffolds, magnetic compounds, and solid-state battery materials. This press also finds use in polymer research, catalyst development, and nanomaterial compaction.
Frequently Asked Questions
1: What is the average output capacity?
Output varies by model-from 10,000 to 300,000+ tablets per hour. Factors like the number of stations, turret speed, and tablet size affect capacity. Choose based on production needs and formulation characteristics.
2: What materials are used in construction?
Contact parts are usually made of stainless steel to meet GMP and hygiene standards. Outer frames may use coated steel or aluminum. High-quality materials ensure durability and prevent contamination.
3: Are machines GMP and FDA compliant?
Most industrial-grade tablet presses are designed to meet GMP and FDA standards. They include validated documentation, traceable parts, and sanitary construction. Always verify certifications before purchase.
4: How do I choose the right tablet press?
Consider production volume, tablet size and shape, material type, and compliance needs. Also factor in support, spare parts availability, and expandability. A trial run or demo can help finalize your decision.
5: What is the typical lead time for purchase?
Lead time ranges from 4 to 16 weeks depending on customization and supplier backlog. Imported machines may take longer. Early planning ensures timely delivery and setup.
6: What is an automatic tablet press?
An automatic tablet press is a mechanical device used to compress powder into tablets of uniform size, shape, and weight.
7: What are the main components of a tablet press?
Key components include the hopper, feeder, dies, punches, turret, compression rollers.
8: What industries use automatic tablet presses?
Pharmaceutical, nutraceutical, chemical, food, and cosmetics industries commonly use tablet presses.
9: How does an automatic tablet press work?
It feeds powder into a die, compresses it using punches, and ejects the formed tablet continuously.
10: What types of tablets can be produced?
It can produce round, oval, multi-layered, engraved, or custom-shaped tablets.
