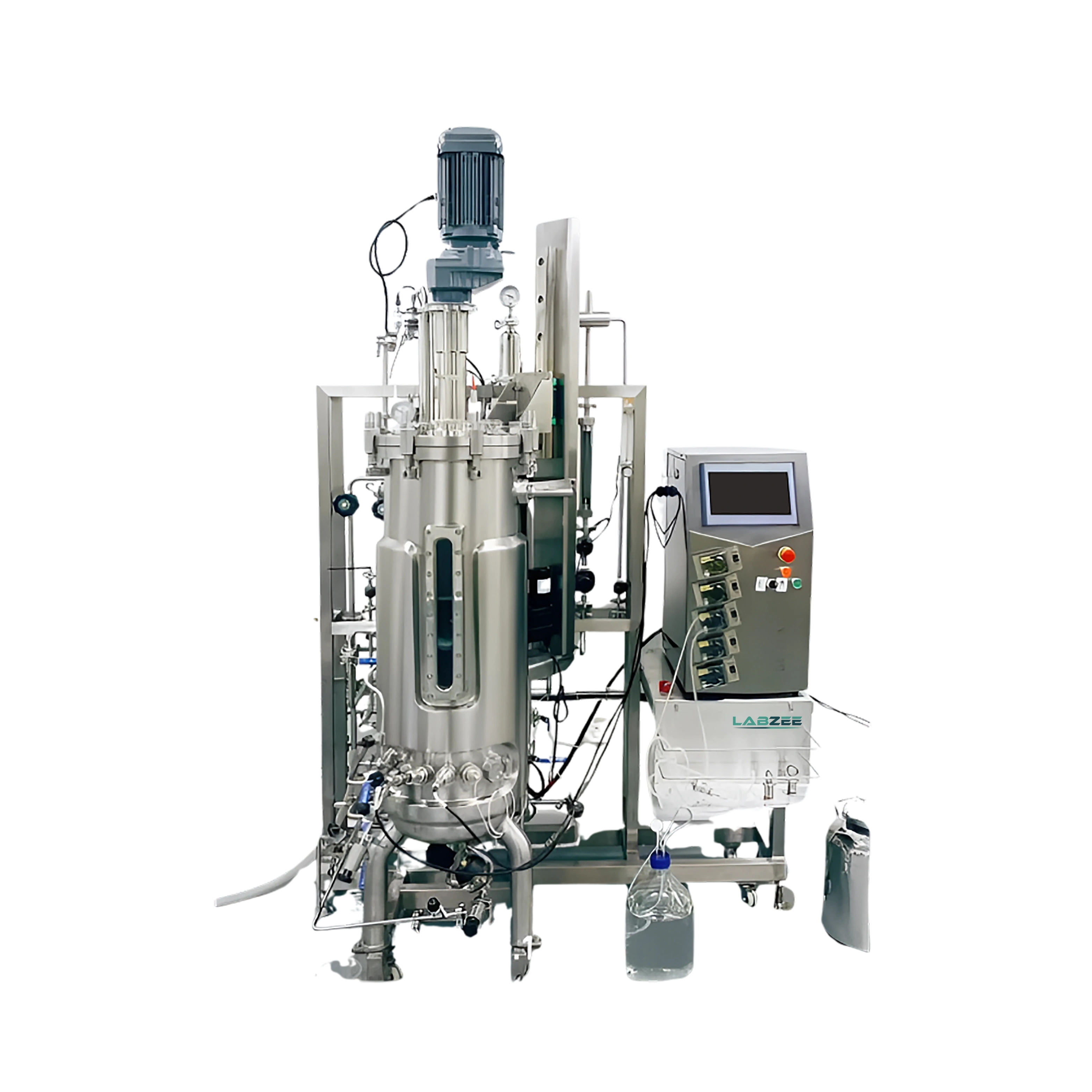

Labzee Stainless Steel Bioreactor BZLB-517 is a 20000L industrial fermenter built for high-volume commercial bioprocessing. The Stainless Steel Bioreactor BZLB-517 combines robust structural design with process automation, delivering precision control over pH, DO, temperature, and agitation. Its CIP/SIP capability and SCADA connectivity support continuous and batch production under GMP compliance. Our Stainless Steel Bioreactor BZLB-517 is ideal for biologics manufacturing, bulk enzyme synthesis, and vaccine production at industrial scale.
| Volume | 20000L |
| Stir Speed | 50 to 1000rpm |
| Stirring Mechanism | Mechanical Agitation with Top-Drive Motor |
| PH Range | 2.00 to 12.00 ±0.1 |
| DO Range | 0 to 150% ±3% |
| Power Supply | AC 220V, 50Hz |
| Package Size (W×D×H) | 560 cm × 370 cm × 580 cm |
| Net Weight | 5800 Kg |
| Gross Weight | 6800 Kg |
Remote Control Computer with Software
OD Sensor
Biomass Sensor
CO2 Sensor
ORP Sensor
Glucose Online Analyzer
Valves & Pipes
Manual Gas Control System
Agitation Control System
Ph Sensor
DO Sensor
Temperature Sensor
Foam Sensor
10" Touch Screen
Peristaltic Pumps × 4 Pieces
Labzee Stainless Steel Bioreactor BZLB-517 is ideal for industrial vaccine development, biosimilar production, and large-scale enzyme or microbial fermentation.
Frequently Asked Questions
1: What is the total working volume of the Stainless Steel Bioreactor BZLB-517?
The vessel holds 20,000L and is used in full-scale bioproduction.
2: Is the Stainless Steel Bioreactor BZLB-517 SCADA compatible?
Yes, it integrates with SCADA software for automated process monitoring and control.
3: Does it support CIP and SIP functions?
Yes, the system includes clean-in-place and steam-in-place compatibility.
4: What is the agitation speed range?
The Stainless Steel Bioreactor BZLB-517 operates at 50–1000 rpm with programmable settings.
5: Which industries use this system?
It’s used in pharma, CDMO, industrial enzyme production, and vaccine manufacturing.
6: Is this system designed for GMP environments?
Yes, its construction, control systems, and documentation tools meet GMP requirements.
7: What volume capacities are available in Labzee Stainless Steel Bioreactors?
Labzee Stainless Steel Bioreactors are available in models from 5L to 400000L.
8: What automation and control features are standard?
ll models include Siemens PLC (PLC1200), 10" touchscreen interface, and integrated sensors for pH, DO, temperature and foam. Larger models support full auto-control of agitation and antifoam.
9: Are there optional upgrades for advanced monitoring?
Yes, optional accessories include Remote Control Computer with Software, Auto Gas Inlet System, OD Sensor, Biomass Sensor, CO2 Sensor, ORP Sensor, Glucose Online Analyser, and bypass systems for O2, CO2, and N2.
10: Can these systems be used in GMP environments?
Yes, Labzee Stainless Steel Bioreactors are designed to support GMP-grade operations and are compliant with process validation needs.
11: What industries commonly use stainless steel bioreactors?
These systems are used in biopharmaceutical production, vaccine development, industrial enzyme synthesis and contract manufacturing facilities.
12: Is remote monitoring or SCADA integration possible?
Yes, remote control via PC and full SCADA system integration is available for process automation and data logging.
